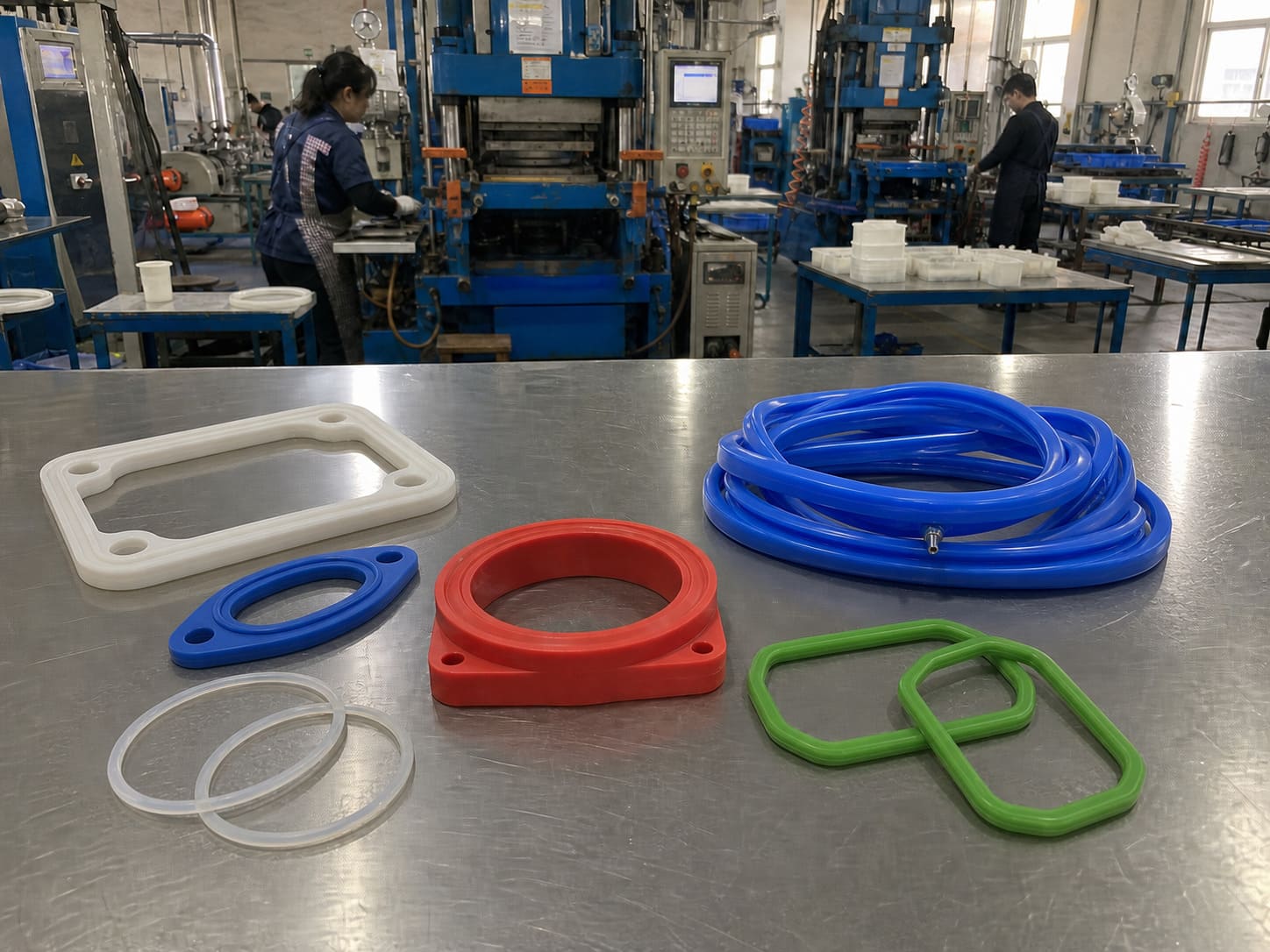

Custom Silicone Seals & Gaskets Manufacturer
Pandasoft manufactures custom silicone seals, gaskets, washers, sealing rings, and custom-shaped sealing parts from your drawings, samples, or dimensions.
We help review material, Shore A hardness, tolerance, and tooling before mass production, so your parts fit the groove, seal reliably, and stay consistent from sample to batch.
- Drawing, sample, or dimension-based customization
- Material and hardness review for your working conditions
- Tolerance, fit, and sealing performance control
- FDA, LFGB, REACH, and RoHS material options when required
When a Seal Does Not Fit,
the Whole Assembly Is at Risk
A custom silicone seal or gasket may look like a small component, but one small failure can affect installation, sealing performance, production schedules, and after-sales reliability.
Most sealing part problems come from four areas: dimensional deviation, sealing failure, material mismatch, and batch fluctuation.
Dimensional deviation causes poor fit
Even a small size difference can lead to loose fitting, compression gaps, difficult installation, or assembly interference.
Sealing failure creates performance risk
A seal may fit into place, but poor compression, unsuitable structure, or an uneven sealing surface can still cause leakage, dust ingress, moisture problems, or unstable protection.
Material mismatch shortens service life
If the silicone grade, hardness, temperature resistance, or contact compatibility does not match the working environment, the part may deform, age faster, or lose sealing performance.
Batch fluctuation breaks production consistency
An approved sample does not always guarantee stable mass production. Differences in molding, curing, trimming, or inspection control can lead to inconsistent dimensions, appearance, or sealing behavior.
Custom Silicone Sealing Parts for Different Assembly Needs
Pandasoft manufactures custom silicone seals and gaskets based on your drawing, sample, assembly space, or application requirements.
This category covers molded silicone sealing parts with different shapes, sizes, hardness levels, colors, and working conditions for industrial OEM projects.
Common Silicone Seal Types We Manufacture

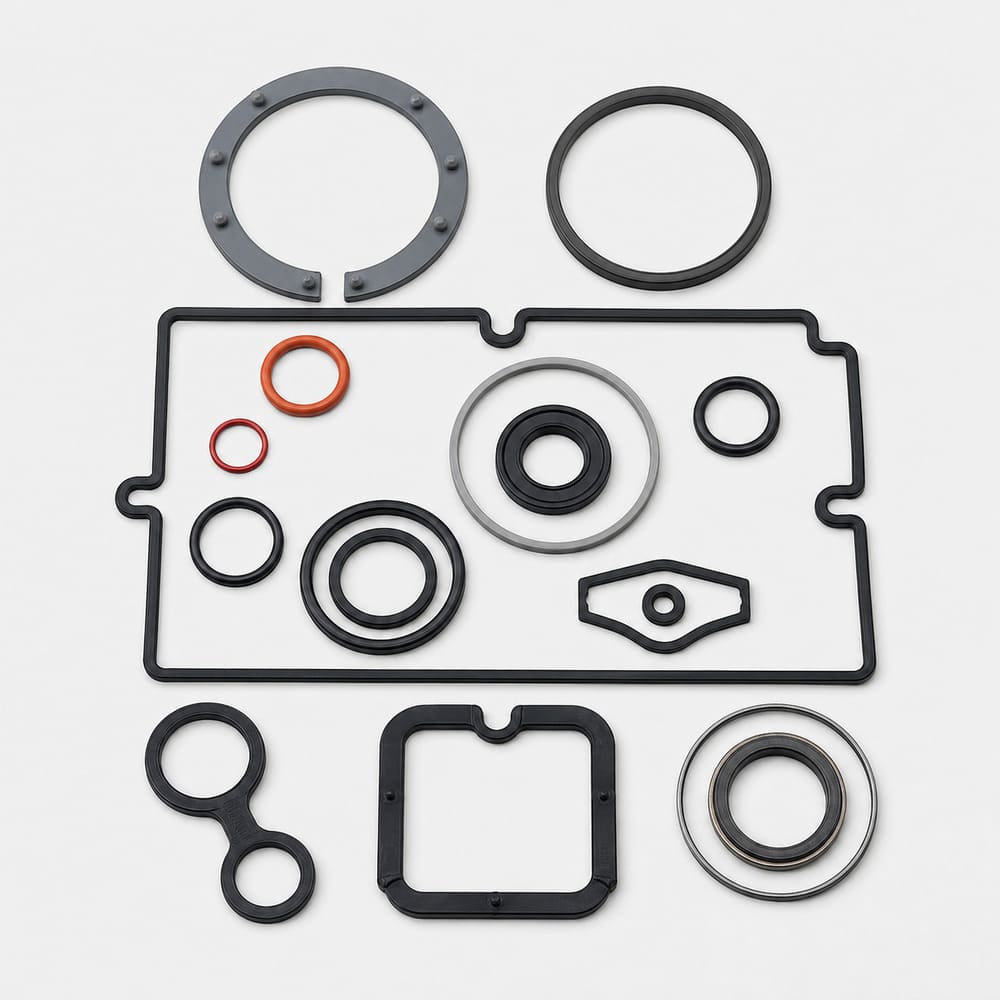

Custom-Shaped Silicone Seals
Non-standard shapes for grooves, holes, and limited assembly space. Molded to match your drawing, sample, or sealing structure.

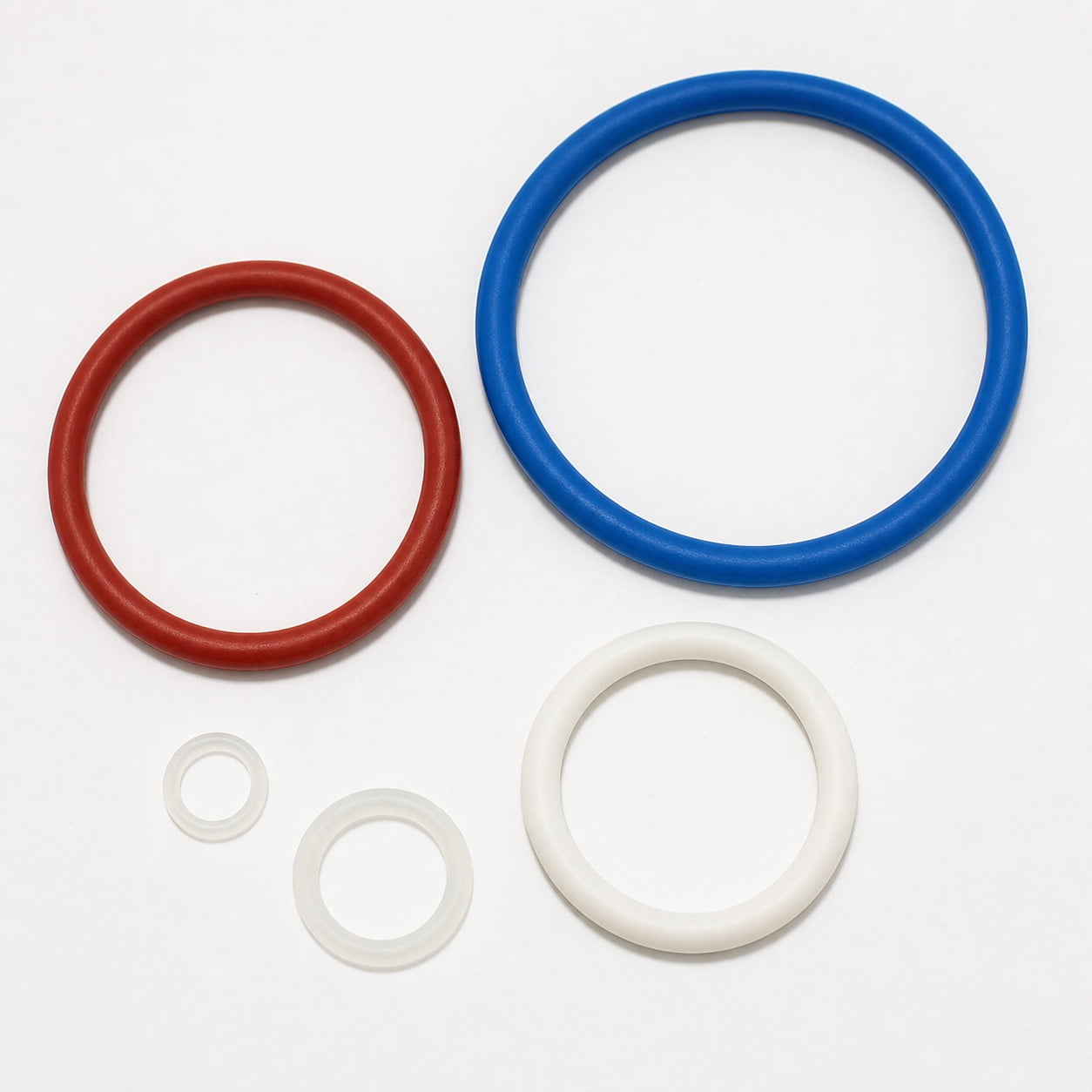

Silicone O-Ring Seals
Round compression seals for grooves, joints, valves, and equipment assemblies. Available in custom sizes, colors, and silicone grades.

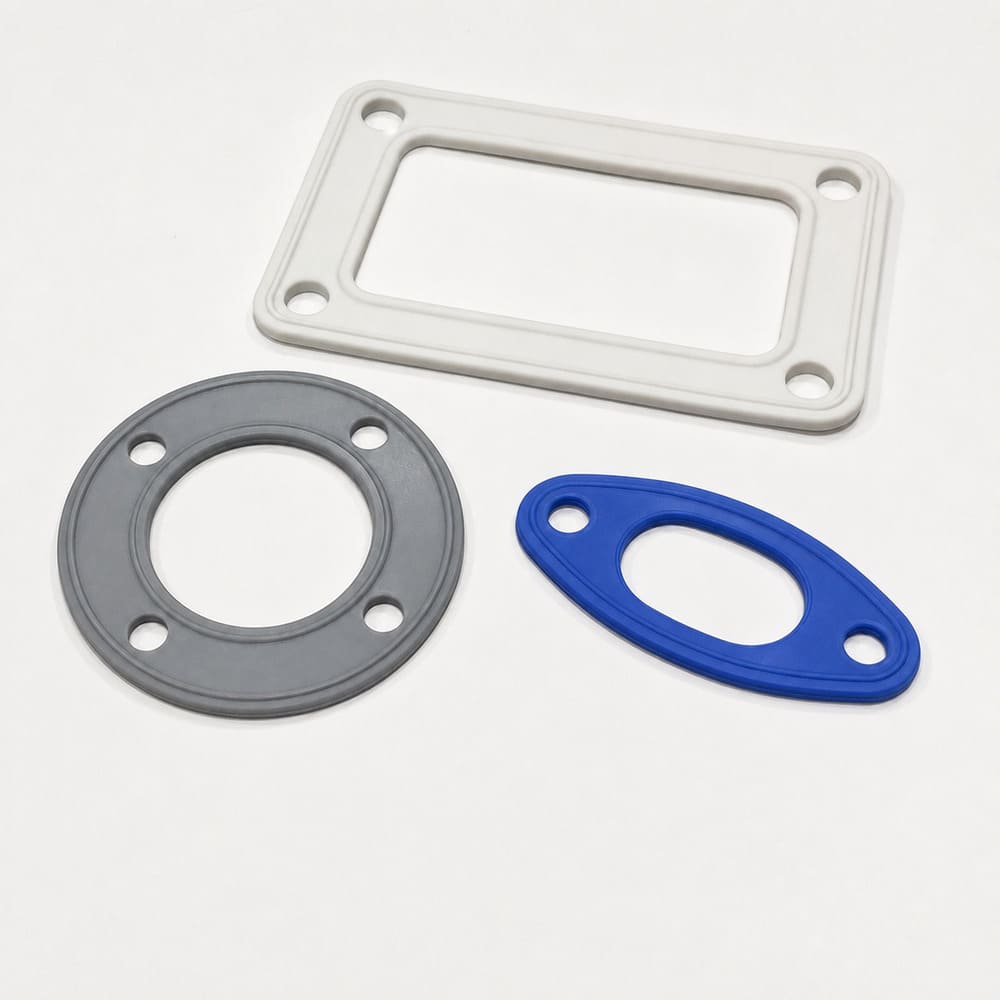

Silicone Seals with Holes
Pre-cut holes for screws, bolts, mounting points, or fluid openings. Built to seal and cushion without blocking assembly access.

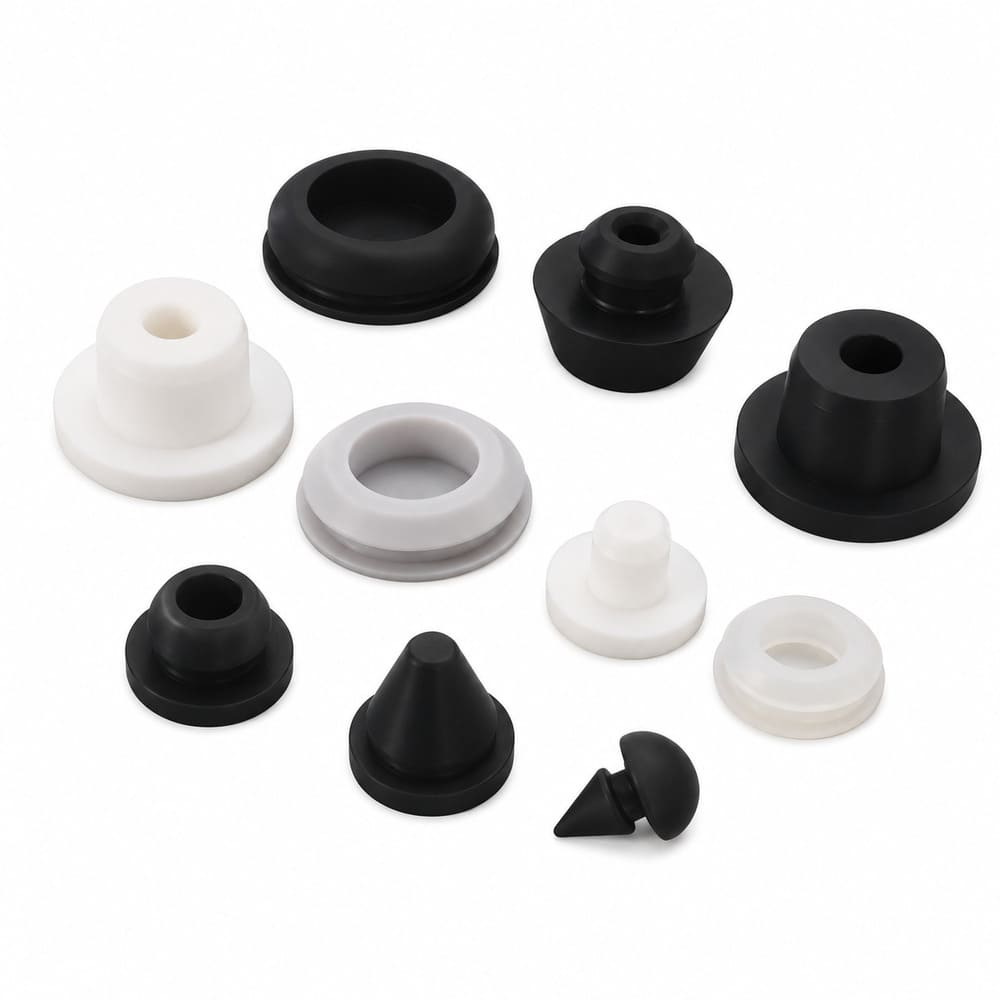

Silicone Cap Seals
Flexible caps for tube ends, bottle openings, pipes, and connectors. Helps protect against dust, moisture, leakage, and contamination.

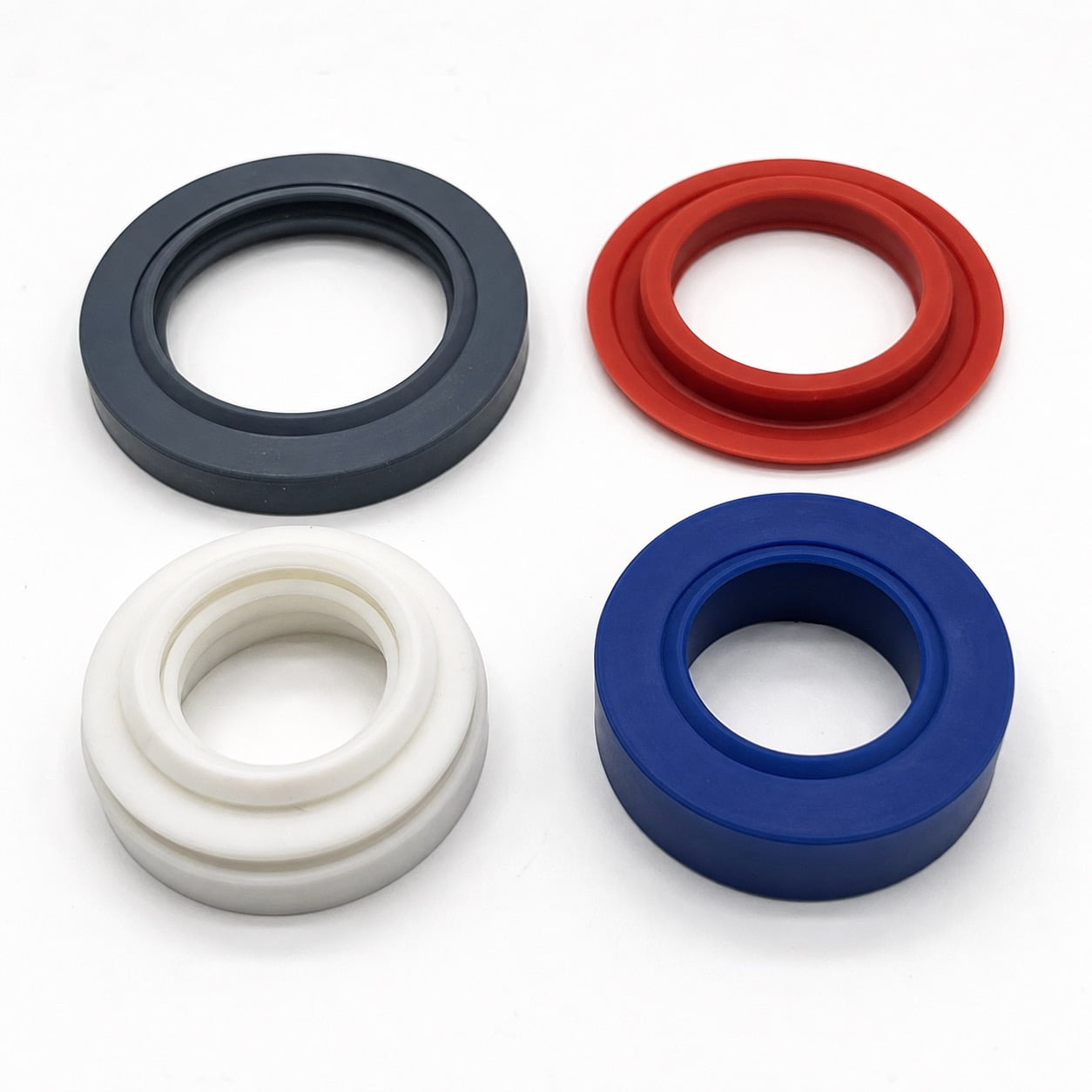

Silicone Bearing Seals
Sealing parts for bearing housings and rotating assemblies. Helps keep dust, water, oil, and small particles away from bearing areas.

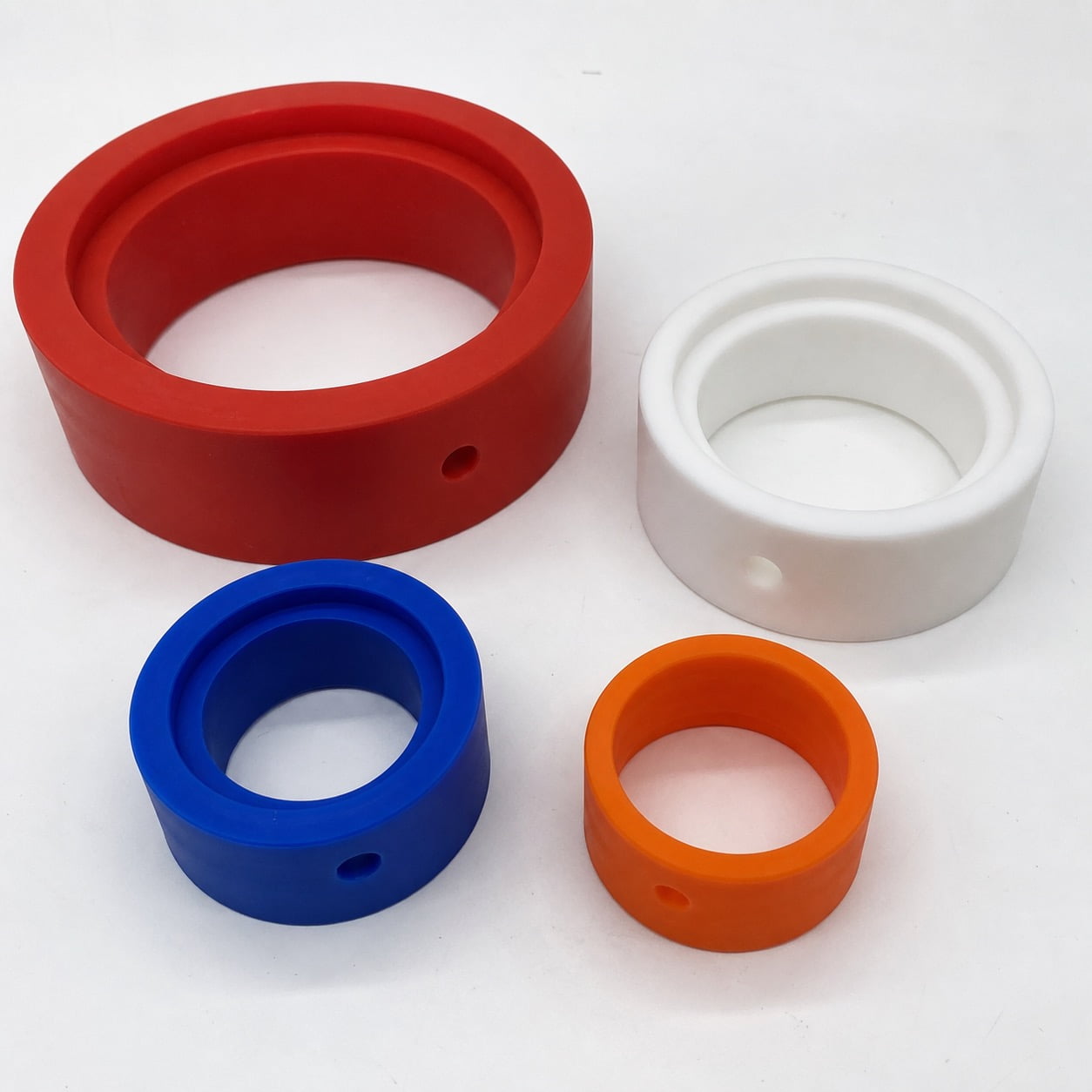

Silicone Butterfly Valve Seals
Custom seals for butterfly valve seats, discs, and valve body contact areas. Designed to support fit, compression, and leakage control.

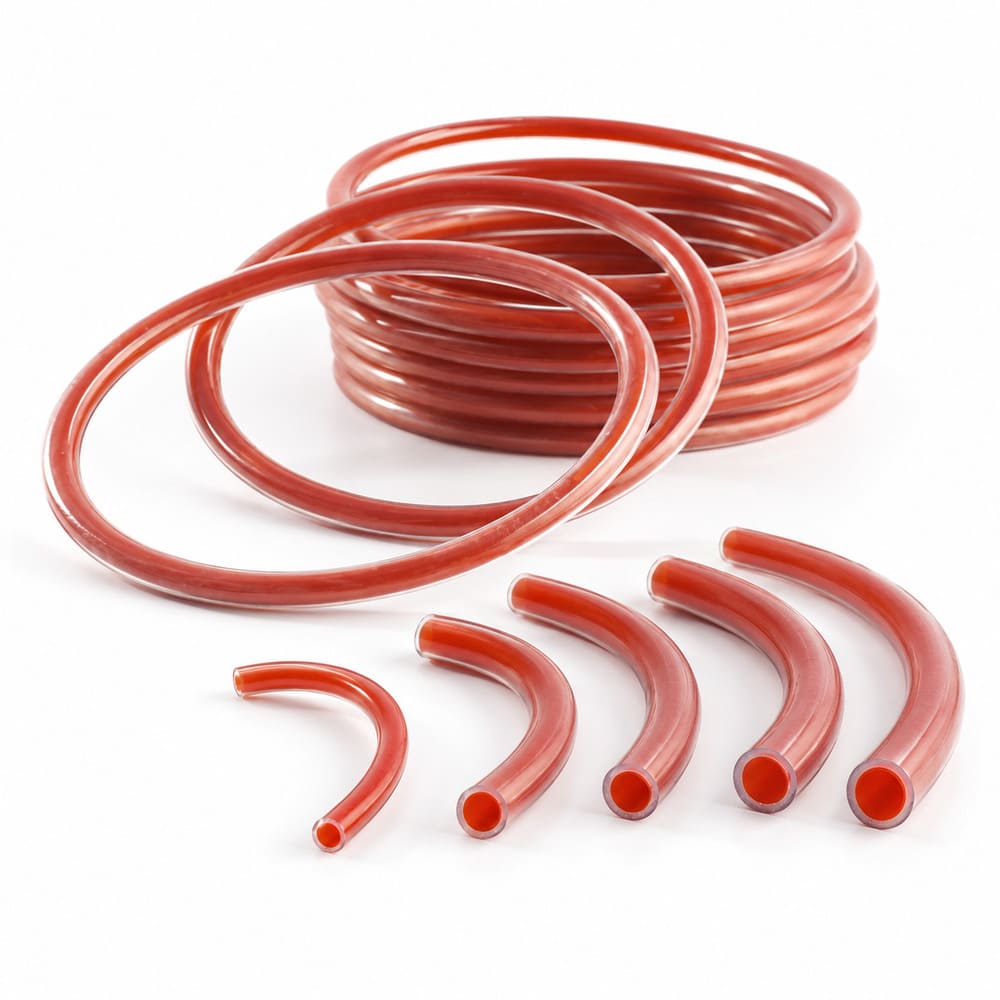

Encapsulated Silicone Seals
Reinforced sealing structures for applications that need better durability, protection, or strength than standard silicone seals.

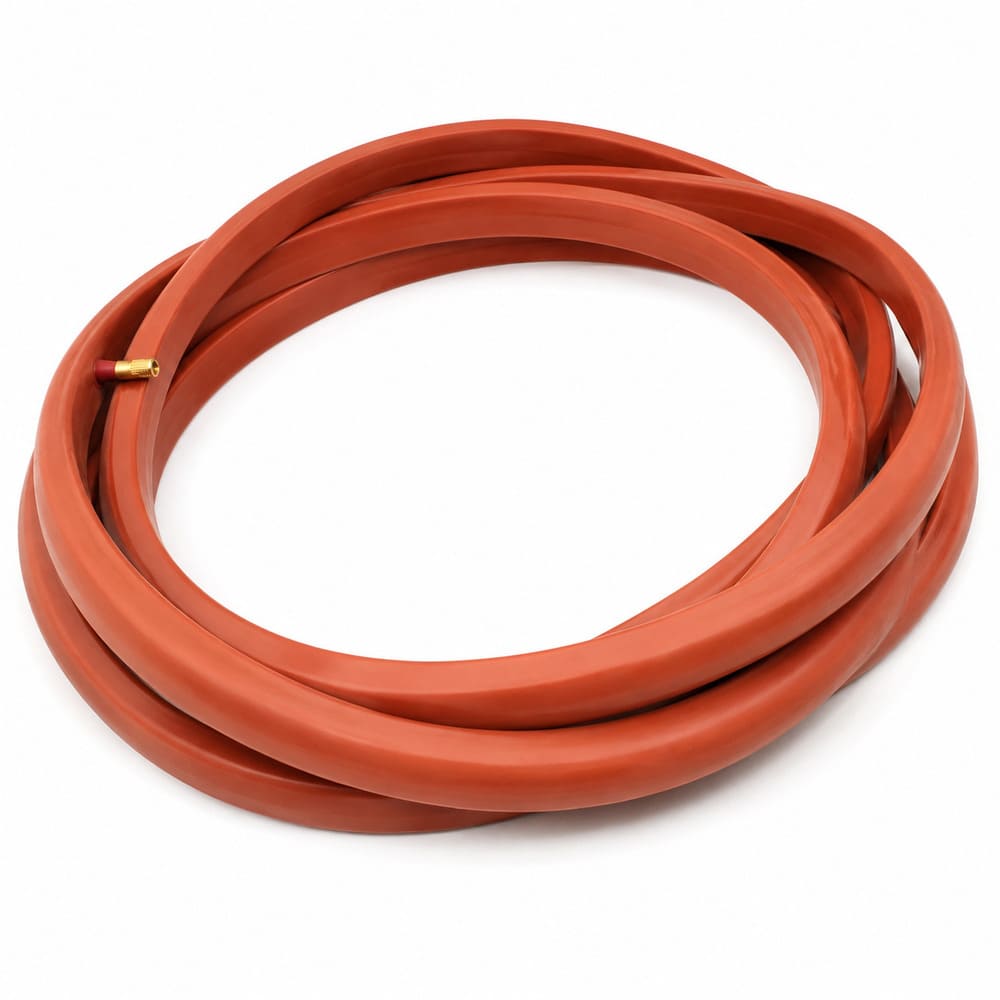

Inflatable Silicone Seals
Air-activated seals for doors, chambers, equipment openings, and adjustable gaps. Expands under pressure to create a controlled seal.
Common Silicone Gasket Types We Manufacture

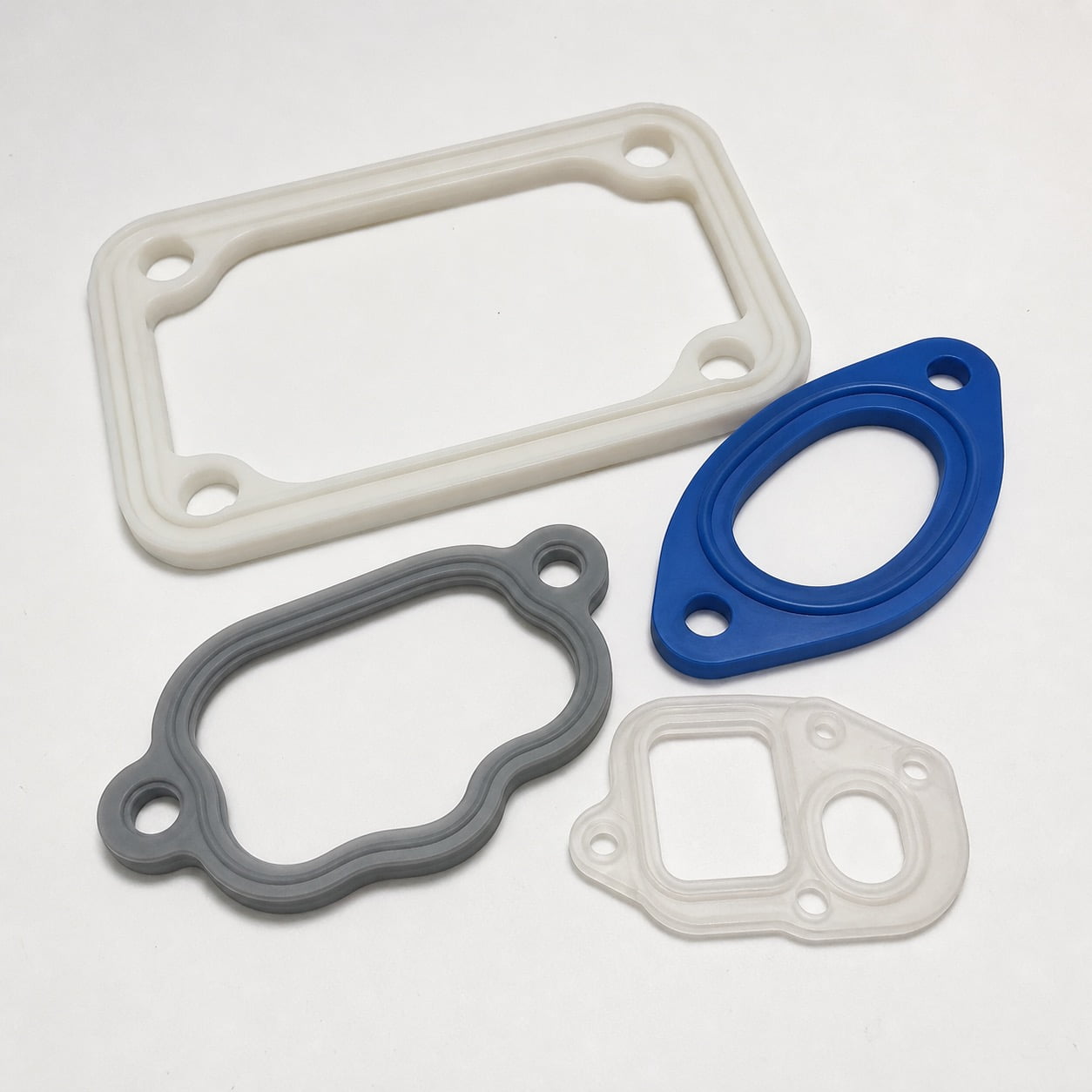

Custom Molded Silicone Gaskets
Molded for custom shapes, grooves, holes, and sealing structures that need a precise fit in OEM assemblies.

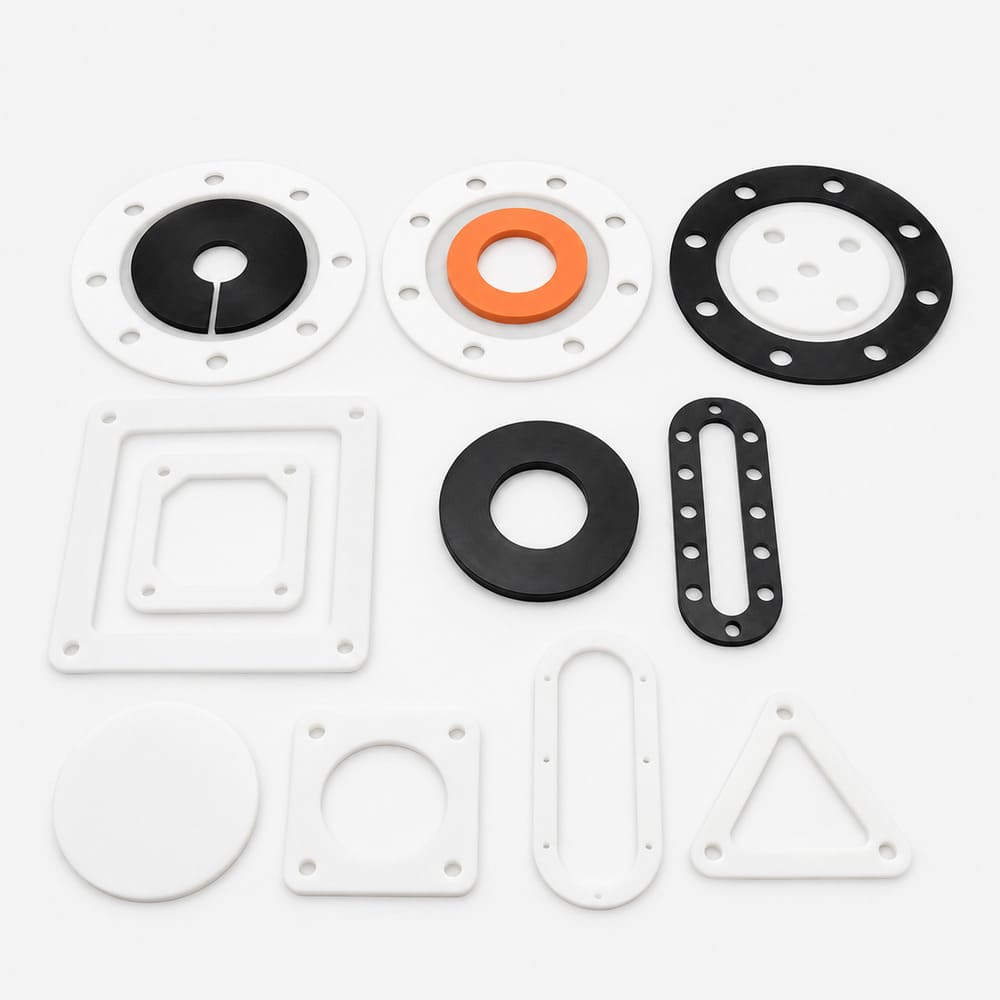

Die Cut Silicone Gaskets
Cut from silicone sheet material for flat gasket designs, controlled thickness, clean edges, and efficient bulk production.

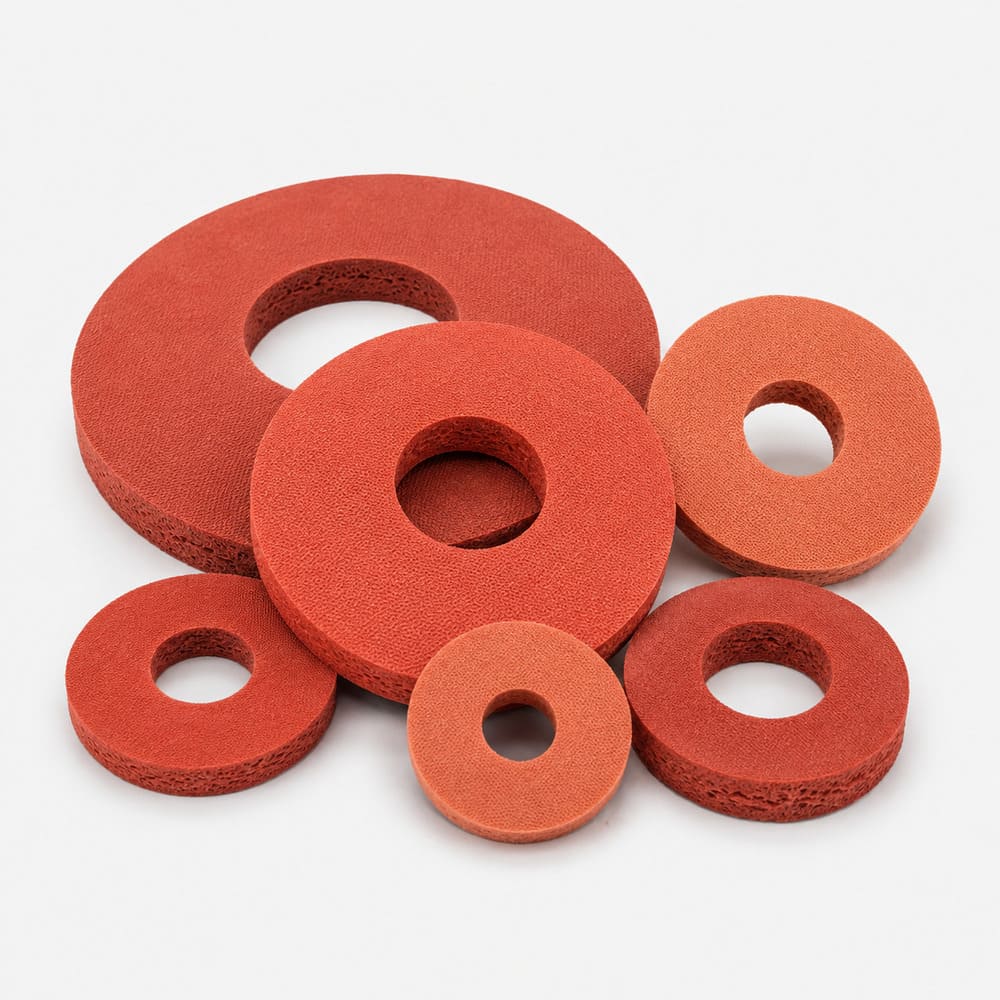

Foam / Sponge Silicone Gaskets
Soft and compressible gaskets for cushioning, gap filling, dust prevention, vibration reduction, and light sealing.

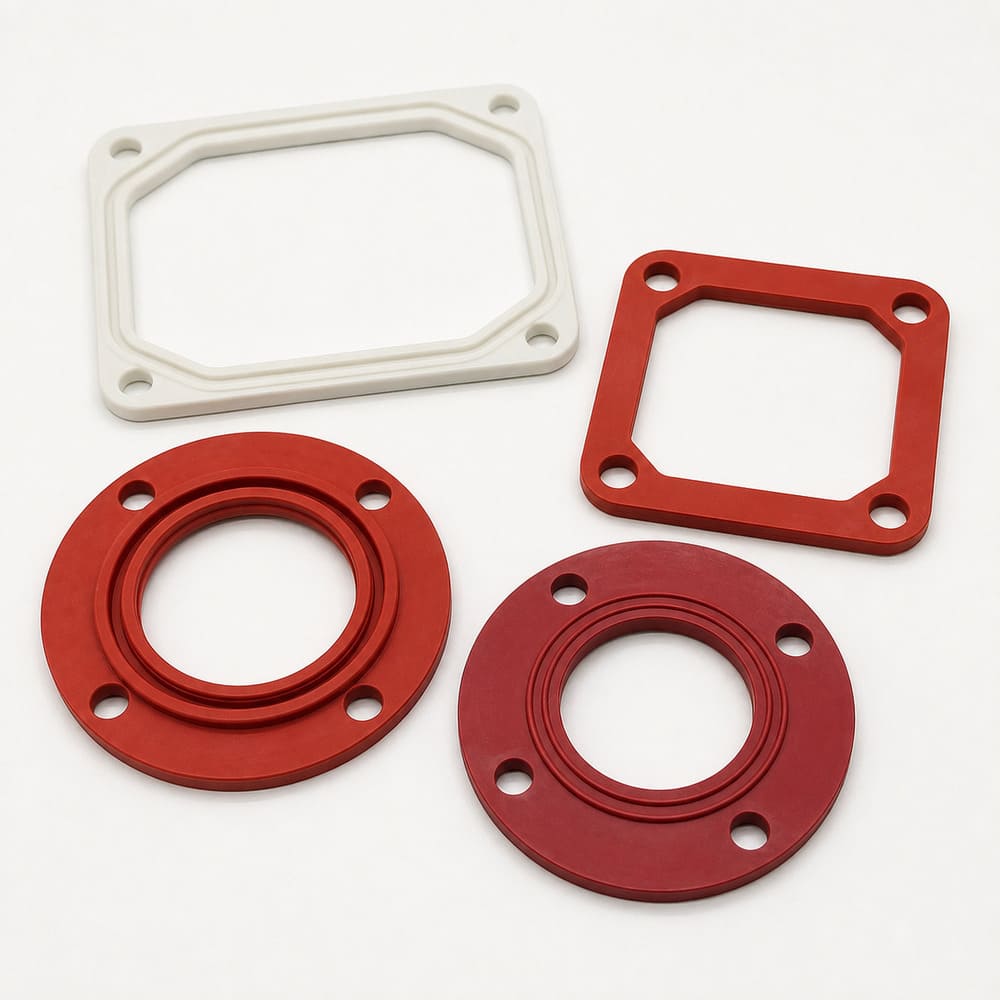

High Temperature Silicone Gaskets
Designed for heat, cold, and changing temperature conditions, with silicone grades available from -40°C to 260°C.

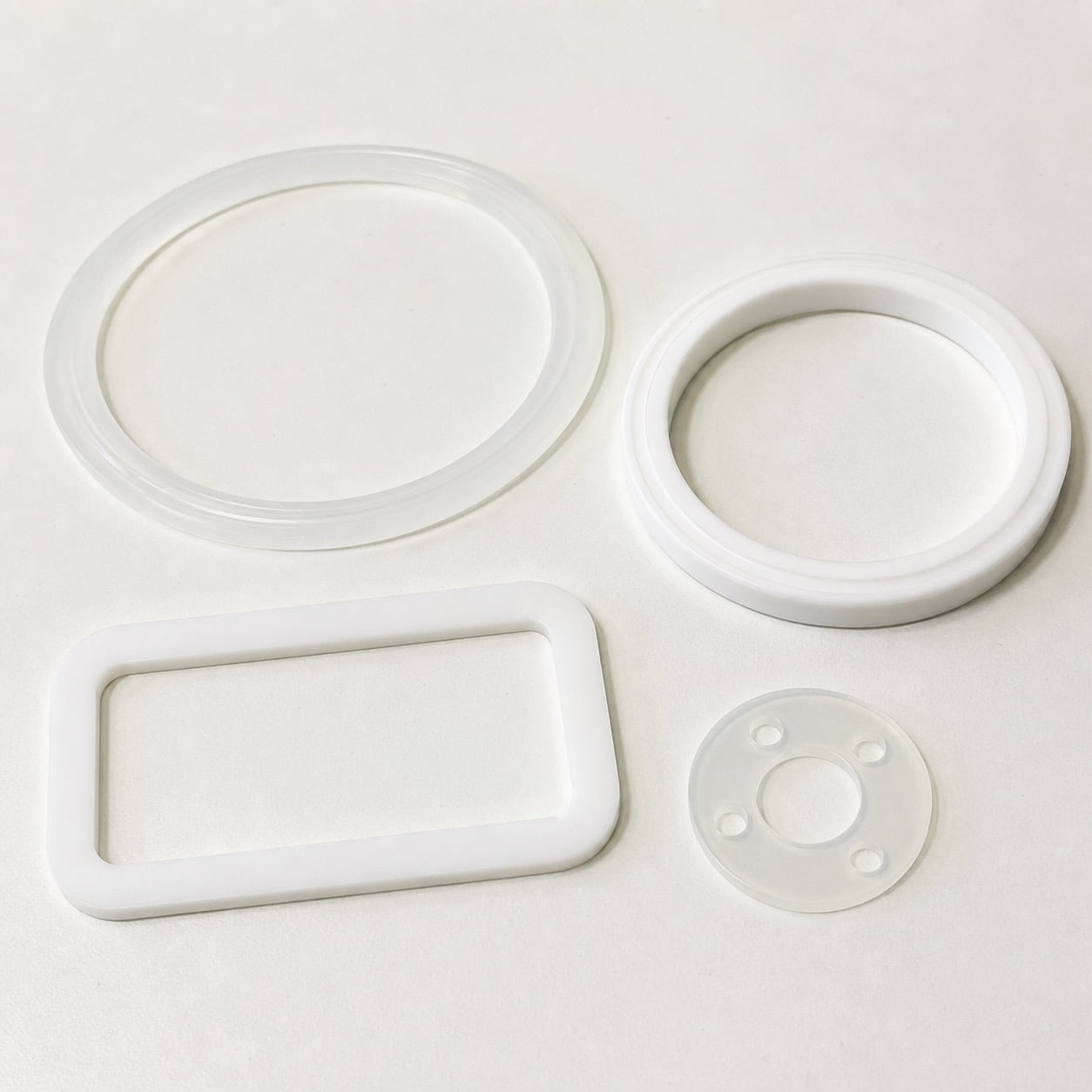

Food Grade Silicone Gaskets
Made with safe, non-toxic, odorless silicone for food-contact equipment, kitchen appliances, and beverage systems.

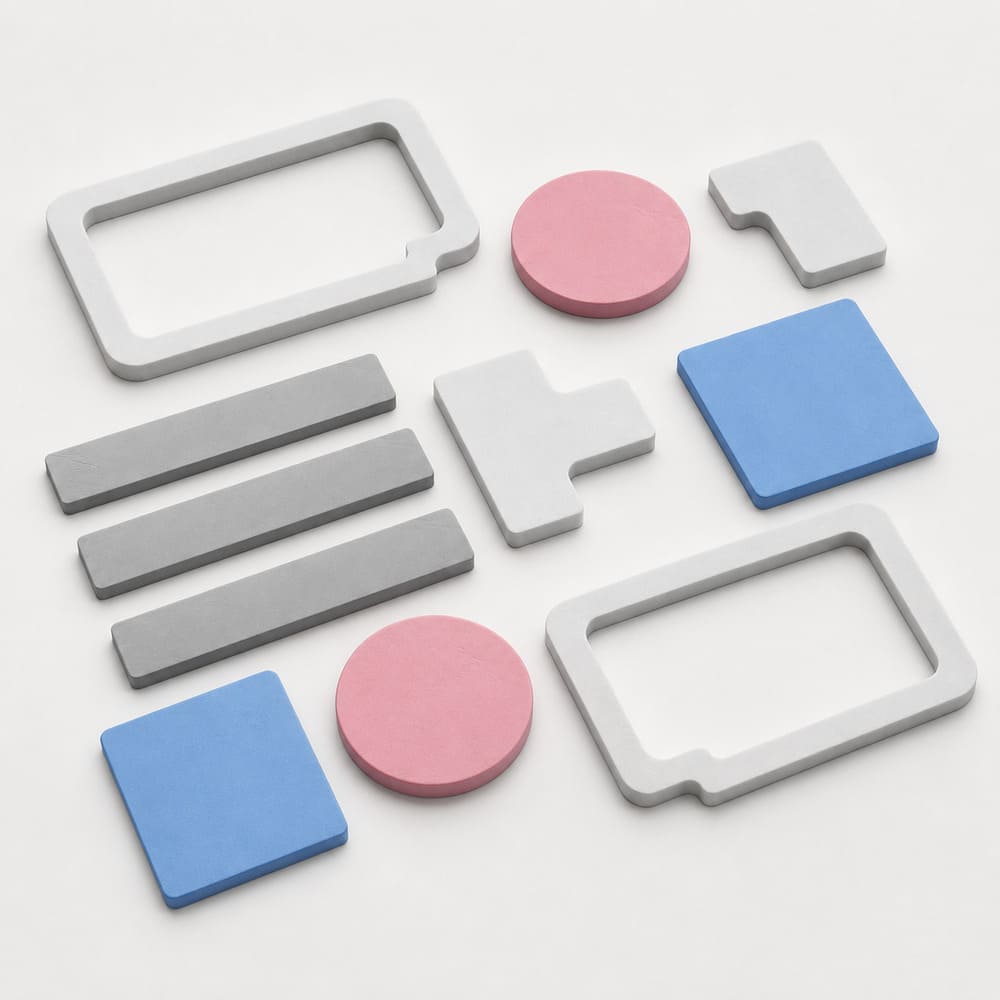

Conductive Silicone Gaskets
Developed for sealing applications that also require electrical conductivity, static control, or EMI shielding support.
Custom Options
Material grade, hardness, size, shape, color, surface finish, tolerance, packaging, and mold structure can be customized according to your project requirements.
Four Engineering Controls Behind
Reliable Silicone Seals and Gaskets
Pandasoft reduces sealing part risks with measurable engineering controls, from drawing review and material testing to first article inspection and batch quality control.
Dimensional Deviation
Pandasoft uses drawing review, digital calipers, go/no-go gauges, CMM or vision measurement, and first article inspection to verify critical dimensions before mass production.
Sealing Failure
Pandasoft uses compression structure review, groove-fit checking, sample approval, and sealing surface inspection to confirm fit, compression, and sealing contact before bulk production.
Material Mismatch
Pandasoft uses polymer material evaluation, Shore A hardness testing, compression set evaluation, and rubber processing analyzer testing to match silicone grade, hardness, and working conditions.
Batch Fluctuation
Pandasoft uses signed sample approval, IQC, IPQC, AOI inspection, final inspection, and AQL 2.5 / 4.0 standards to keep batch quality consistent.
Match the Right Silicone Seal or Gasket to Your Application
Different sealing environments need different structures, materials, hardness levels, and quality controls. Use this guide to match your application with the most suitable silicone seals or gaskets before requesting a quote.

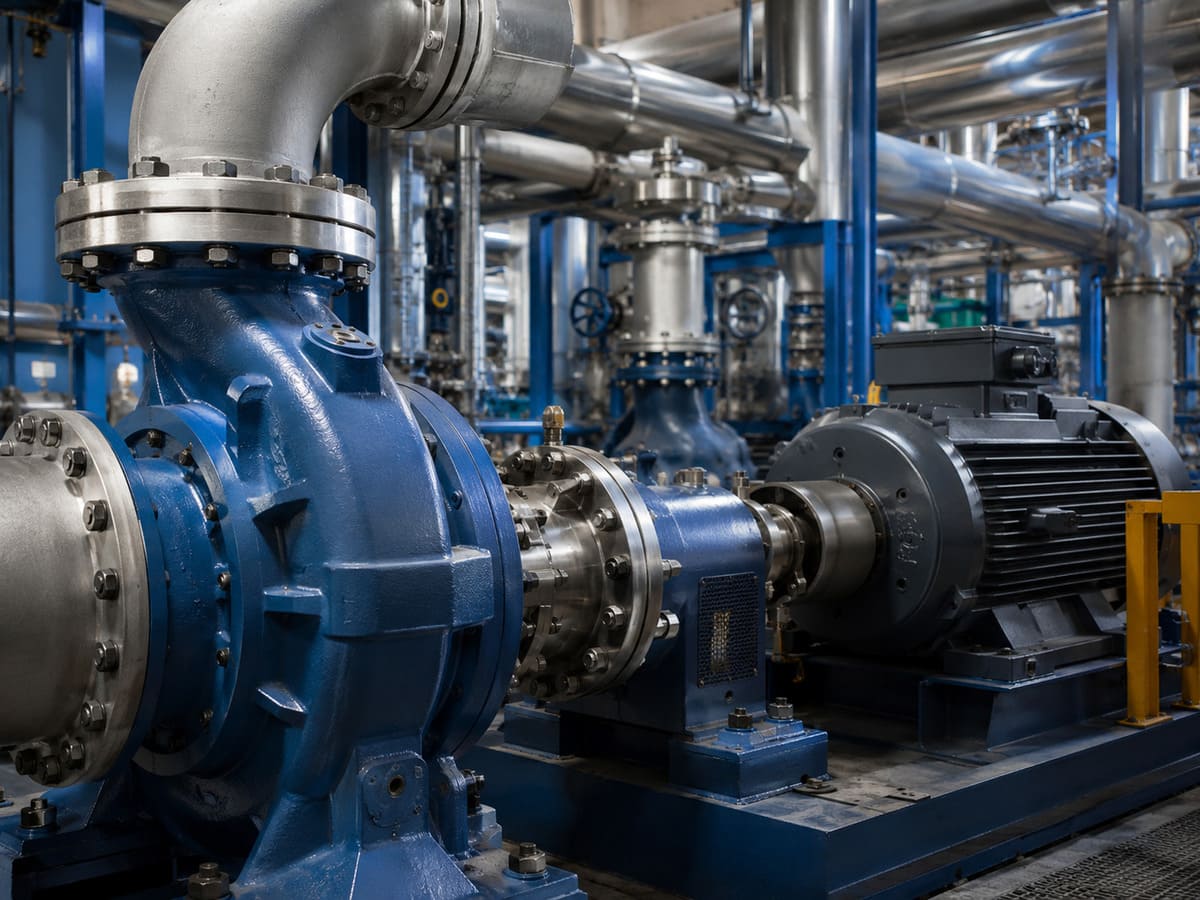

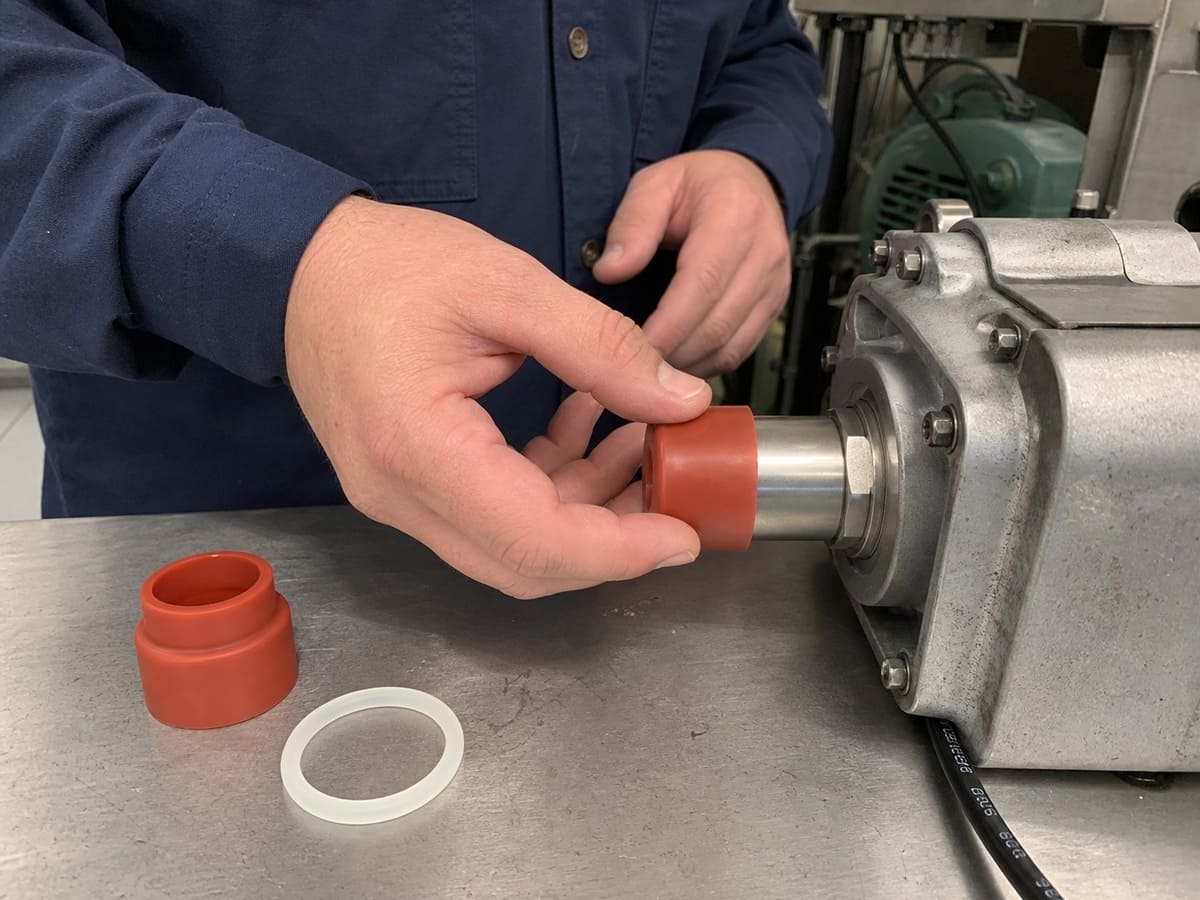

Industrial Equipment Sealing
- Custom-Shaped Silicone Seals
- Custom Molded Silicone Gaskets
- Silicone O-Ring Seals
- Foam / Sponge Silicone Gaskets
Assembly space, compression force, dust or moisture exposure, working temperature, sealing surface, and required tolerance.

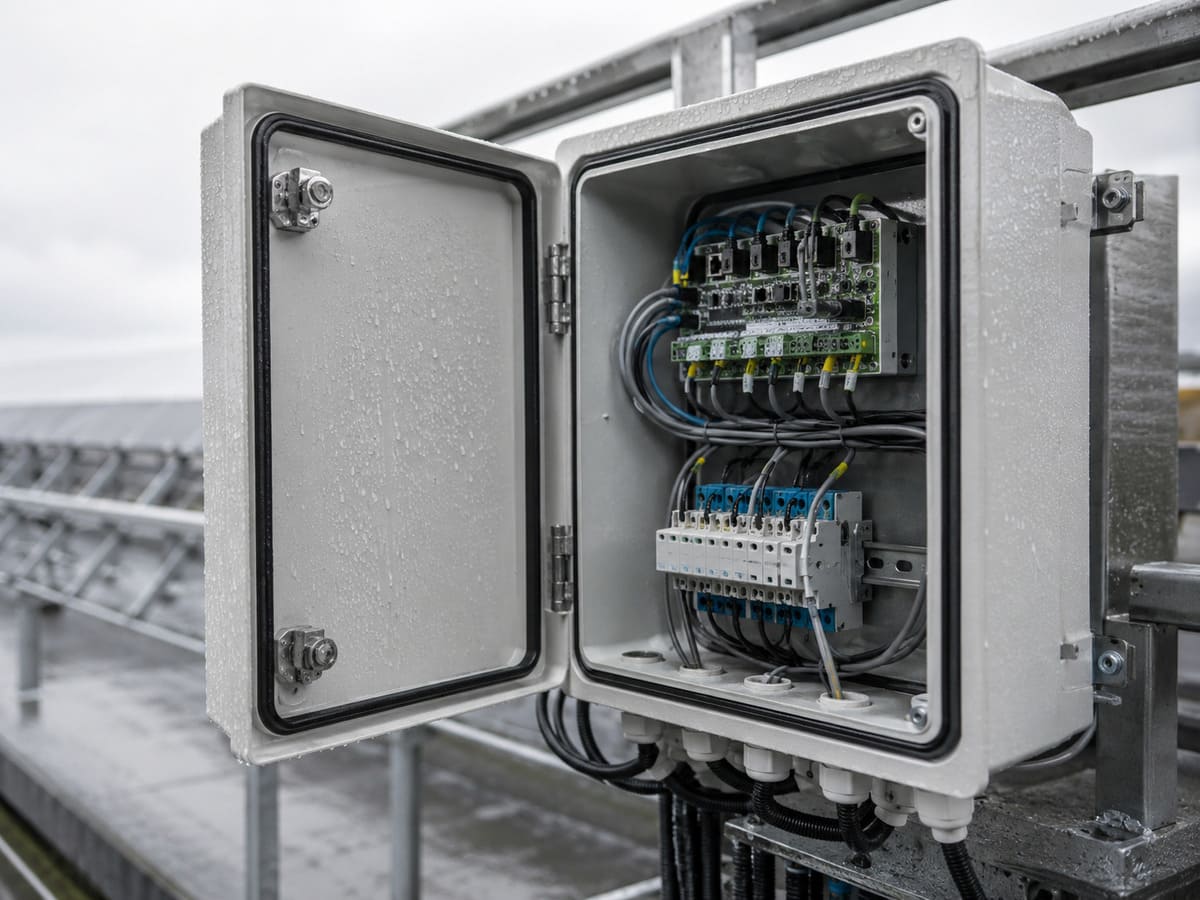

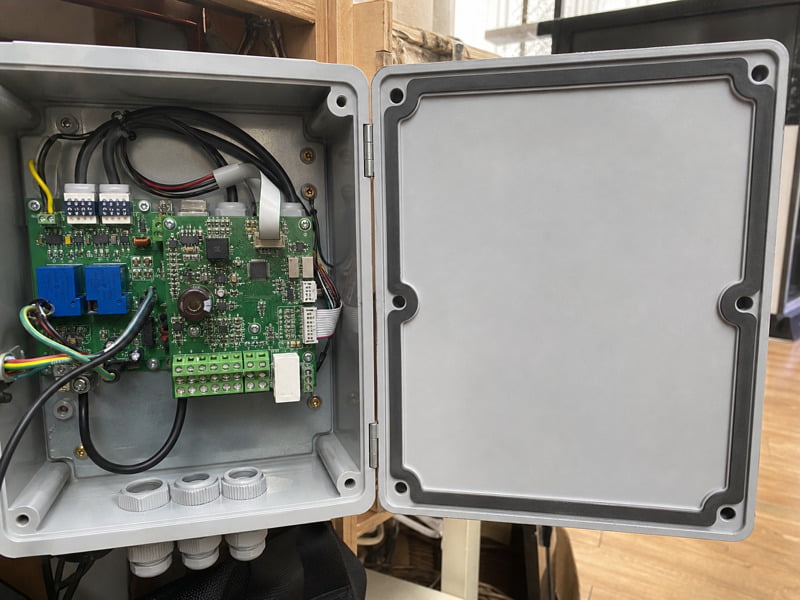

Electronics & Enclosure Protection
- Die Cut Silicone Gaskets
- Conductive Silicone Gaskets
- Silicone Seals with Holes
- Custom-Shaped Silicone Seals
Insulation needs, EMI shielding, screw holes, enclosure fit, dust resistance, moisture protection, and material hardness.

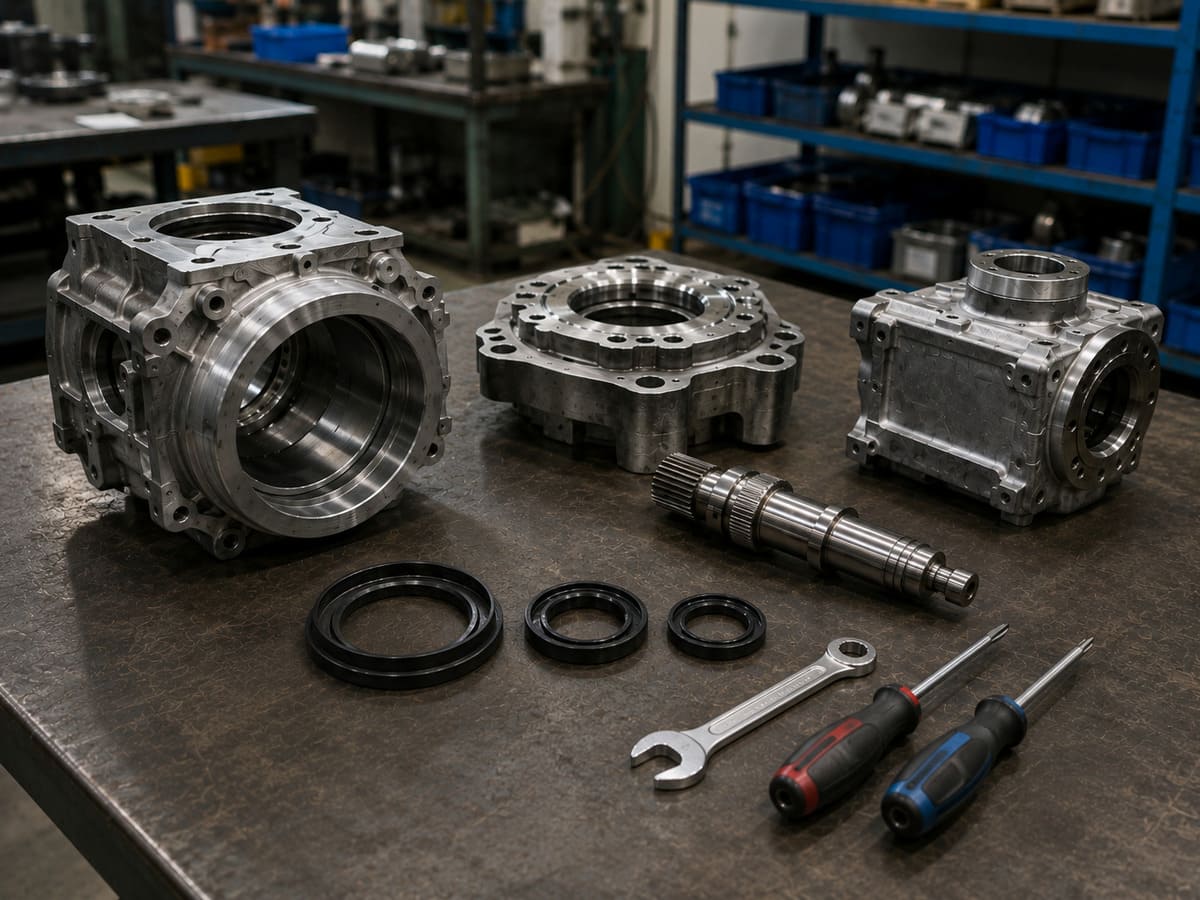

Mechanical Assembly & OEM Parts
- Custom Molded Silicone Gaskets
- Silicone O-Ring Seals
- Silicone Bearing Seals
- Silicone Seals with Holes
Fit tolerance, compression set, vibration, friction, mounting holes, repeated assembly, and batch consistency.

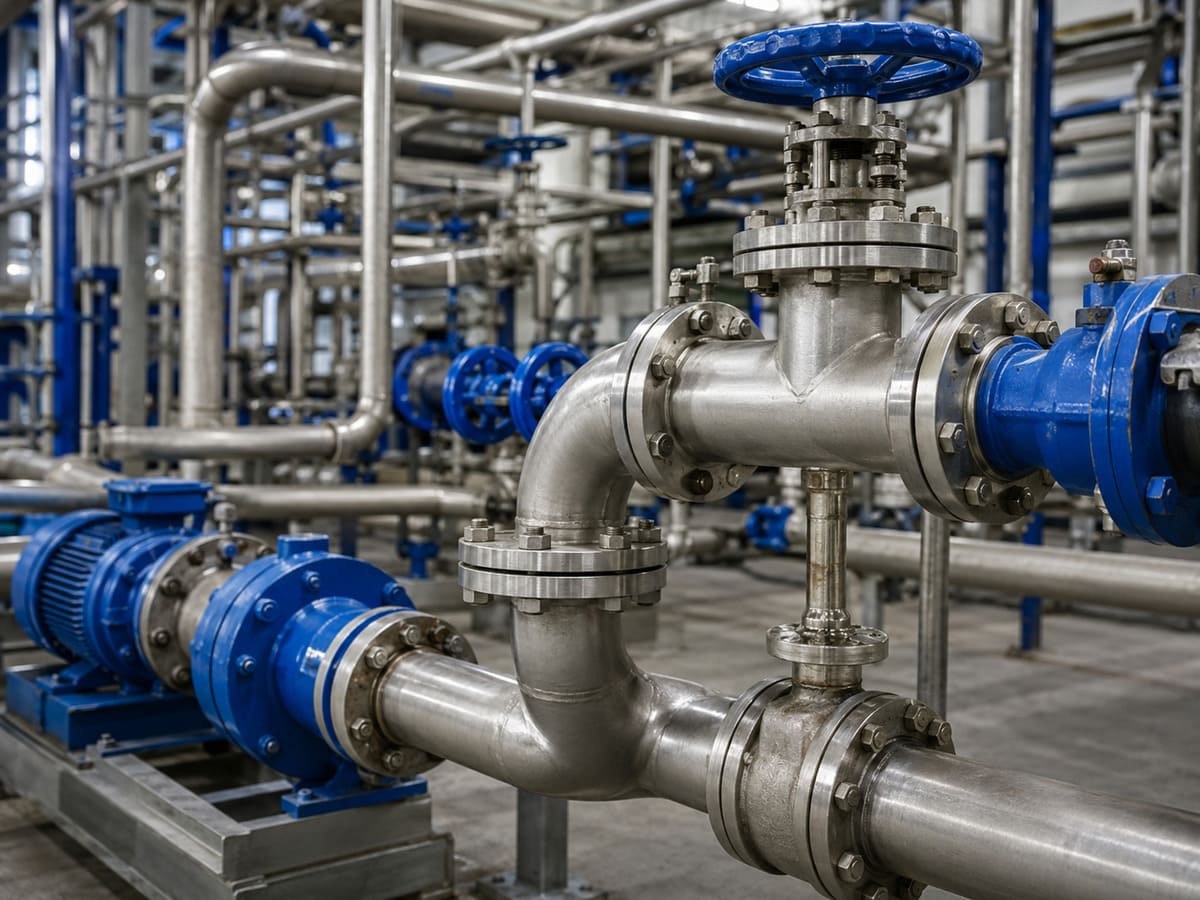

Valves, Pipes & Fluid Systems
- Silicone Butterfly Valve Seals
- Silicone O-Ring Seals
- High Temperature Silicone Gaskets
- Encapsulated Silicone Seals
Fluid contact, pressure, valve seat fit, heat resistance, chemical exposure, leakage risk, and long-term sealing stability.

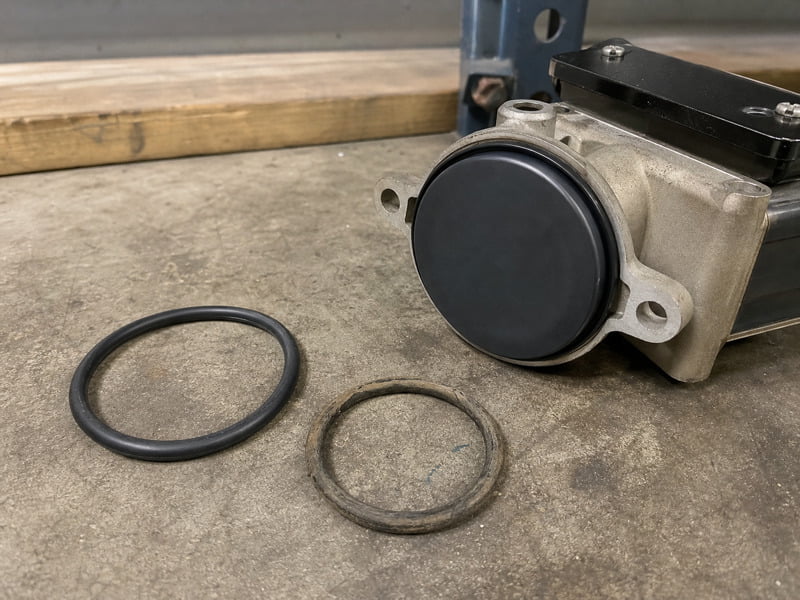

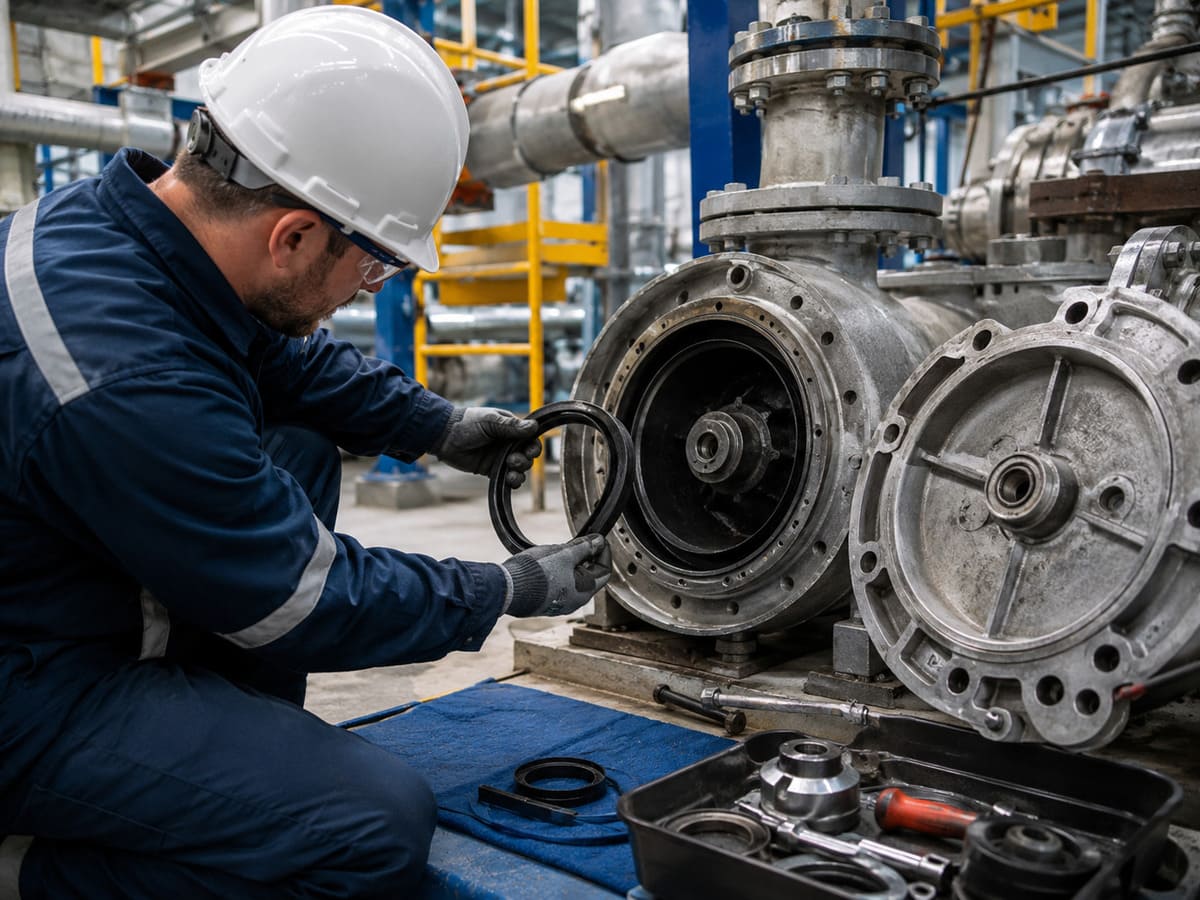

Replacement & Maintenance Parts
- Silicone Cap Seals
- Custom-Shaped Silicone Seals
- Die Cut Silicone Gaskets
- Silicone O-Ring Seals
Original sample matching, repeat order stability, part identification, dimension control, lead time, and after-sales replacement needs.

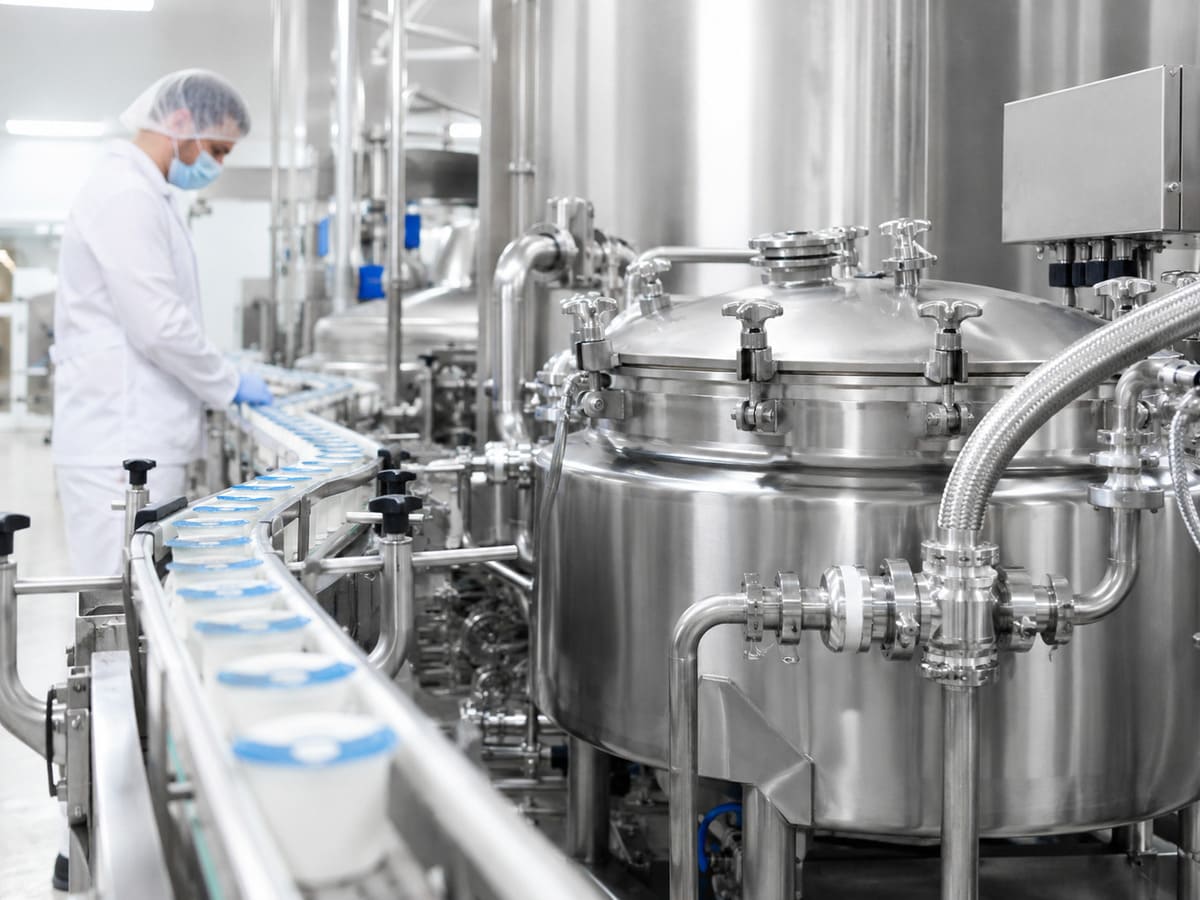

Food-Contact or Compliance-Driven Applications
- Food Grade Silicone Gaskets
- High Temperature Silicone Gaskets
- Silicone O-Ring Seals
- Custom Molded Silicone Gaskets
FDA, LFGB, or EU 1935/2004 requirements, odorless material, temperature range, cleaning conditions, contact medium, and safety documentation.
Custom Silicone Seals & Gaskets
Ultimate Process Selection Guide
A comprehensive comparison of five core manufacturing processes to help B2B procurement managers make informed decisions based on cost, quality, and application requirements.
| Process Name | One-Sentence Description | Core Advantages | Suitable Applications | Purchasing Cost Evaluation | Yield Rate & Performance |
|---|---|---|---|---|---|
|
Compression Molding
|
Solid silicone is placed into a heated mold cavity, then pressed to fill the mold and vulcanize. |
|
Simple sealing rings, washers, large industrial gaskets. |
Mold Cost
$500-$2,000
Unit Price
Medium
MOQ
Flexible, small-medium scale
|
Yield Rate
Prone to flash. Stable physical properties, but dimensional tolerance is relatively larger (±0.15mm+). |
|
Liquid Silicone Injection Molding (LSR/LIM)
|
A precision injection machine injects two-component liquid silicone into a closed mold for forming. |
|
Medical-grade seals, electronic waterproof parts, high-precision components. |
Mold Cost
$5,000+
Unit Price
Highly competitive at high volume
MOQ
Relatively high
|
Yield Rate
Almost no waste. Extremely precise dimensions (±0.05mm), strong tear resistance, high chemical purity. |
|
Transfer Molding
|
Silicone is forced from a transfer chamber through runners into the mold cavity, combining features of compression and injection molding. |
|
Seals with metal frames, medium-complexity precision gaskets. |
Mold Cost
$1,500-$4,000
Unit Price
Slightly higher than compression
MOQ
Medium
|
Yield Rate
Suitable for complex shapes, strong insert bonding, but produces more runner waste. |
|
Die Cutting
|
Custom dies are used to punch and cut silicone sheets at high speed. |
|
Flat gaskets, thin sheet pads, adhesive-backed simple geometric seals. |
Mold Cost
$100-$500
Unit Price
Low
MOQ
Very large-scale production
|
Yield Rate
Stable yield, but sheet offcuts are common. Limited to flat structures; thickness restricted by raw sheet material. |
|
Overmolding
|
Based on a primary process, silicone is directly molded and bonded onto the surface of another substrate. |
|
Waterproof electronic assemblies, sensor housings, metal or plastic insert sealing parts. |
Mold Cost
High
Unit Price
Higher, saves assembly cost
MOQ
High
|
Yield Rate
Extremely strong bonding, waterproof rating up to IP68. Requires strict substrate consistency control. |
Compression Molding
$500-$2,000
Description
Solid silicone is placed into a heated mold cavity, then pressed to fill the mold and vulcanize.
Core Advantages
- ✓Low mold cost
- ✓High material utilization
- ✓Suitable for medium & large parts
Suitable Applications
Simple sealing rings, buttons, large industrial pads.
Yield Rate & Performance
Prone to flash. Tolerance ±0.15mm+.
Liquid Silicone Injection (LSR/LIM)
$5,000+
Description
A precision injection machine injects two-component liquid silicone into a closed mold for forming.
Core Advantages
- ✓Extremely high automation
- ✓Short cycle time
- ✓Excellent precision & cleanliness
Suitable Applications
Medical-grade seals, electronic waterproof parts, high-precision components.
Yield Rate & Performance
Almost no waste. Precision ±0.05mm, high chemical purity.
Transfer Molding
$1,500-$4,000
Description
Silicone is forced from a transfer chamber through runners into the mold cavity, combining features of compression and injection molding.
Core Advantages
- ✓Better tolerance than compression
- ✓Less flash
- ✓Suitable for insert molding
Suitable Applications
Seals with metal frames, medium-complexity precision gaskets.
Yield Rate & Performance
Strong insert bonding, but more runner waste.
Die Cutting
$100-$500
Description
Custom dies are used to punch and cut silicone sheets at high speed.
Core Advantages
- ✓Extremely fast production
- ✓No vulcanization cycle needed
- ✓Very low cost
Suitable Applications
Flat gaskets, thin sheet pads, adhesive-backed simple geometric seals.
Yield Rate & Performance
Stable yield, limited to flat structures. Sheet offcuts common.
Overmolding
Extremely High
Description
Based on a primary process, silicone is directly molded and bonded onto the surface of another substrate.
Core Advantages
- ✓Zero assembly cost
- ✓Permanent chemical bonding
- ✓Highest waterproof reliability
Suitable Applications
Waterproofing for mobile phones / wearables, medical instruments with metal handles.
Yield Rate & Performance
IP68 waterproof rating. Requires strict substrate consistency control.
Purchasing Advice & In-Depth Analysis
Purchasing Cost Logic
Unit price should not be the only factor. Compression molding has lower mold costs and suits projects with annual demand in the thousands. Although LSR molds are expensive, the extremely short cycle time and no need for manual trimming can make the total cost lower than compression molding when annual demand exceeds 50,000-100,000 pieces.
Yield Rate & Material Loss
The biggest issue with compression molding is the uncontrollability of flash, which increases manual trimming cost and defect rate. LSR can achieve a "flash-free" design with very stable yield. Die cutting has a high yield rate, but produces a large amount of sheet offcuts -- purchasing cost may be affected when raw material prices fluctuate significantly.
Performance Trade-off
For extreme environments such as medical devices or precision sensors, LSR offers much better material consistency than solid silicone. If the application is only simple dust sealing, die cutting provides unmatched cost performance. Match the process to the actual performance requirement -- not the other way around.
Choose the Right Process.
Minimize Total Cost of Ownership.
For procurement, die cutting and compression molding are low-cost, medium-yield "cost-effective" solutions -- ideal for straightforward geometries and moderate volumes. LSR and overmolding require much higher upfront mold investment, but their extremely high yield rate and excellent performance deliver a lower total cost of ownership in large-volume, high-precision projects.

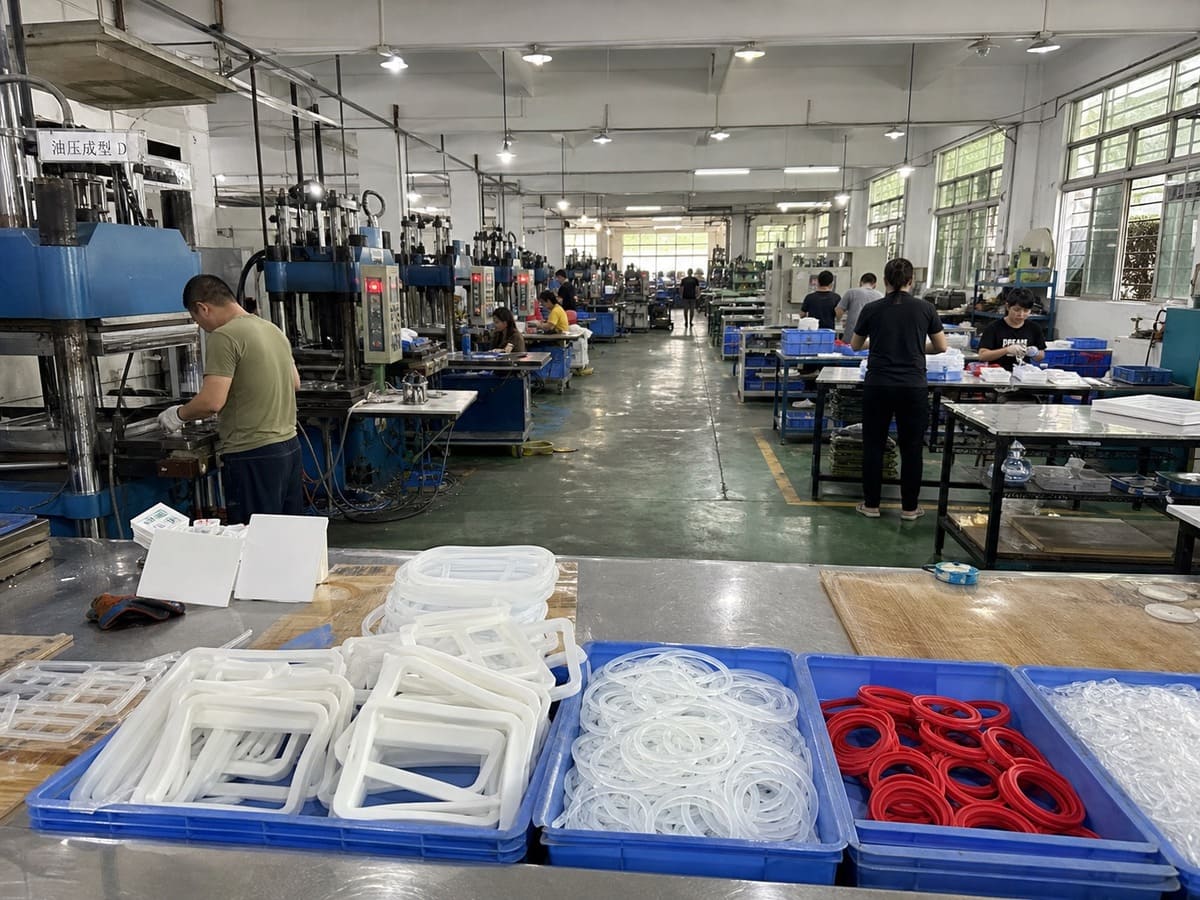

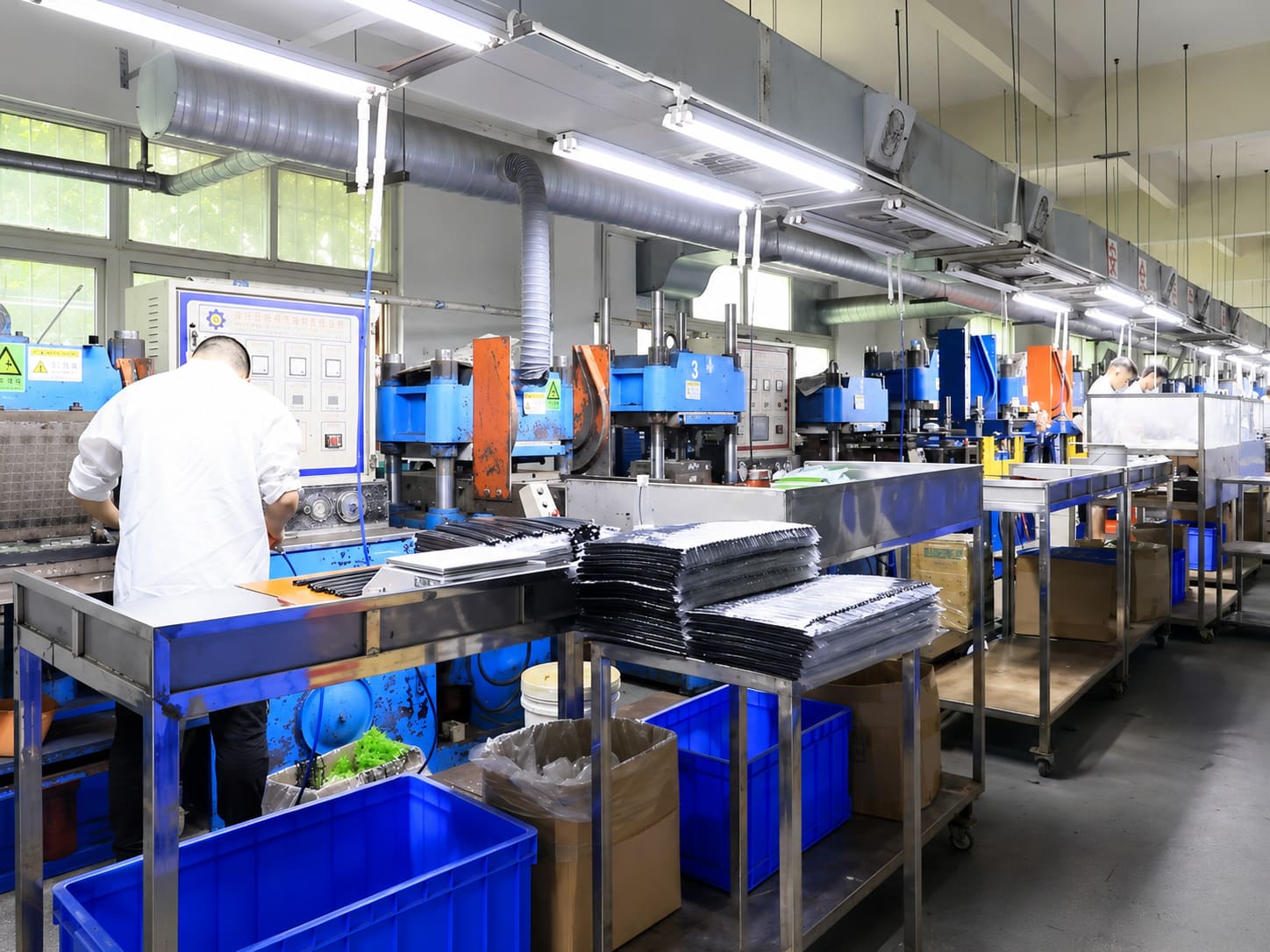

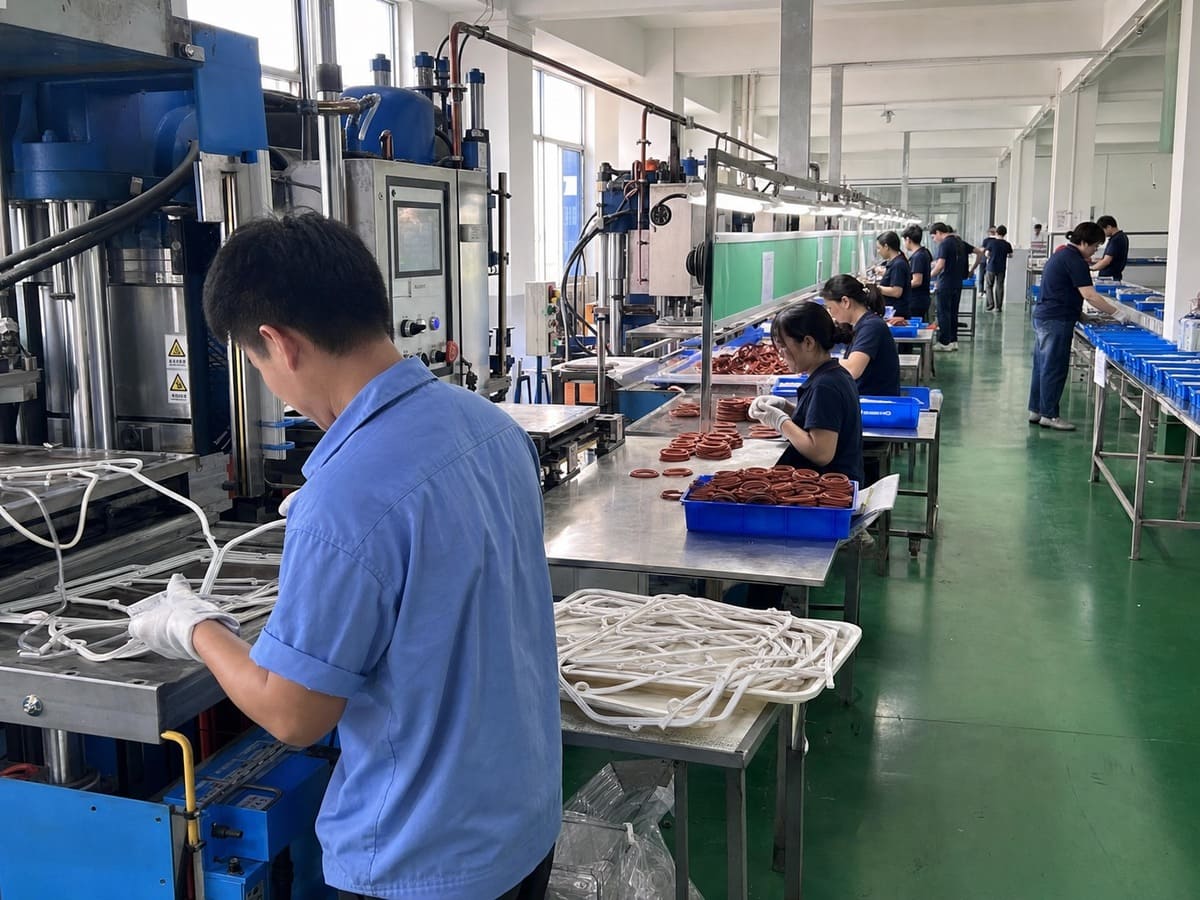

A real factory.
Real equipment. Real capacity.
Not a trading company. Not a broker. 16,000 m² silicone manufacturing facility with full in-house production, tooling, and quality control capabilities.
16,000+ sqm Production Space
Production space for silicone molding, assembly, inspection, and order handling.
110+ Staff Workers
Staff workers and support staff for production, engineering, quality, sales, and order coordination.
9 Production Lines
Production and assembly lines for different silicone product projects.

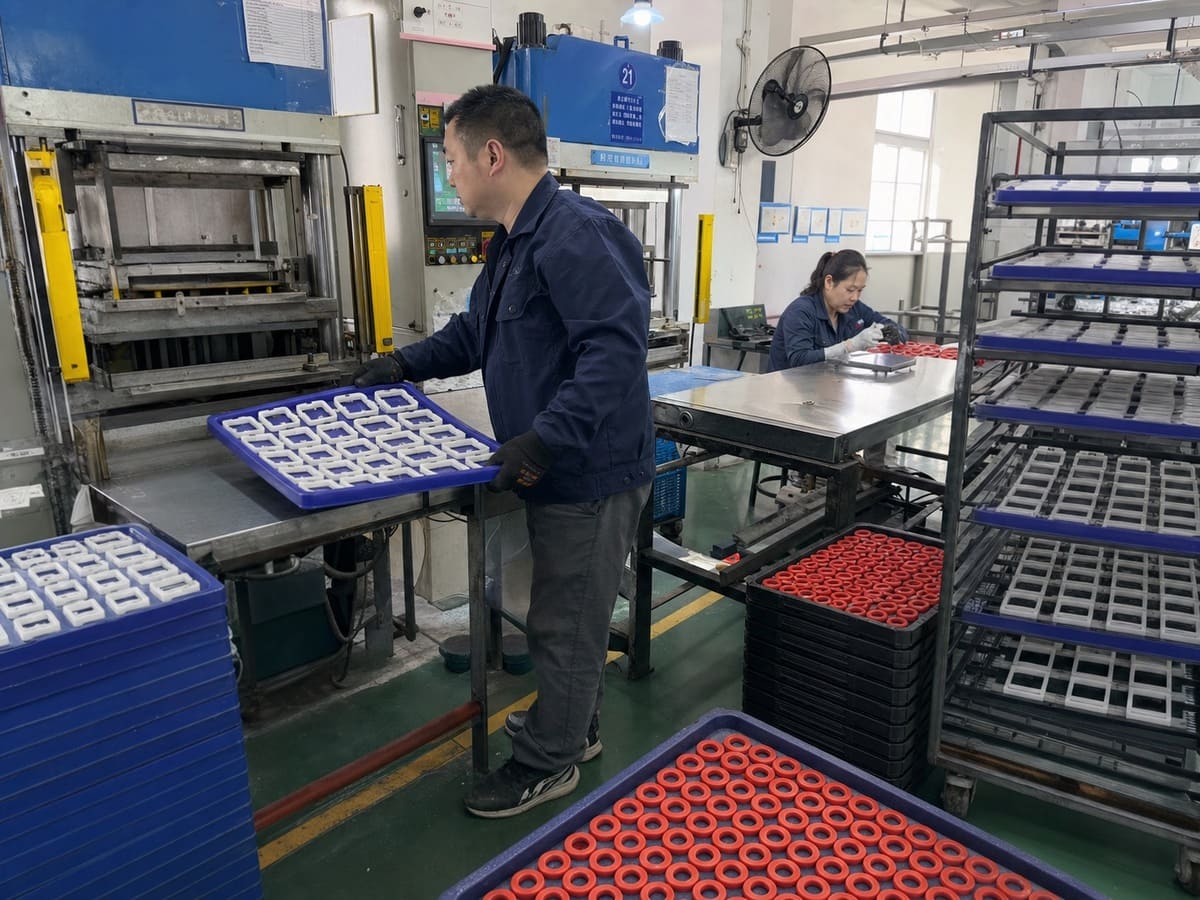

500,000-1,200,000 pcs / Month
Monthly production capacity depending on product size, structure, process, and order mix.
Quality Control from Raw Material
to Final Shipment
Every custom silicone order follows a controlled quality process, covering material checks, in-process inspection, sample approval, final inspection, and compliance support for food-grade, baby, kitchenware, and industrial silicone products.

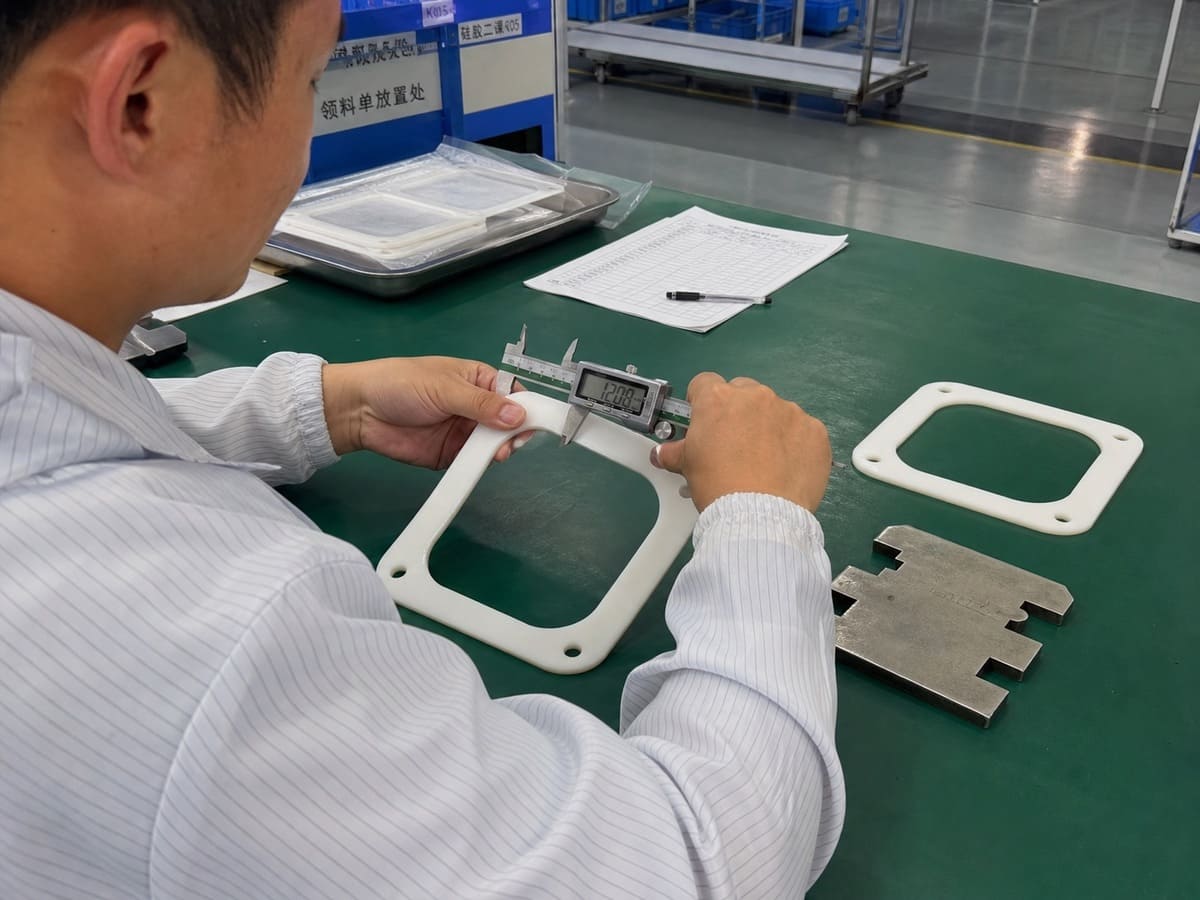

Dimension Inspection
Shore A Hardness Testing
Tensile Strength Testing
Tear Strength Testing
Compression Set Testing
Heat Aging Testing
Color Difference Testing
Visual Defect Inspection
Key Specifications for Custom
Silicone Seals and Gaskets
Before quotation and mold development, Pandasoft reviews the technical details that affect fit, sealing performance, material selection, production cost, and batch consistency.
| Specification Item | Pandasoft Capability / Reference |
|---|---|
|
Product Types
|
Custom silicone seals, gaskets, washers, O-rings, sealing pads, cap seals, bearing seals, valve seals, and custom-shaped sealing parts |
|
Material Options
|
Food-grade silicone, industrial silicone, high-temperature silicone, foam / sponge silicone, conductive silicone, and project-specific silicone grades |
|
Temperature Resistance
|
−40°C to 260°C depending on silicone grade |
|
Dimensional Tolerance
|
±0.1 mm standard tolerance; ±0.05 mm for high-precision parts when structure allows |
|
Hardness
|
Customized according to sealing pressure, flexibility, compression, and application requirements |
|
Color Options
|
Pantone color matching, black, white, red, translucent, and custom colors |
|
Surface & Structure
|
Flat, molded, grooved, with holes, custom-shaped, reinforced, encapsulated, or application-specific structures |
|
Manufacturing Processes
|
Compression Molding
LSR / LIM
Transfer Molding
Die Cutting
Overmolding
|
|
Drawing & File Support
|
2D Drawings
3D Files
STEP
SLDPRT
PRT
Samples
Application Details
|
|
MOQ
|
500-1,000 pcs depending on size, structure, and mold requirements |
|
Sample & Mold Lead Time
|
Sample delivery 6-8 days by express
New mold development 15-20 days
|
|
Mass Production Lead Time
|
2-4 weeks after sample approval |
|
Quality Control
|
Raw Material Testing
IQC
IPQC
Signed Sample Approval
First Article Inspection
Mass Production Inspection
AOI
Final Inspection
AQL 2.5 / 4.0
|
|
Certifications & Compliance
|
ISO 9001:2015
ISO 13485
IATF 16949
FDA 21 CFR 177.2600
LFGB
EU 1935/2004
REACH
RoHS
CPSIA / CPC when applicable
|
Note: Specifications may vary depending on product type, application requirements, and project complexity. Contact Pandasoft with your drawing or sample for a precise technical review and quotation.
From Inquiry to Delivery:
Your Custom Order Process
A clear, transparent process -- so you always know where your order stands.
Send Your Requirement
Send your drawing, sample, photo, quantity, material, color, logo, or packaging request. We reply within 12 hours.
Review & Quote
We review mold feasibility, material, MOQ, mold cost, lead time, and production details before quoting.
Mold Development
New mold development usually takes 15-20 days, depending on product structure and mold requirements.
Sampling
Samples are arranged for approval. Sample delivery usually takes 6-8 days by express.
Mass Production
After sample approval, mass production usually takes 2-4 weeks.
Inspection & Export
We complete final inspection, packaging, carton marks, export documents, and shipment-ready packing.
Real results from industrial sealing projects like yours.
Every metric below is from production-style sealing projects -- tracked because repeat fit, sealing performance, and batch consistency are the best evidence.
USA Equipment Brand
80K custom seals / year
Industrial Equipment OEM -- Stable Fit Across Repeat Batches
Custom molded silicone seals for equipment housings were rebuilt from sample and drawing review. Dimensional tolerance held at ±0.1 mm. Assembly rework dropped from 7.8% to 1.2% across 6 repeat batches.
German Electronics Brand
120K die cut gaskets / year
Electronics Enclosure -- Gaskets with Accurate Hole Positioning
Die cut silicone gaskets were produced for control boxes with screw holes and dust protection requirements. Hole position and thickness were checked before shipment. 98.6% first-pass assembly rate. Repeat order approved.
Canada Maintenance Distributor
60K replacement seals / year
OEM Replacement Kits -- Long-Term Supply for Maintenance Parts
Custom silicone cap seals and O-ring seals were matched from original samples for repair kits. Signed samples were used as production references. 12-month repeat supply with stable fit and no material change requests.
200+ B2B buyers across 14 countries trust Pandasoft.
Frequently Asked Questions
Answers to the most common questions B2B buyers ask before ordering custom silicone seals & gaskets.
What files or information should I send for a custom seal or gasket quote?
Can Pandasoft make silicone seals and gaskets from my sample?
What is the MOQ for custom silicone seals and gaskets?
How long does sampling and mold development take?
What tolerance can Pandasoft support?
Can you help choose the right silicone material?
Can you support food-grade or compliance-driven gasket projects?
How do you control batch quality after sample approval?
Get a Free Quote for Your Custom Silicone Project
Send us your drawings, samples, or product idea. Our engineering team will review your project and provide a practical mold feasibility review and factory quote within 12 hours.
- Free Mold Feasibility Review & Quote
- Direct Factory Pricing
- 12-Hour Expert Response
- Direct Factory Support, No Aggressive Follow-Ups
- Free Samples Available Upon Review
Mold Feasibility Review & Factory Quote
Engineer response within 12h.
Free review for your drawing, sample, material, hardness, tolerance, and project requirements.
