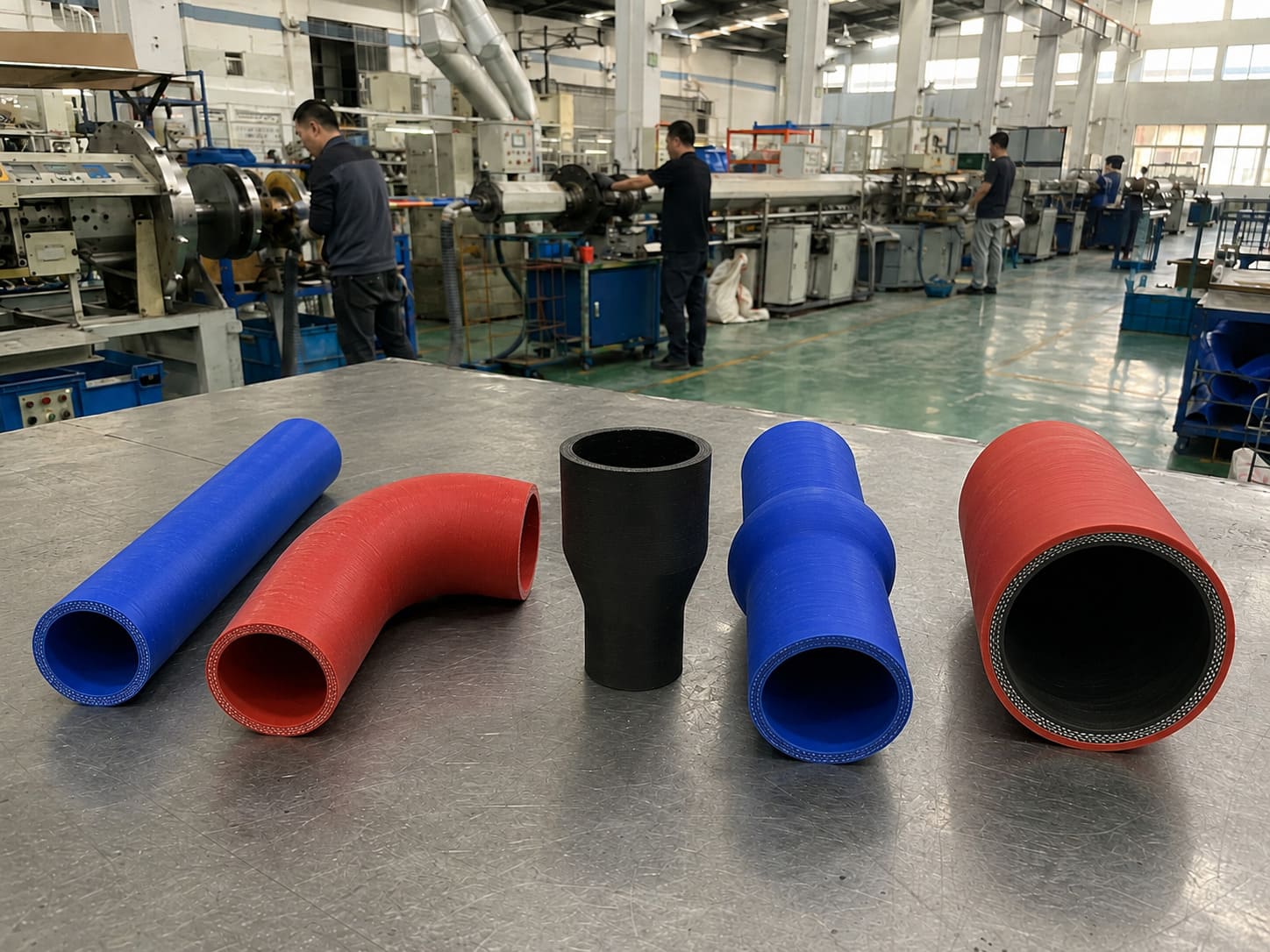

Custom Silicone Hoses for Industrial Equipment Connections
Pandasoft manufactures custom silicone hoses for industrial equipment, OEM assemblies, protective sleeves, and replacement projects where material selection, flexibility, fit, and stable batch production matter.
- Factory-direct custom silicone manufacturing
- Application-specific material and size evaluation
- Stable extrusion and silicone processing support
- ISO 9001:2015, IATF 16949, and ISO 14001 certified factory
- MOQ from 500 pcs for existing mold projects
- Sample delivery in 6-8 days by express
Browse by Hoses Type
Explore custom silicone hose types for industrial connections, equipment routing, cooling systems, air intake, vacuum lines, and OEM assemblies. Choose from straight hose lengths, couplers, reducers, elbows, T hoses, hump hoses, convoluted flex hoses, and application-specific silicone hoses.

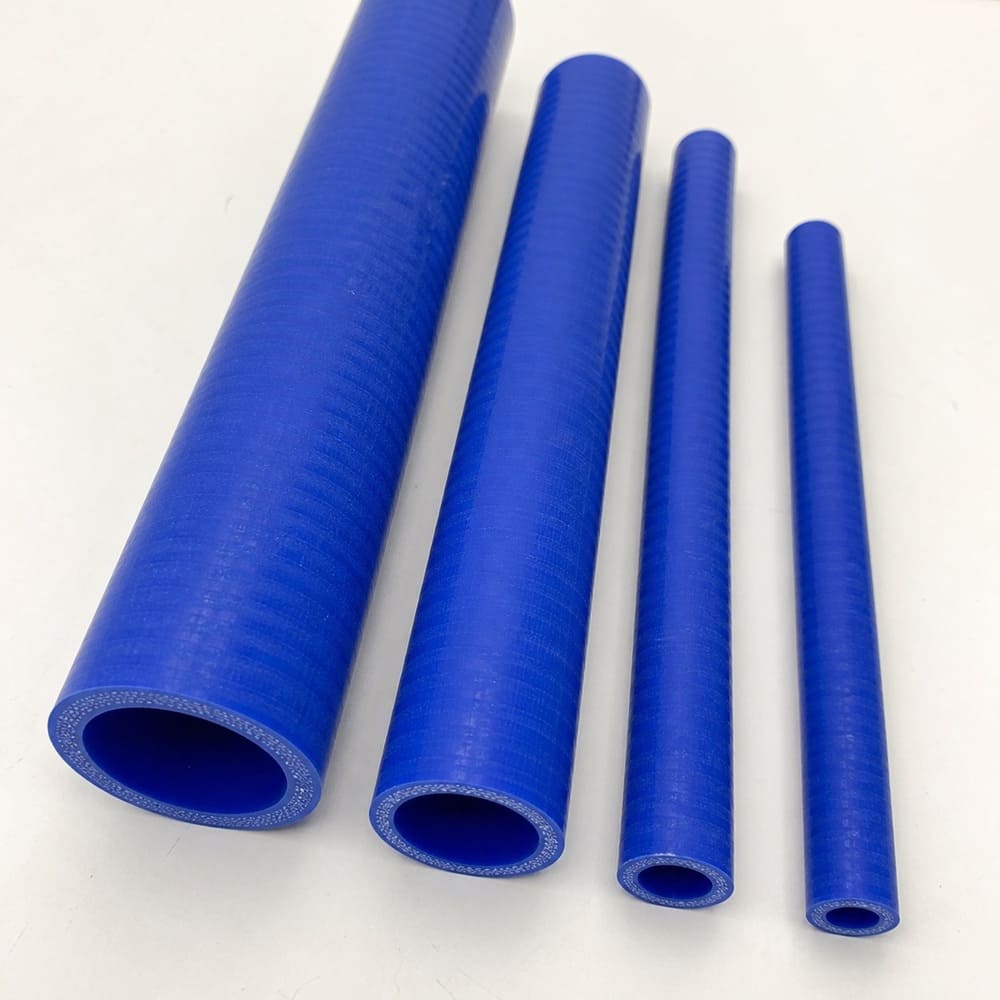

Straight Silicone Hose Lengths
Straight silicone hose lengths are flexible cut-to-size hoses used for general connection, transfer, protection, and OEM assembly applications.
LEARN MORE

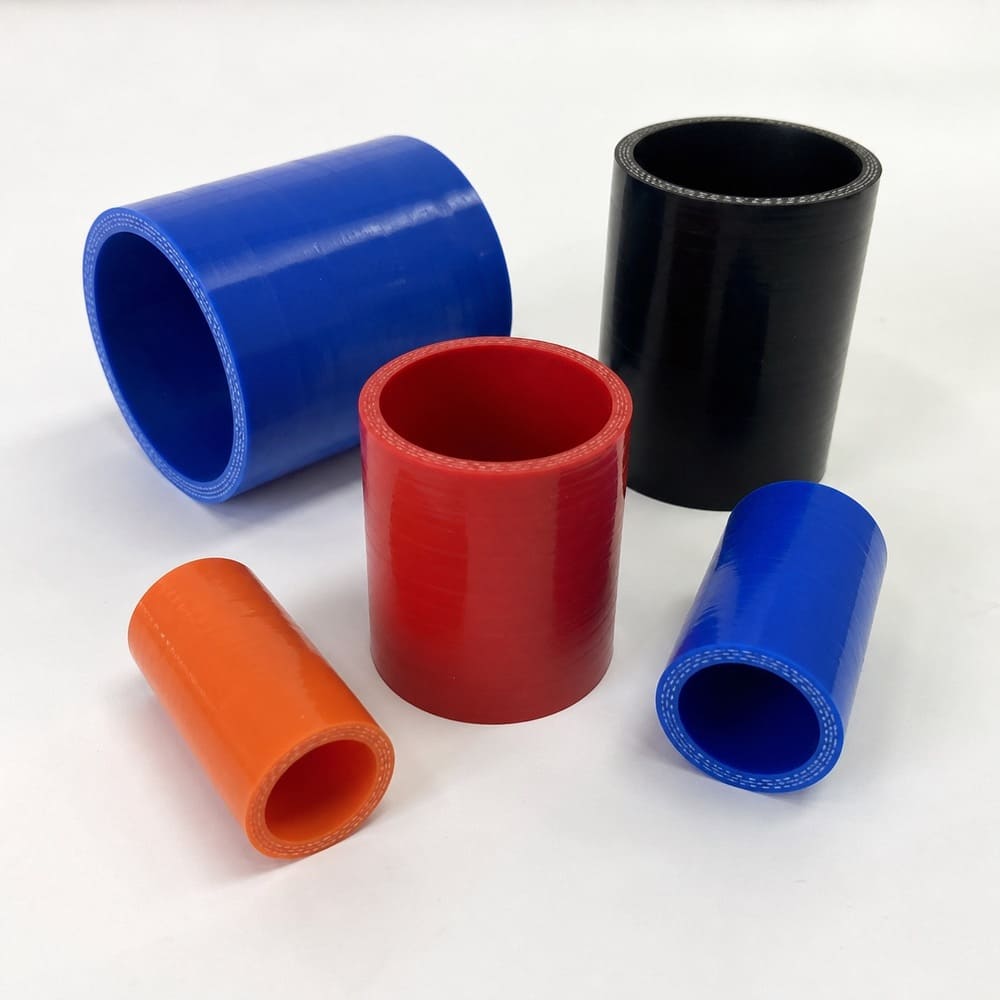

Silicone Coupler Hoses
Silicone coupler hoses are short straight connectors used to join pipes, tubes, or equipment ports with stable fit and flexibility.
LEARN MORE

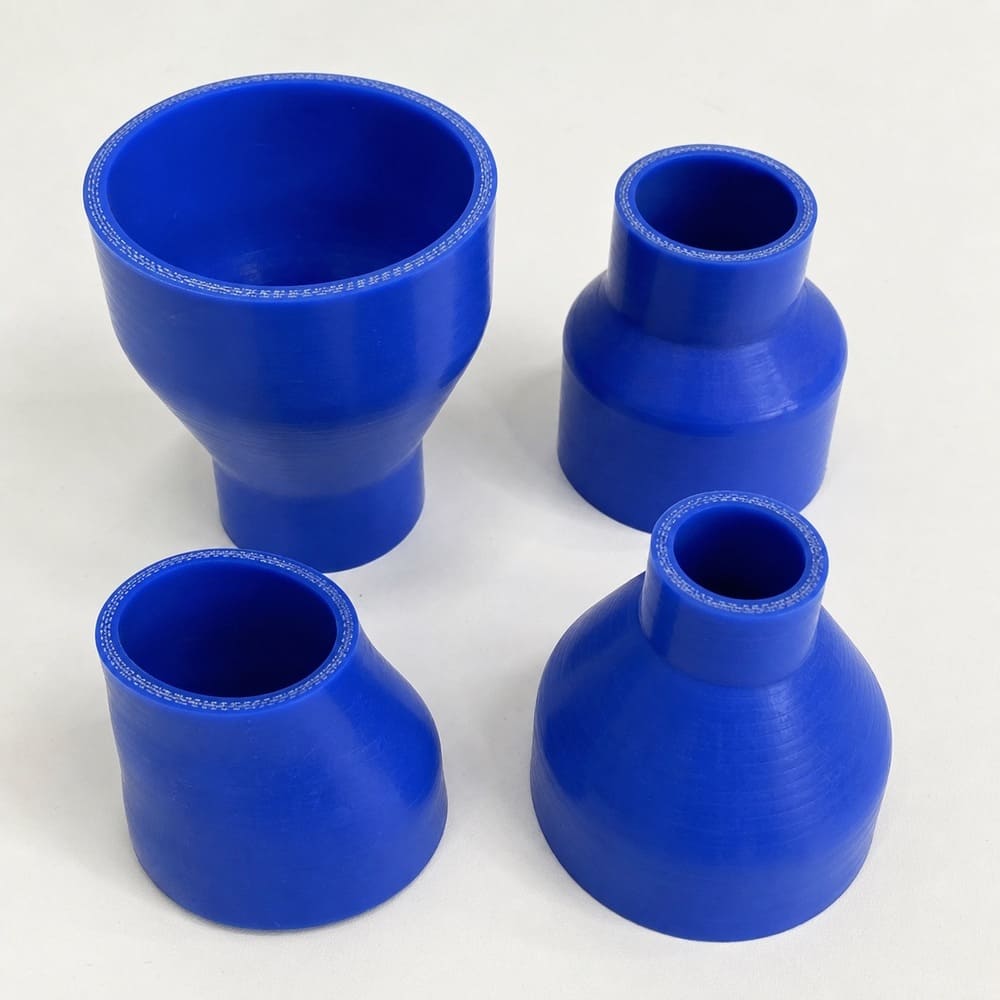

Silicone Reducer Hoses
Silicone reducer hoses connect two different pipe or tube diameters while maintaining a flexible and reliable transition.
LEARN MORE

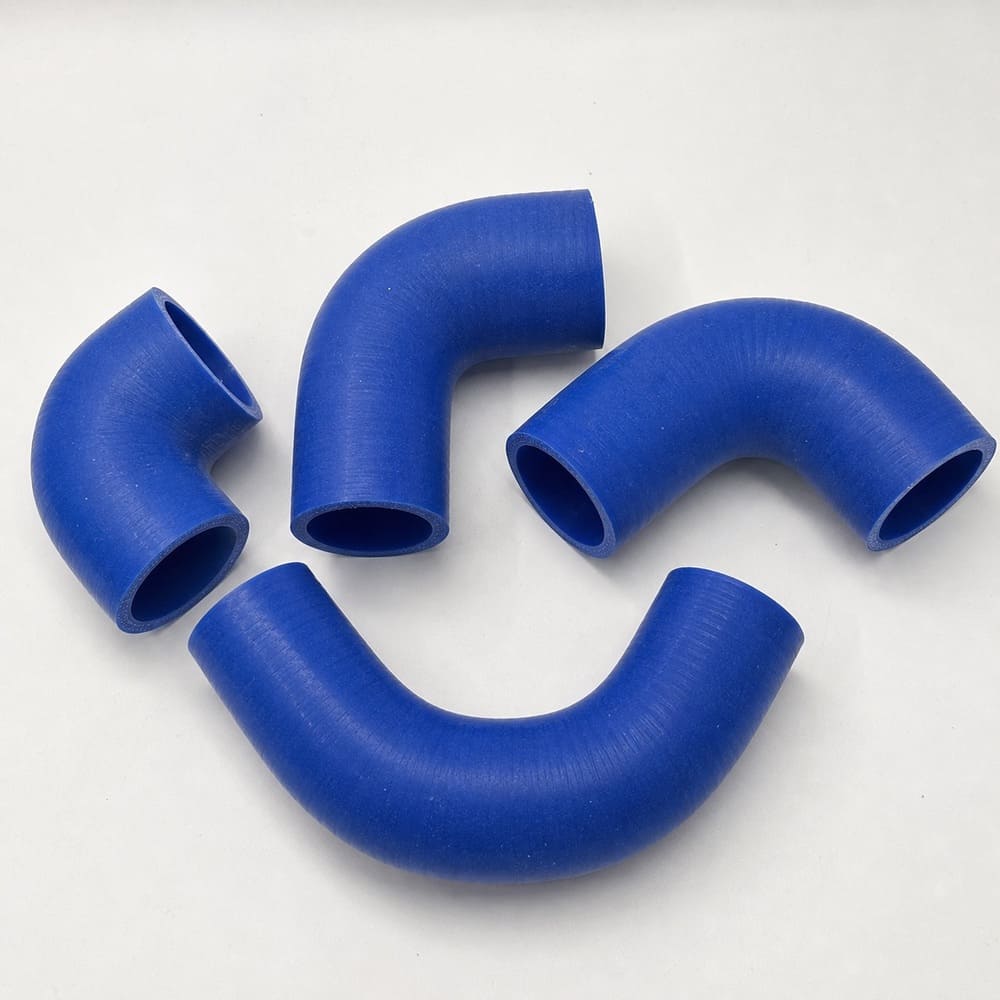

Silicone Elbow Hoses
Silicone elbow hoses are angled hose sections, including 45°, 90°, 135°, and 180° shapes, used where the connection path needs to change direction.
LEARN MORE

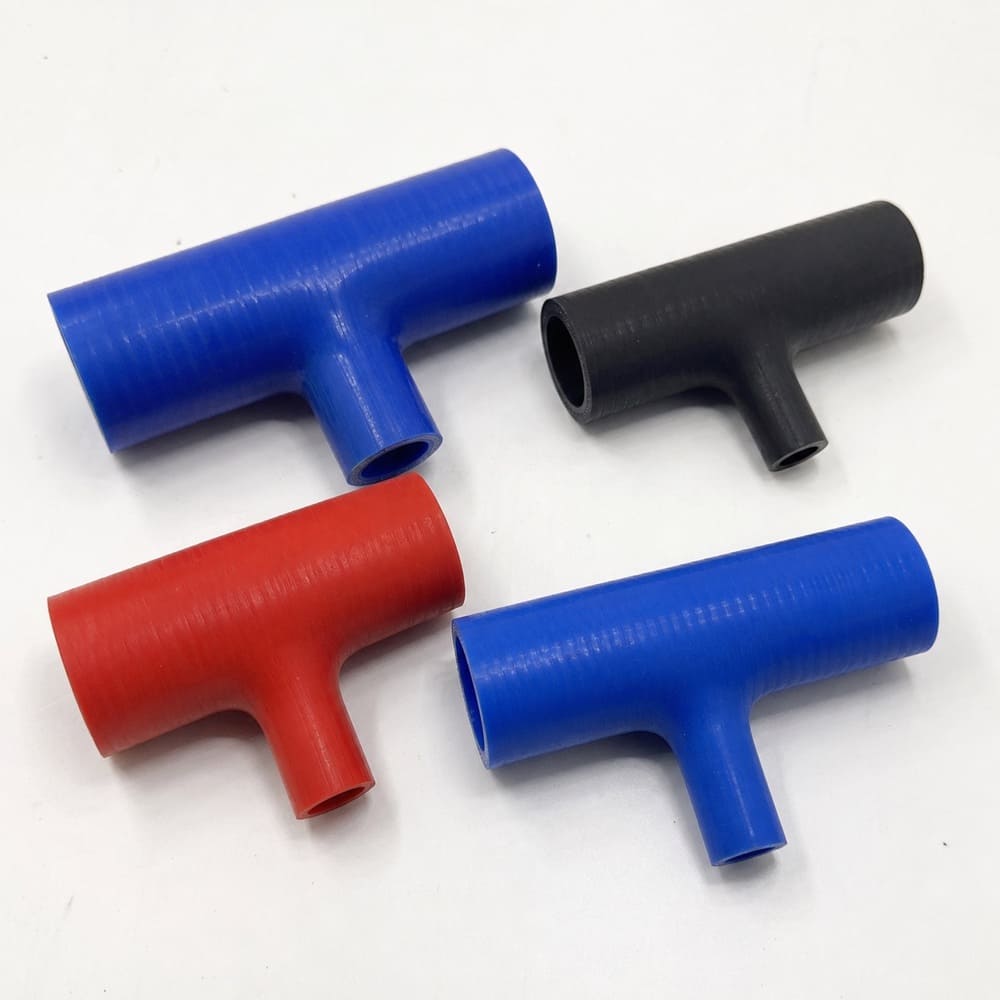

Silicone T Hoses
Silicone T hoses provide a three-way connection for branching, bypass, drainage, or custom equipment routing applications.
LEARN MORE

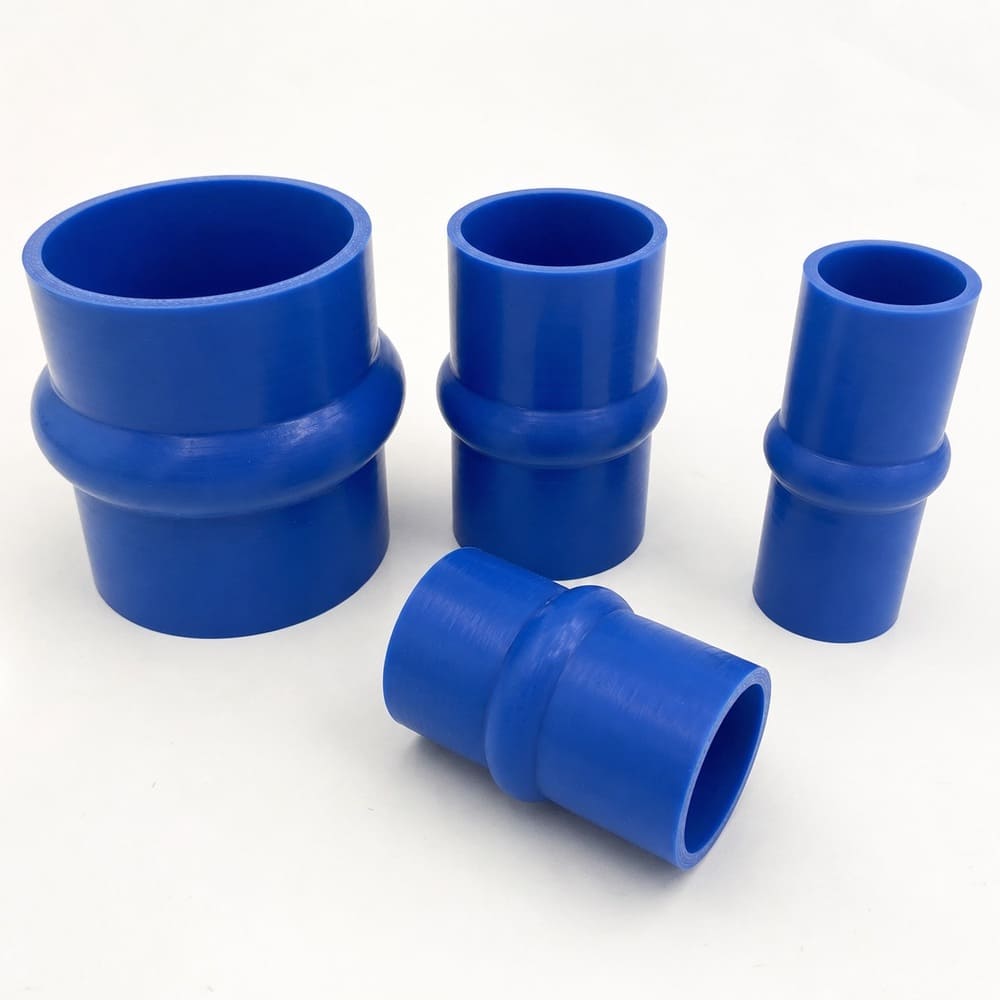

Silicone Hump Hoses
Silicone hump hoses include a raised flexible section that helps absorb vibration, movement, and minor alignment differences between connected parts.
LEARN MORE

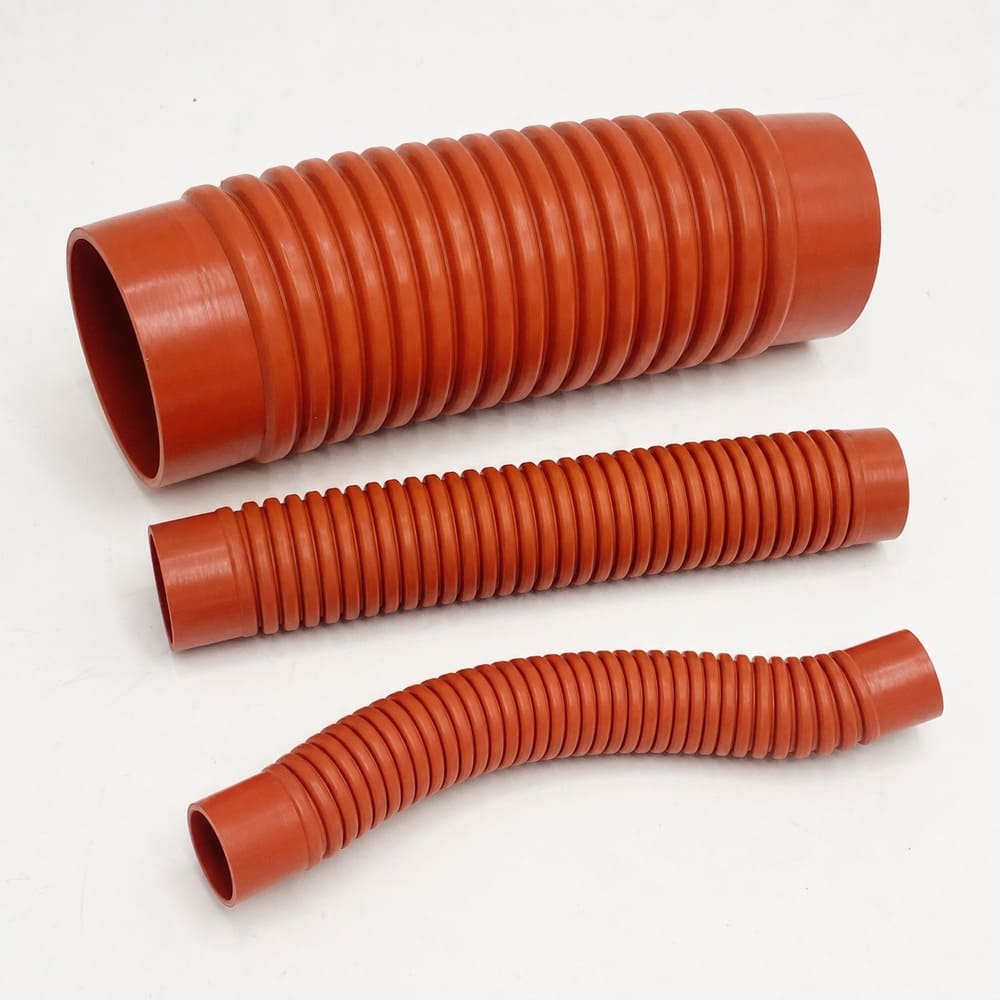

Convoluted Silicone Flex Hoses
Convoluted silicone flex hoses use a corrugated structure for improved bending flexibility in compact or movement-prone installations.
LEARN MORE

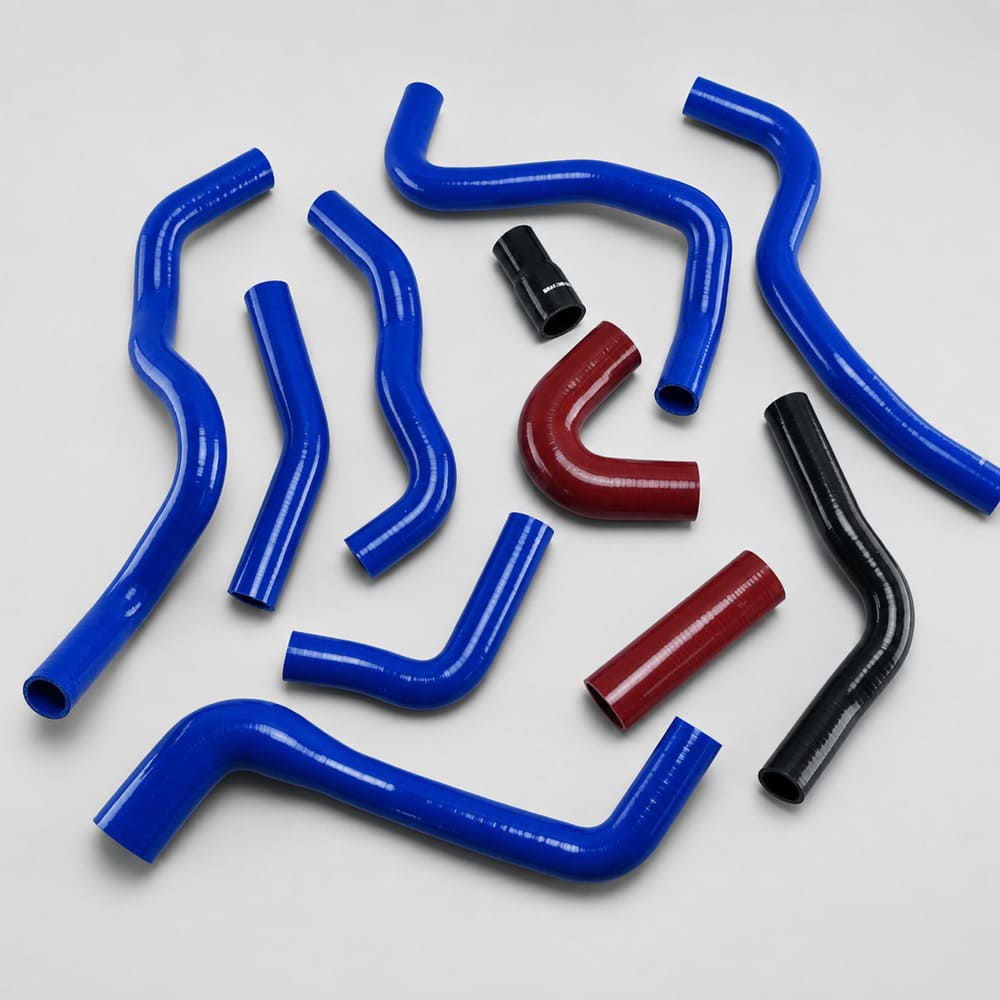

Radiator Silicone Hoses
Radiator silicone hoses are used in cooling systems to transfer coolant between radiators, engines, and related thermal management components.
LEARN MORE

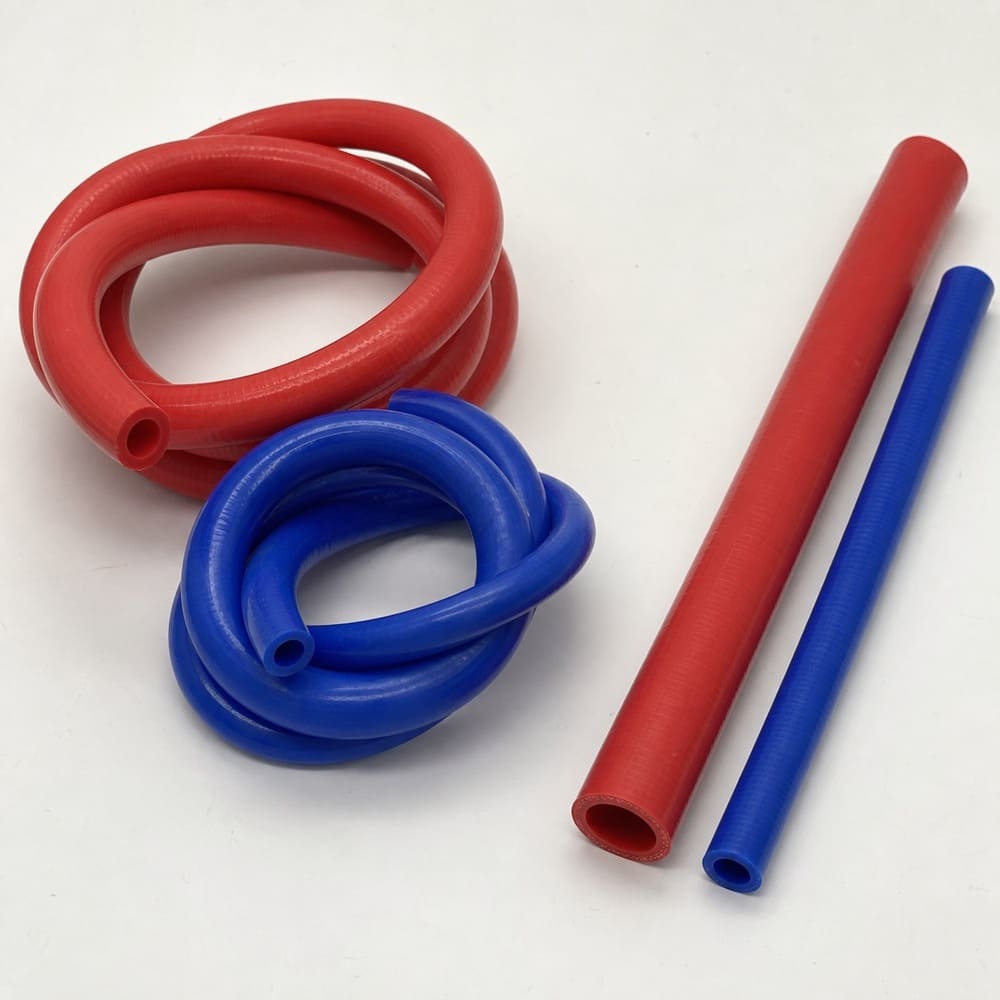

Heater Silicone Hoses
Heater silicone hoses are designed for hot water or heater circuit connections where heat resistance and flexible routing are required.
LEARN MORE

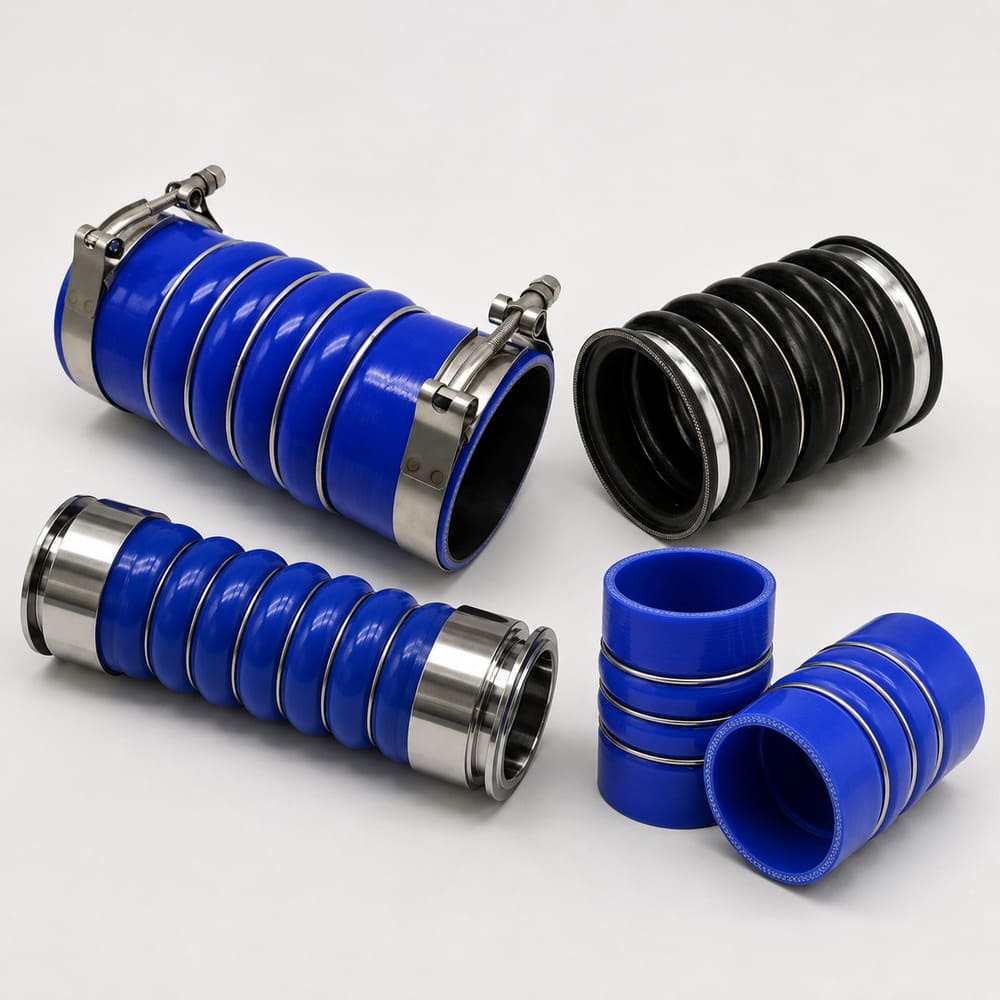

Charge Air Cooler Silicone Hoses
Charge air cooler silicone hoses connect intercooler and air intake system components in applications requiring heat resistance and stable airflow routing.
LEARN MORE

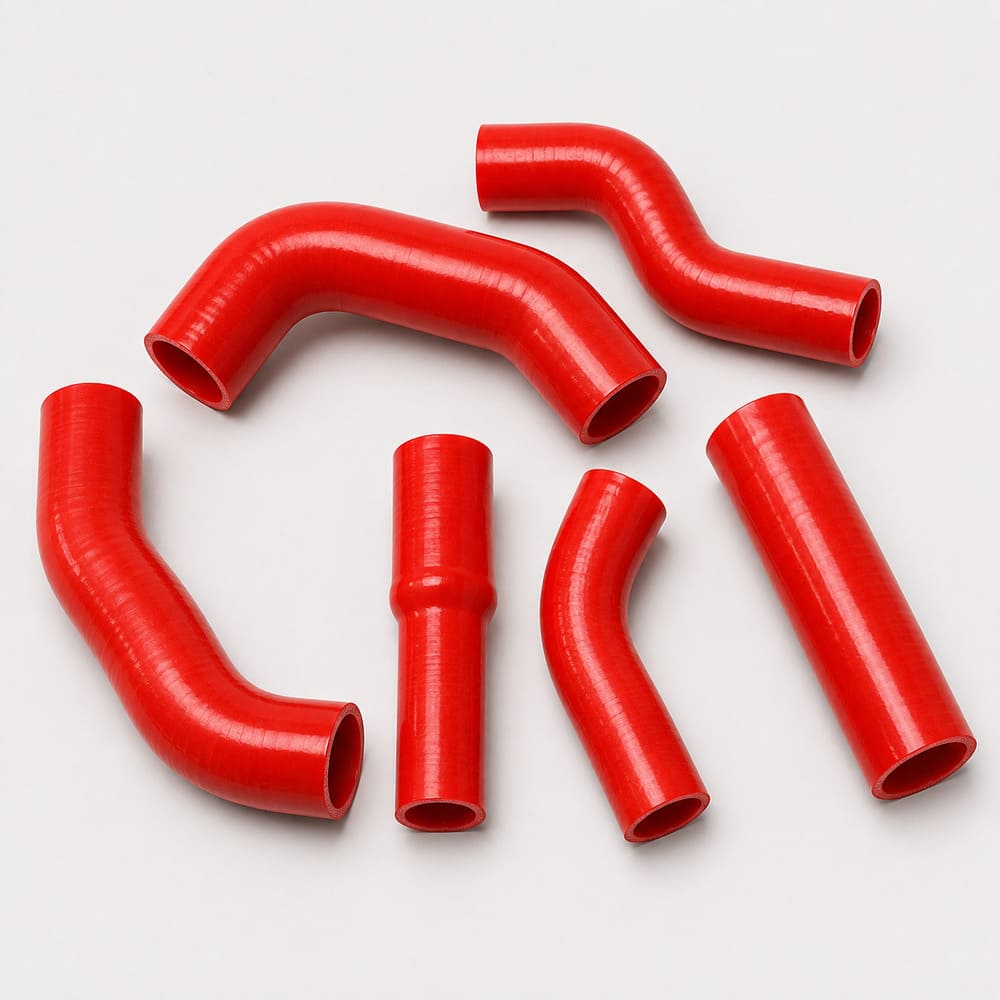

Boost Silicone Hoses
Boost silicone hoses are used in pressurized air systems where flexibility, reinforced construction, and secure connection performance are important.
LEARN MORE

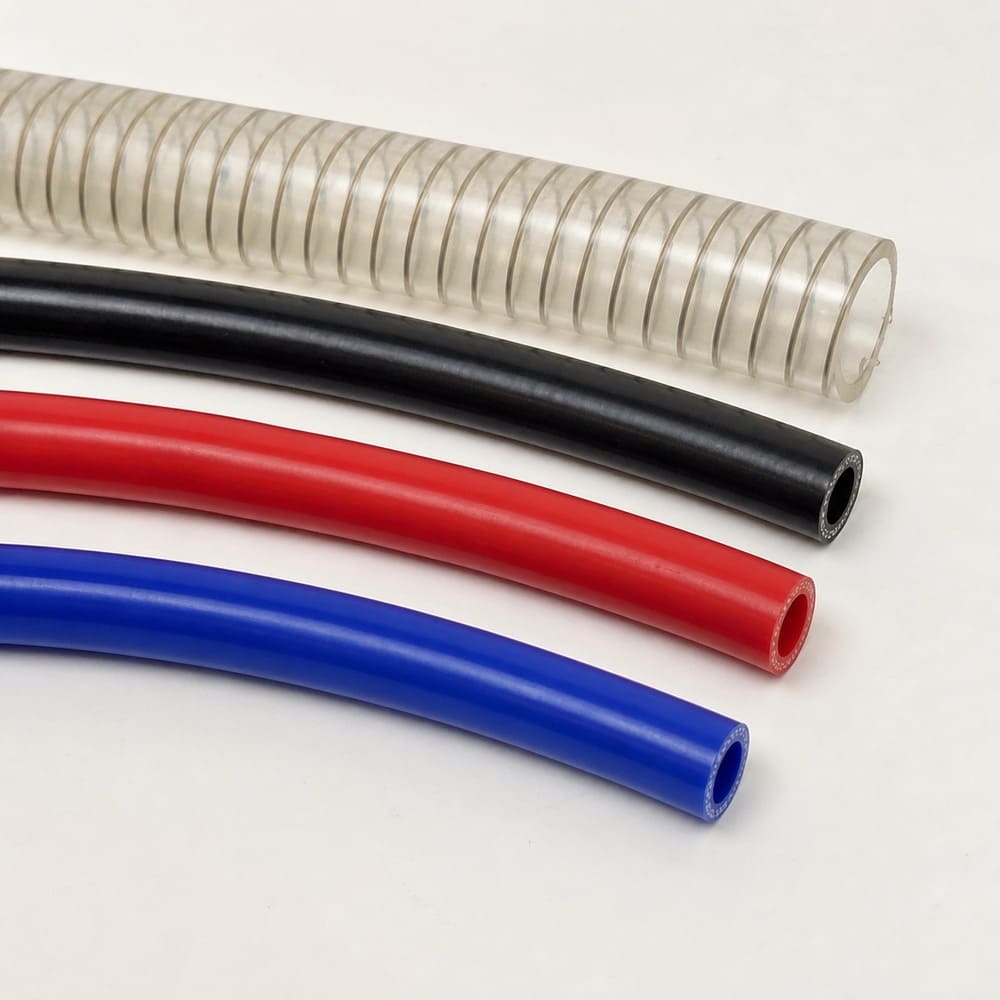

Vacuum Silicone Hoses
Vacuum silicone hoses are used for vacuum lines and low-pressure control connections that require flexibility, sealing stability, and heat resistance.
LEARN MORECore Pain Points of Silicone Hoses and How Pandasoft Solves Them
Silicone hoses can perform very differently depending on media exposure, pressure, temperature, reinforcement, and clamp design. Pandasoft reviews these technical risks before recommending a hose material, structure, or production path.
| Pain Point | Why It Happens | Pandasoft Solution |
|---|---|---|
|

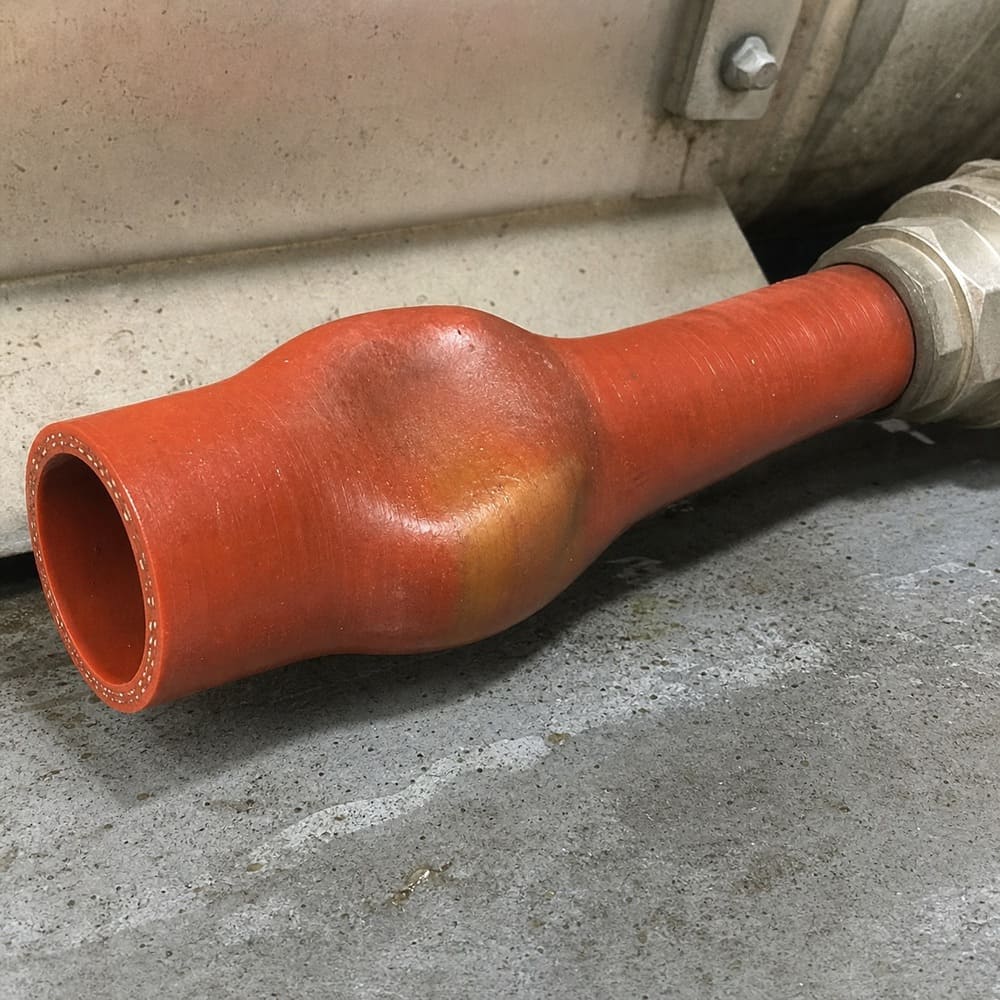

Swells & fails when exposed to oil, fuel or solvents
|
Pure silicone (VMQ) is inherently permeable to petroleum-based fluids. Gasoline, diesel, engine oil, brake oil and solvents can cause swelling, softening, discoloration and permeation. |
Fluorosilicone (FVMQ) inner liner engineered for oil/fuel circuits; Pandasoft confirms your exact media before recommending material.
|
|

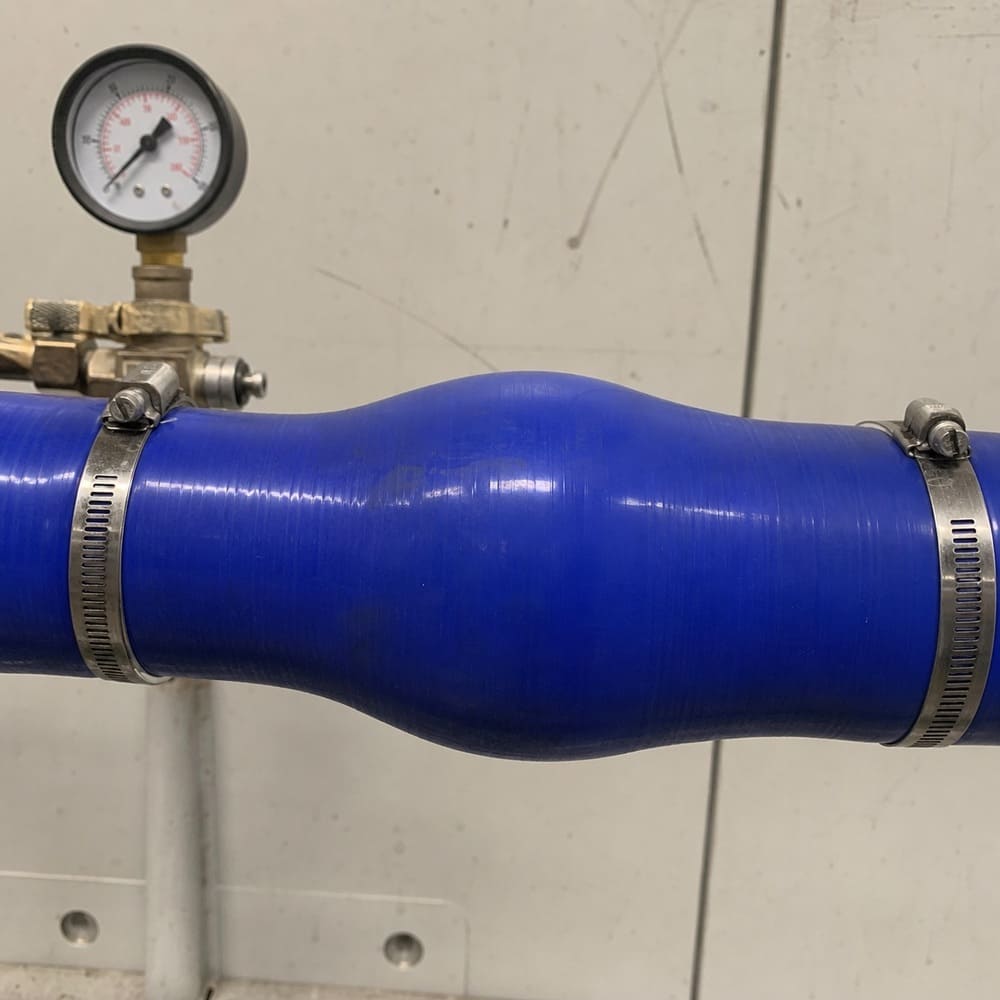

Bulges, collapses or bursts under pressure
|
Silicone's own mechanical strength is low; pressure rating depends almost entirely on reinforcement design. Too few plies or poor weave can lead to local bulging, vacuum collapse or rupture. |
3-5 ply polyester/aramid reinforcement with tight spiral braiding and integrated vulcanization; burst pressure >=1.2 MPa to SAE J20R3.
|
|

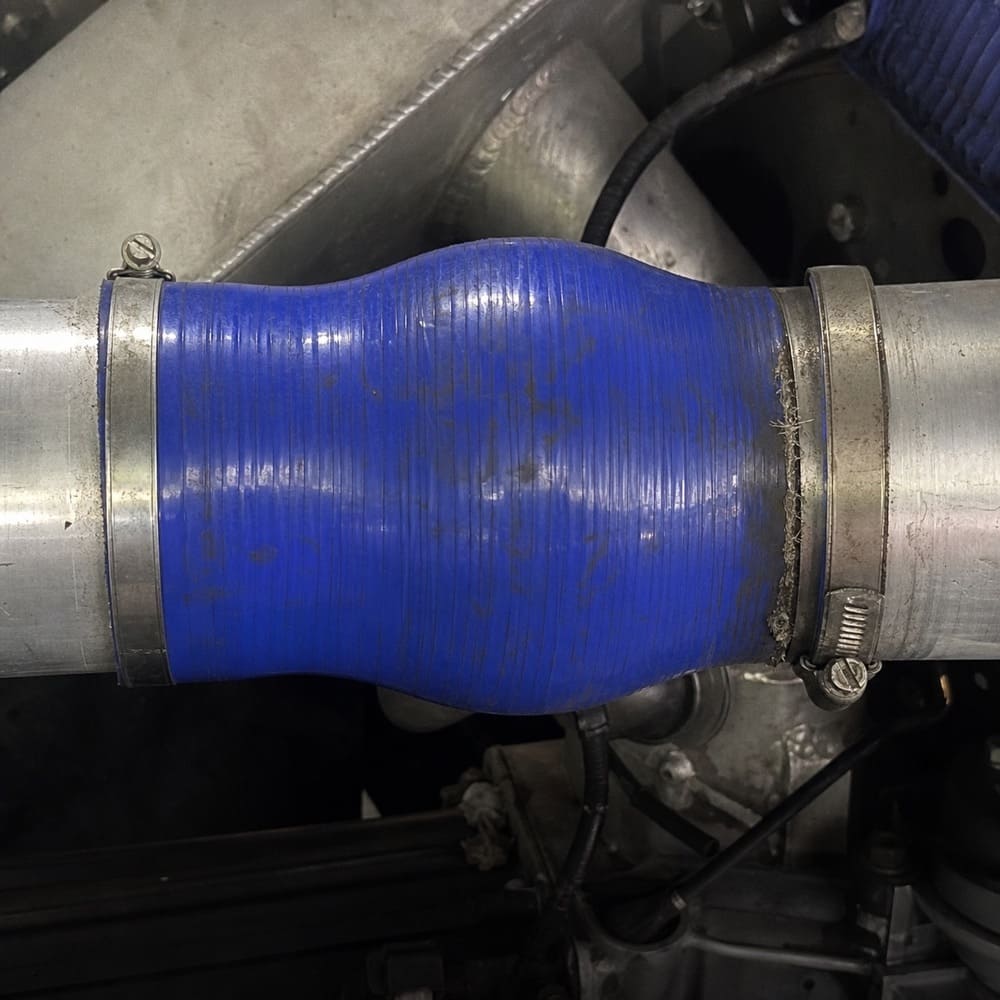

Expands under heat + pressure, causing boost/flow loss
|
Burst rating drops as temperature rises. Low-grade "radiator-style" hose can expand under load, silently leaking boost pressure even before visible failure. |
High-grade compound and reinforcement that hold shape under real operating temperatures; Pandasoft can provide pressure-temperature charts so you do not spec on room-temperature values only.
|
|

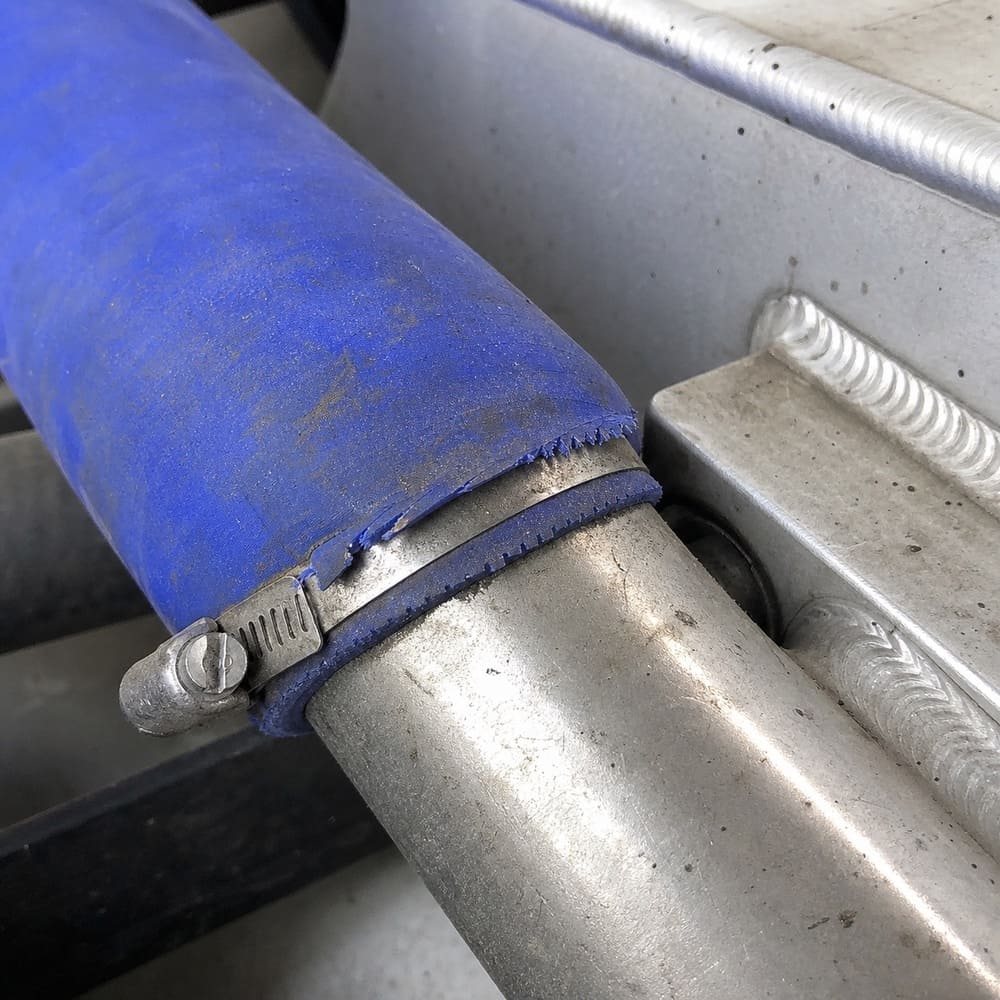

Cut or blown off at clamp connections
|
Soft silicone is easily sheared or mushroomed by sharp or unlined clamps. Higher clamp load can push the hose off the fitting, and vibration can walk clamps loose. |
Cuff/bead design with adequate hose end length; Pandasoft recommends T-bolt or constant-tension clamps for high-boost, high-vibration joints.
|
Send your media type, pressure range, temperature range, fitting design and installation condition. Pandasoft will help review the right material, reinforcement and connection structure before production.
Custom Silicone Hoses: The 7 Critical Parameters That Make or Break Your Application
From inner diameter and wall thickness to hardness, working temperature, fluid compatibility, and fitting conditions -- every undefined parameter is a potential failure point at assembly or mass production. Review these 7 parameters before placing your order to avoid leaks, burst hoses, and assembly failures.
| # | Parameter | Why It Matters | What Goes Wrong If Undefined |
|---|---|---|---|
| 01 |
Inner Diameter (ID) Flow rate & fitting interface |
ID is the primary dimensional reference for a hose. The fitting OD must match the hose ID precisely for a sealed interface. ID also directly determines the minimum bend radius -- a smaller ID allows tighter bends. | ID too large → poor seal on fitting, risk of blowoff or leakage. ID too small → fitting cannot be inserted, or excess installation stress. |
| 02 |
Outer Diameter (OD) & Wall Thickness Pressure rating & routing clearance |
OD determines whether the hose can pass through clamps, brackets, and bulkhead holes. Wall thickness directly governs pressure resistance and resistance to vacuum collapse. Note: as ID increases across a product series, rated working pressure typically drops from ~200 PSI down to ~75 PSI. | Insufficient wall thickness → ballooning under pressure, collapse under vacuum, or burst failure. Excessive wall thickness → reduced flexibility, larger bend radius, and difficulty sealing under clamp compression. |
| 03 |
Hardness (Shore A) & Flexibility Minimum bend radius / kink resistance |
Hardness governs seal conformability and structural stiffness. Flexibility is measured by minimum bend radius -- the tightest bend achievable without kinking. Standard silicone hoses are typically ~65 Shore A. Extruded straight hoses forced into curved routing will spring back and stress the fittings at both ends. | Too hard → large bend radius, difficult routing in tight spaces. Too soft → susceptible to cut damage under clamps, deformation under pressure. Bending tighter than the minimum radius causes kinking, flow restriction, stress concentration, and eventual flex fatigue cracking. |
| 04 |
Working Temperature Continuous + intermittent peak values |
Both continuous operating temperature and intermittent peak temperature must be confirmed. Standard silicone hoses: −40°C to 200°C. High-temperature grades reach 300°C. Critical note: burst pressure degrades significantly at elevated temperatures -- commonly by more than 50% -- so room-temperature pressure ratings alone are insufficient for hot-service sizing. | Selecting hose based on room-temperature pressure rating only → burst failure in actual high-temperature service. Exceeding material temperature limits → hardening, cracking, and accelerated aging of the hose. |
| 05 |
Fluid Compatibility & Service Environment Media contact / ozone / UV / vibration |
Internal media (fluid type) and external environment (oil mist, ozone, UV, vibration) must both be specified. Pure silicone (VMQ) is inherently not resistant to oils, fuels, or strong solvents. Oil-contact applications require a fluorosilicone (FVMQ) inner liner. Always verify against the supplier's chemical compatibility chart and conduct application-specific testing when required. | Using standard silicone in oil or fuel lines → swelling, softening, discoloration, permeation, and eventual leak or burst. This is the most critical and frequently overlooked failure mode in silicone hose selection. |
| 06 |
Fitting Connection Conditions Fitting type / clamp / cuff length / bead design |
Confirm fitting style (threaded / flanged / barbed), clamp type and torque, and cuff length or bead/flange design. Silicone is soft -- sharp-edged or unlined clamps will cut into the outer wall. For high-pressure or high-vibration applications, T-bolt or constant-tension clamps are recommended with adequate hose end length reserved. Industry data indicates incorrect fitting selection accounts for approximately 18% of early hose failures. | Clamp positioned too close to hose end or insufficient end length → hose end mushrooms and blows off the fitting under pressure. Vibration → progressive clamp loosening and leakage. Sharp-edged clamps → outer wall cutting and premature failure. |
| 07 |
Reinforcement & Geometry Ply count / fabric layers / straight, elbow, reducer |
Custom hoses also require specification of reinforcement structure (ply count, polyester or aramid fabric layers) and molded geometry (straight, 45°/90° elbow, reducer, or hump hose). Curved routing should use molded elbows rather than forcing a straight hose into a bend -- molded shapes eliminate springback stress on fittings. | Insufficient reinforcement → pressure rating not met, ballooning or collapse. Geometry mismatch → forced bending of straight hose creates springback stress that continuously loads the fitting connections, leading to fatigue failure at the interface. |
Extrusion-Focused, Engineering-Backed Silicone Manufacturing
Custom silicone hose production depends on stable extrusion, controlled processing, and the ability to support related custom silicone parts when a project requires more than a basic straight hose.

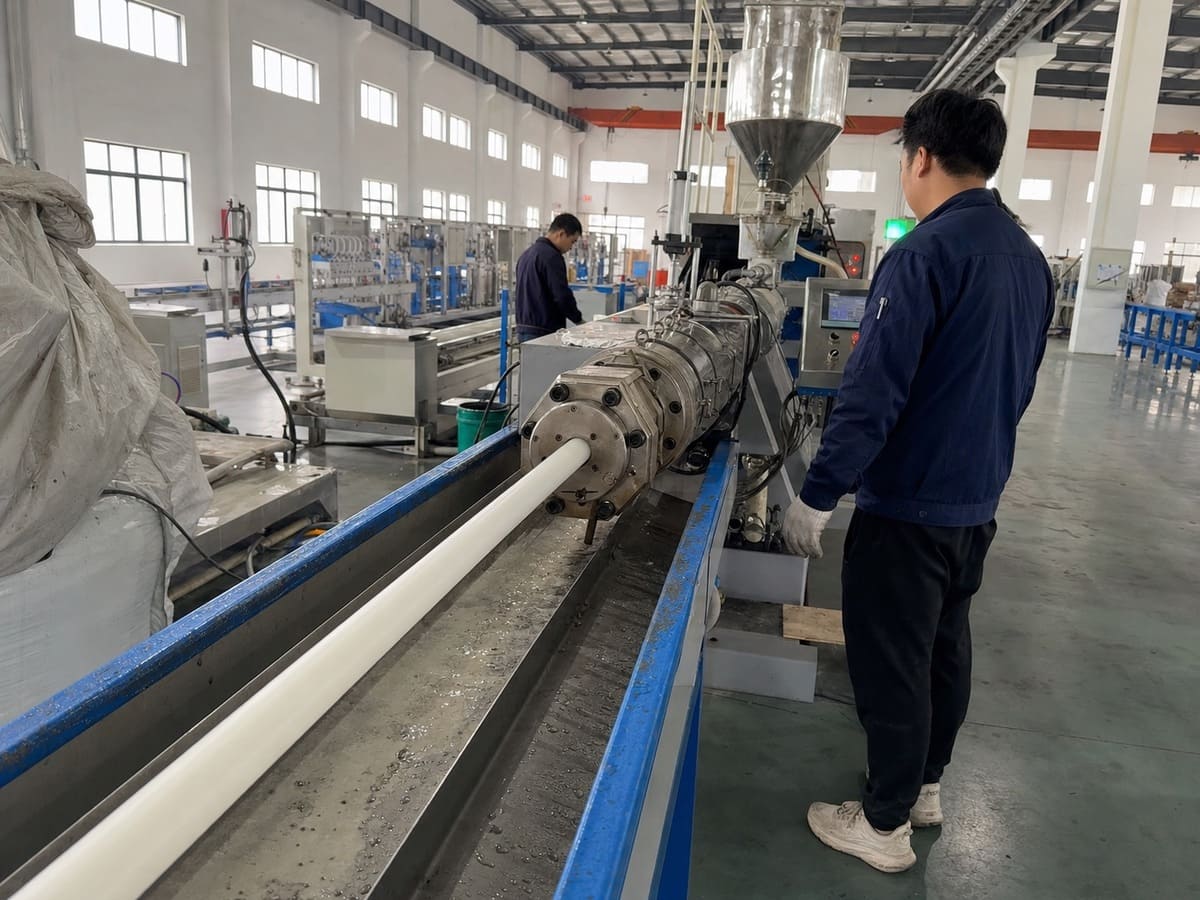

Extrusion Line
Stable silicone hose & tube extrusion

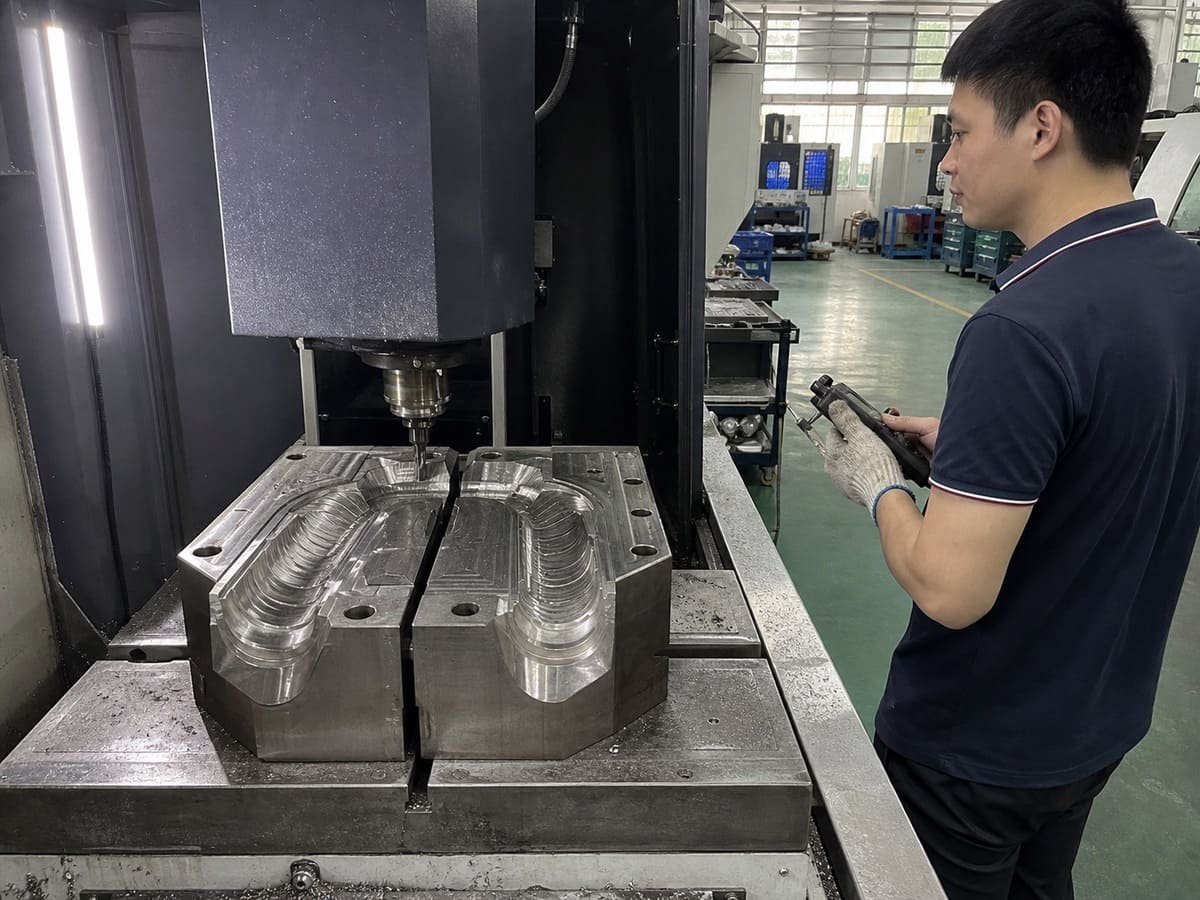

Mold Processing
CNC & EDM precision mold machining

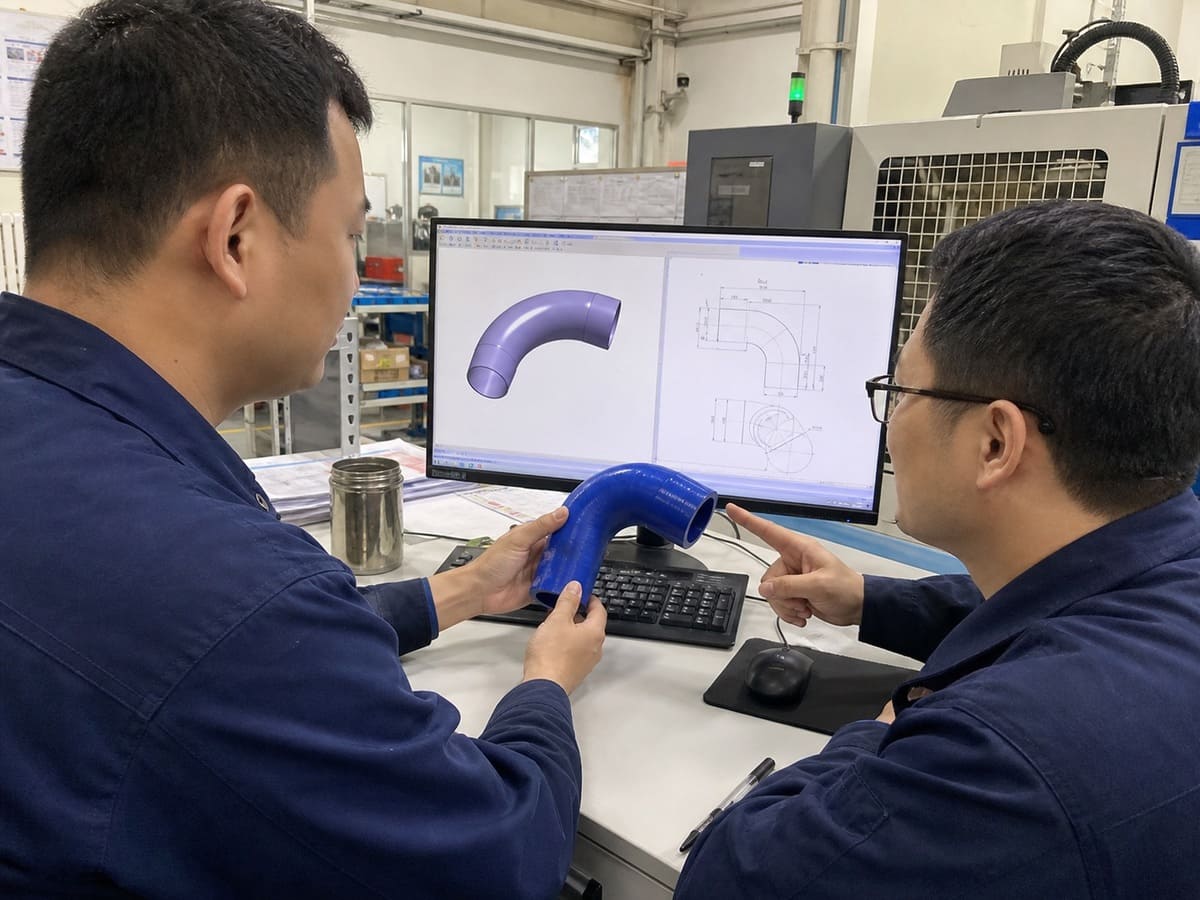

CAD / Review
DFM analysis & 3D/2D engineering review

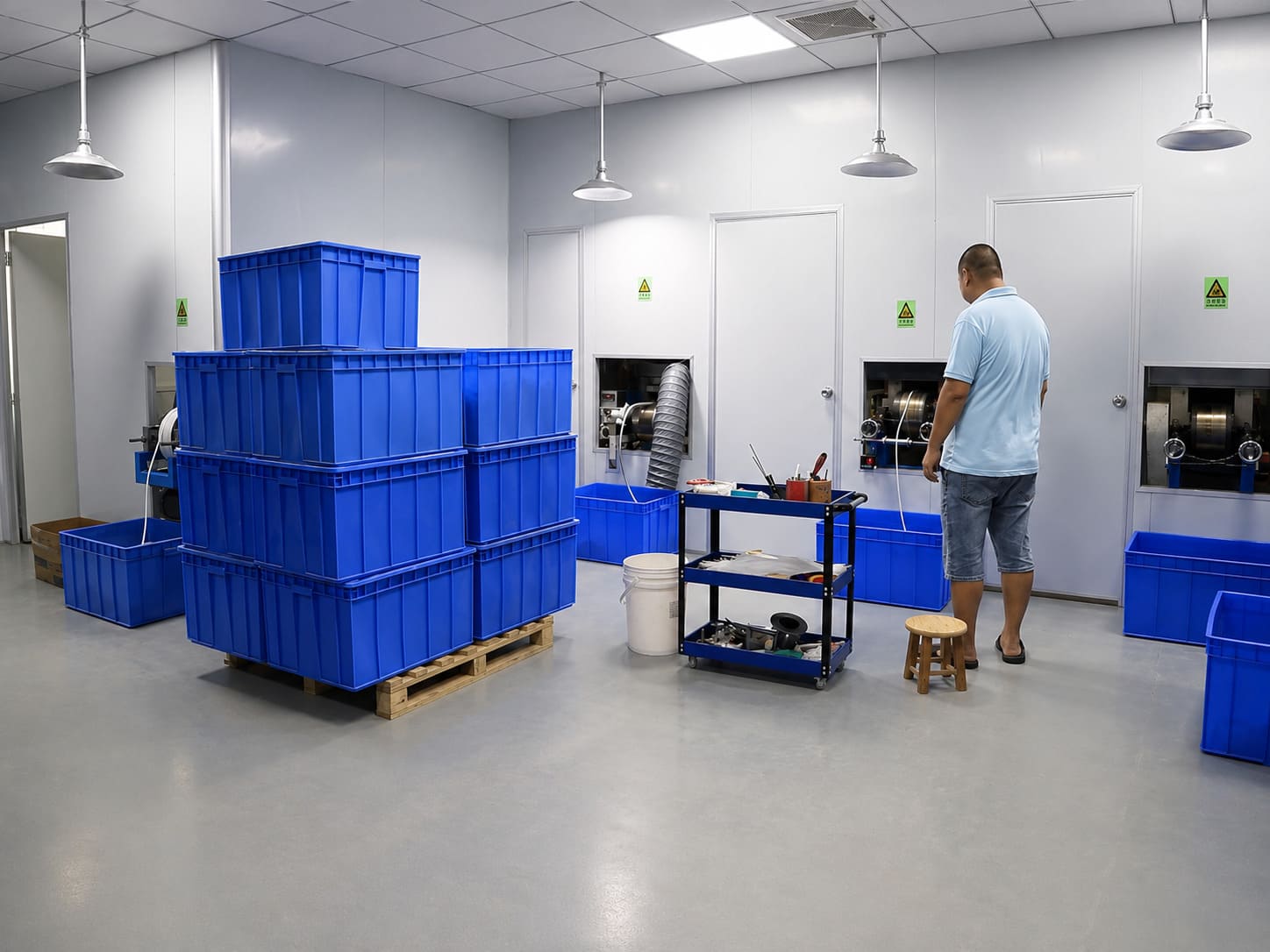

Production Floor
16,000 sqm · 9 lines · 110+ staff
800+
Existing Molds
±0.05 mm
High-Precision Tolerance
1.2M pcs
Monthly Capacity
7+ Years
Manufacturing Experience
Quality Testing for
Custom Industrial Silicone Parts
Every custom industrial silicone order follows controlled quality checks, covering raw material testing, dimensional inspection, hardness testing, mechanical performance tests, in-process inspection, final inspection, and compliance support for industrial applications.
Dimension Inspection
Shore A Hardness Testing
Tensile Strength Testing
Tear Strength Testing
Compression Set Testing
Heat Aging Testing
Color Difference Testing
Visual Defect Inspection
Follow Pandasoft's 3-Step Framework
to Select the Right Silicone Hose Material
Start with media contact and temperature to determine the base compound, then apply industry regulations to define the grade and cure system, and finally use pressure and routing requirements to specify the reinforcement structure. This is Pandasoft's core material selection logic -- a misstep at any stage can lead to swelling, hose burst, or failed customer audits.
At Pandasoft, we break down the complex material selection process into a "3-step material determination" framework: Step 1 -- select the base compound (standard VMQ or fluorosilicone FVMQ); Step 2 -- define the cure system and compliance grade (platinum vs. peroxide; food/medical grade); Step 3 -- specify the reinforcement structure based on pressure and routing. Follow these three steps and you will rarely make the wrong call.
Base Compound Selection
Select the Base Compound -- Pandasoft Asks "What Media Does It Contact?" First
This is the critical fork in material selection -- and the most common pitfall in silicone hose sourcing. Before accepting any order, Pandasoft always confirms the contact media first, specifically to help you avoid costly mistakes at this stage.
Standard Silicone (VMQ)
- High-temperature, weather, ozone, water/steam/coolant resistance
- Ideal for cooling systems, hot air, food & beverage, medical -- any non-oil/fuel application
⚠ Limitation
Not inherently resistant to oils, fuels, or strong solvents. Misuse causes swelling and failure.
Fluorosilicone (FVMQ)
- Adds oil, fuel, and solvent resistance on top of silicone flexibility and temperature performance
- Operating range: −70°C to 300°C
- Automotive turbo/fuel systems, aerospace fuel hoses, chemical environments
Pandasoft Practice
FVMQ inner liner (media-contact layer) + standard silicone outer layer -- balancing cost and flexibility.
Cure System & Compliance Grade
Define Cure System & Compliance Grade -- Pandasoft Matches Your Industry Requirements
Once the base compound is confirmed, Pandasoft selects the cure method and certification grade based on the regulatory requirements of your industry.
Platinum-Cured
Extremely low extractables, transparent, non-yellowing, no by-products. The minimum requirement for medical, biopharma, and premium food applications.
Certifications Pandasoft Supports
Peroxide-Cured
Lower cost, durable, excellent thermal stability. Suitable for general industrial and automotive applications where purity requirements are not stringent.
Best For
General industrial fluid transfer, automotive cooling/air systems, any non-regulated application.
Pandasoft Decision Rule
Contact with human body / pharmaceuticals / premium food → Platinum cure + high-grade certifications
Pure industrial fluid transfer → Peroxide cure is more cost-effective
Reinforcement Structure & Shape
Select Reinforcement Structure & Shape -- Pandasoft Designs Around Your Pressure and Routing
Finally, Pandasoft determines the hose construction based on your system pressure, vacuum requirements, and routing path.
Unreinforced (Plain Wall)
Maximum flexibility, lowest pressure rating. Suitable for low-pressure (<50 PSI) and low-vacuum applications.
< 50 PSIBraid Reinforced
Polyester / fiberglass / aramid braid embedded in the wall. Medium-to-high pressure, good flexibility. Common in food and pharma fluid transfer.
Medium-High PressureMandrel-Wrapped (4-ply)
Fabric + silicone multi-layer co-cured as one unit. Higher pressure rating, suitable for exhaust and high-pressure systems. Burst pressure up to 1.2 MPa.
High PressureWire Reinforced
316 stainless steel helical wire. Resists vacuum collapse. Designed for vacuum and suction applications.
Vacuum / SuctionCustom Shape & Geometry
Straight hoses, 45°/90° elbows, reducers, and hump hoses. For routed assemblies with bends, Pandasoft recommends molded elbows rather than forcing bends on straight hoses. Automotive high-temp/high-pressure hoses typically use 4-5 layers of aramid/polyester fabric reinforcement.
Pandasoft Application Quick Reference Table
| Application | Base Compound | Cure / Grade | Reinforcement |
|---|---|---|---|
|
Automotive Cooling / Turbocharger (non-oil contact)
|
VMQ High-Temp Grade | Peroxide | 4-5 Layer Polyester / Aramid Fabric |
|
Automotive Fuel / Oil / Brake Systems
|
FVMQ Inner Liner | -- | Polyester / Aramid / Wire Reinforced |
|
Food & Beverage / Dairy Transfer
|
VMQ Food Grade |
Platinum
FDA
NSF-51
3-A
|
Braid Reinforced |
|
Medical / Biopharma Fluid Transfer
|
VMQ Medical Grade |
Platinum
USP VI
ISO 10993
|
Braid or Multi-Layer Wrap, Cleanroom |
|
Vacuum / Suction Systems
|
VMQ | Per Industry | 316 SS Helical Wire Reinforced |
|
Steam / Hot Fluid Transfer
|
VMQ High-Temp Grade | Per Industry | Multi-Layer Mandrel Wrap |
|
Aerospace Fuel Lines
|
FVMQ | Military / SAE Compliant | Aramid Braid Reinforced |
Ready to Specify Your Custom Silicone Hose?
Share your application details -- Pandasoft will recommend the right material combination within 12 hours.
Media type, temperature range, pressure requirements, industry certifications needed -- tell us your specs and we'll handle the rest.
Clear Project Path from
Evaluation to Mass Production
Pandasoft supports qualified B2B trial orders and bulk custom silicone hose projects with a clear sampling and production path.
Send Project Information
Drawing, sample, photo, CAD file, or specification sheet.
Application & Material Review
Confirm size, material, tolerance, connection condition, and packaging needs.
Sample Preparation
Sample delivery time is usually 6-8 days by express.
Mold or Tooling Confirmation
New mold development usually takes 15-20 days when required.
Signed Sample Approval
Approved samples are used as the reference standard for mass production.
Mass Production
Mass production usually takes 2-4 weeks after sample approval.
Final Inspection & Shipment
Finished products are inspected to AQL standard before shipment.
MOQ Information
Minimum order quantities by project type
-
Existing Mold Projects MOQ from 500 pcs
-
New Custom Mold Projects MOQ 500-1,000 pcs depending on part size, structure, material, and mold requirements
-
Custom Packaging MOQ from 1,000 pcs when required
Qualified trial orders are supported for B2B buyers.
Payment Terms
Standard B2B payment structure
Other payment arrangements may be discussed based on order scale and ongoing business relationship.
Custom silicone hose projects backed by measurable production results.
From end-fit accuracy to heat resistance, reinforcement stability, and reorder consistency, Pandasoft helps buyers turn hose samples and drawings into repeatable production programs.

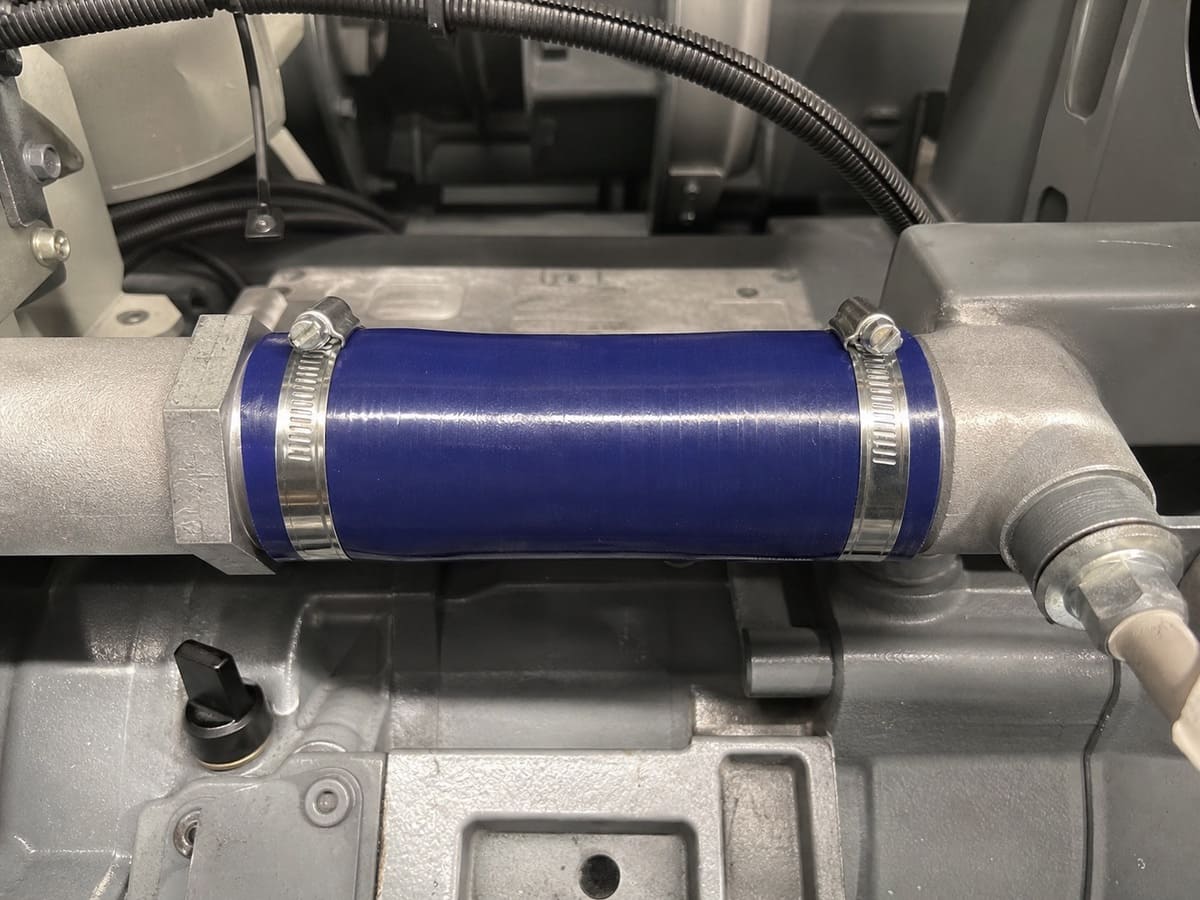

Canadian Industrial Equipment Manufacturer
42K custom connection hoses / annual supply
Equipment Connection Hoses -- Better End Fit and Less Rework
Custom silicone connection hoses were developed for repeated equipment assembly programs with tighter ID/OD control, stable wall thickness, and improved clamp-area fit. Pandasoft reviewed the hose sample, mating port dimensions, hardness requirement, and production tolerance before batch supply. Assembly rework dropped from 4.8% to 1.1%, with zero fit-related shipment holds over 12 months.

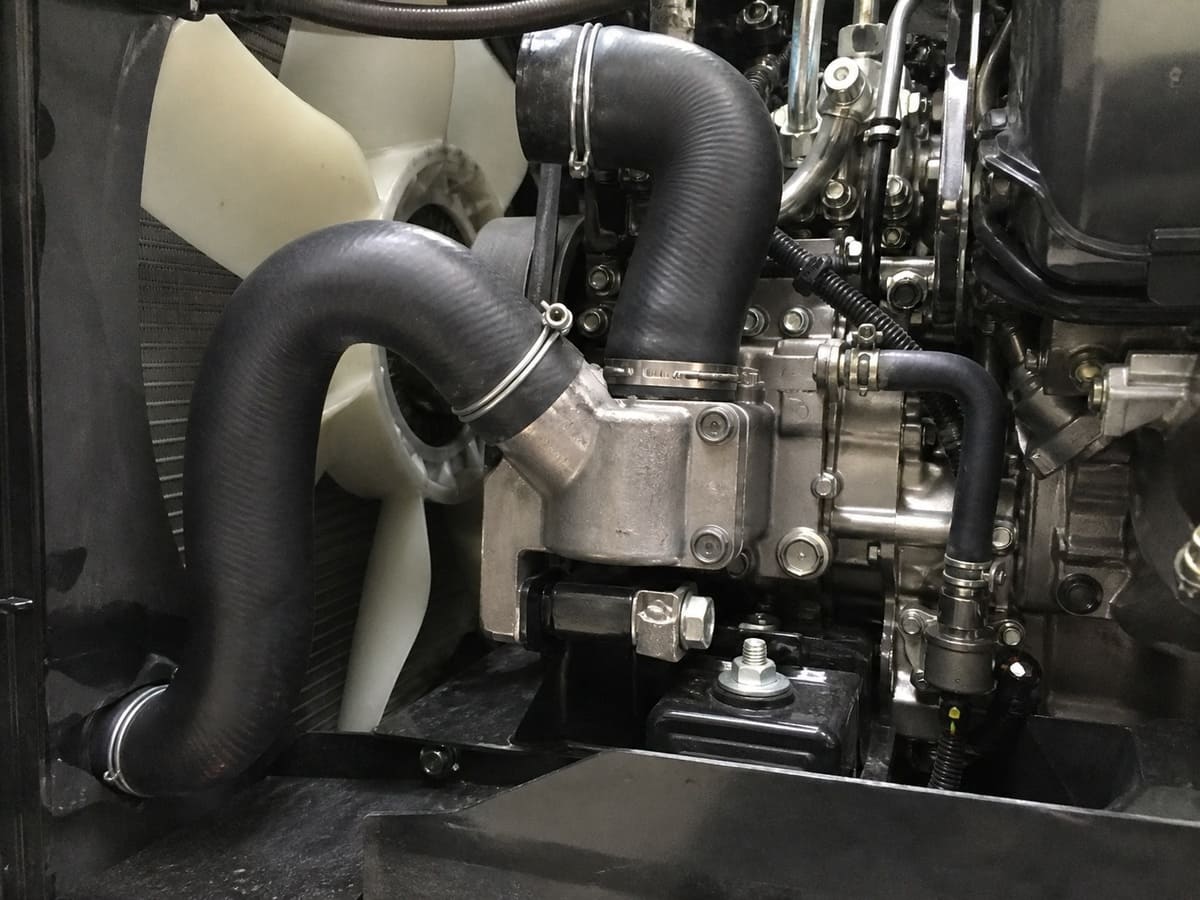

Netherlands Cooling System Supplier
118K radiator and heater hoses / year
Radiator and Heater Hoses -- Stable Batches Across Reorders
Multiple silicone radiator and heater hose shapes were supplied for replacement programs, including straight lengths, elbows, reducers, and formed hose sections. Material confirmation, color consistency, cut-to-length control, and AQL final inspection were applied across repeat orders. On-time delivery stayed above 96%, while field replacement complaints dropped by 34%.

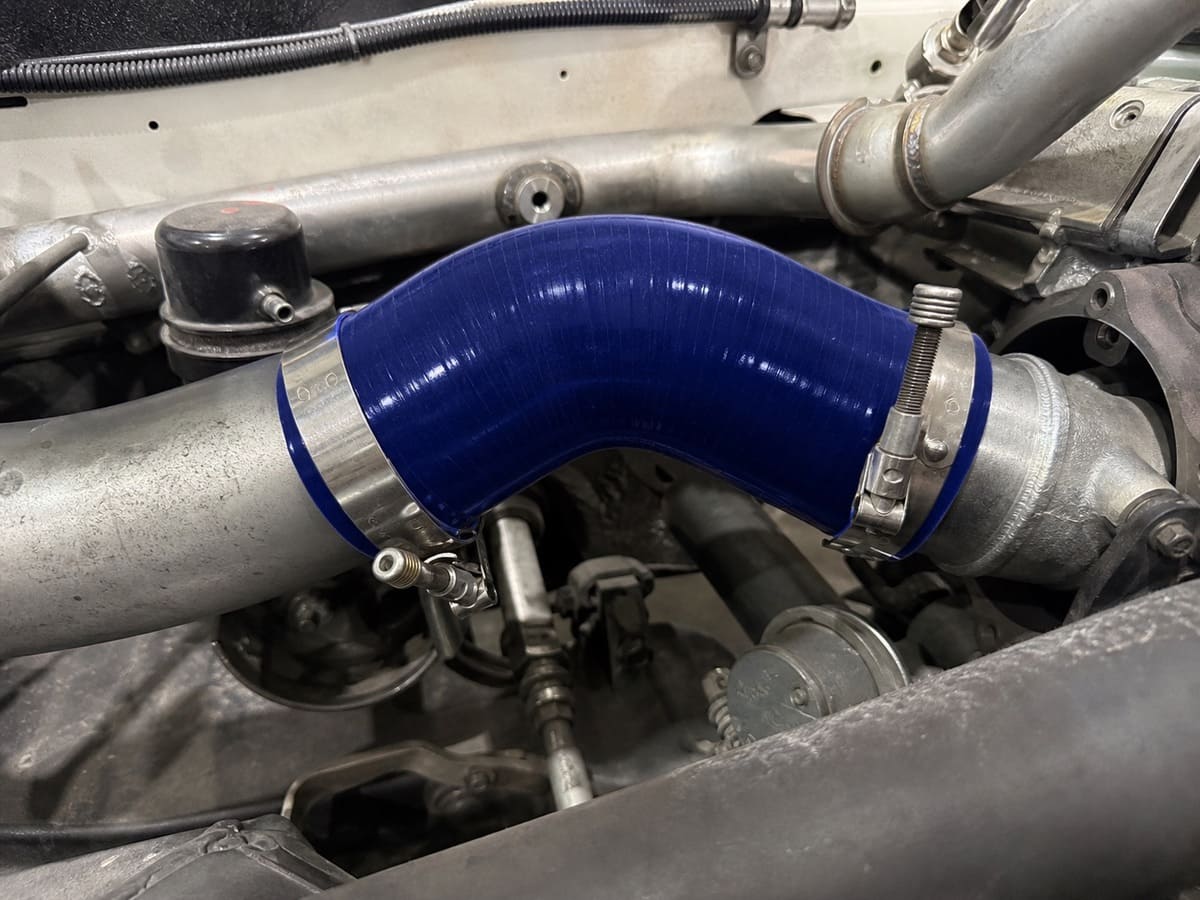

UAE Performance Parts Distributor
63K reinforced boost hoses / regional supply program
Reinforced Boost Hoses -- Better Shape Retention Under Heat
Reinforced silicone boost hoses were produced for aftermarket performance applications requiring cleaner clamp connection, better bend consistency, and stable appearance across reorder batches. Pandasoft reviewed reinforcement structure, hose end length, bend angle, color matching, and export packaging before mass production. Boost hose return rate decreased by 38%, and follow-up order volume increased by 72%.
200+ B2B buyers across 40 countries trust Pandasoft.
Frequently Asked Questions
Questions Before Starting a Custom Silicone Hose Project.
Can you make silicone hoses based on my drawing or sample?
What information should I provide for a custom hose quote?
Can you help choose the right silicone material?
Do you support flame-retardant silicone hose materials?
What is your MOQ for custom silicone hoses?
How long does sampling and mass production take?
Can you support custom color and packaging?
Get a Free Quote for Your Custom Industrial Silicone Parts
Send us your drawing, sample, photo, or technical requirements. Our engineering team will review your project and provide a practical mold feasibility review and factory quote within 12 hours.
- Free Mold Feasibility Review & Quote
- Direct Factory Pricing
- 12-Hour Expert Response
- Direct Factory Support, No Aggressive Follow-Ups
- Free Samples Available Upon Review
Mold Feasibility Review & Factory Quote
Engineer response within 12h.
Free review for your drawing, sample, material, hardness, tolerance, working environment, and project requirements.
