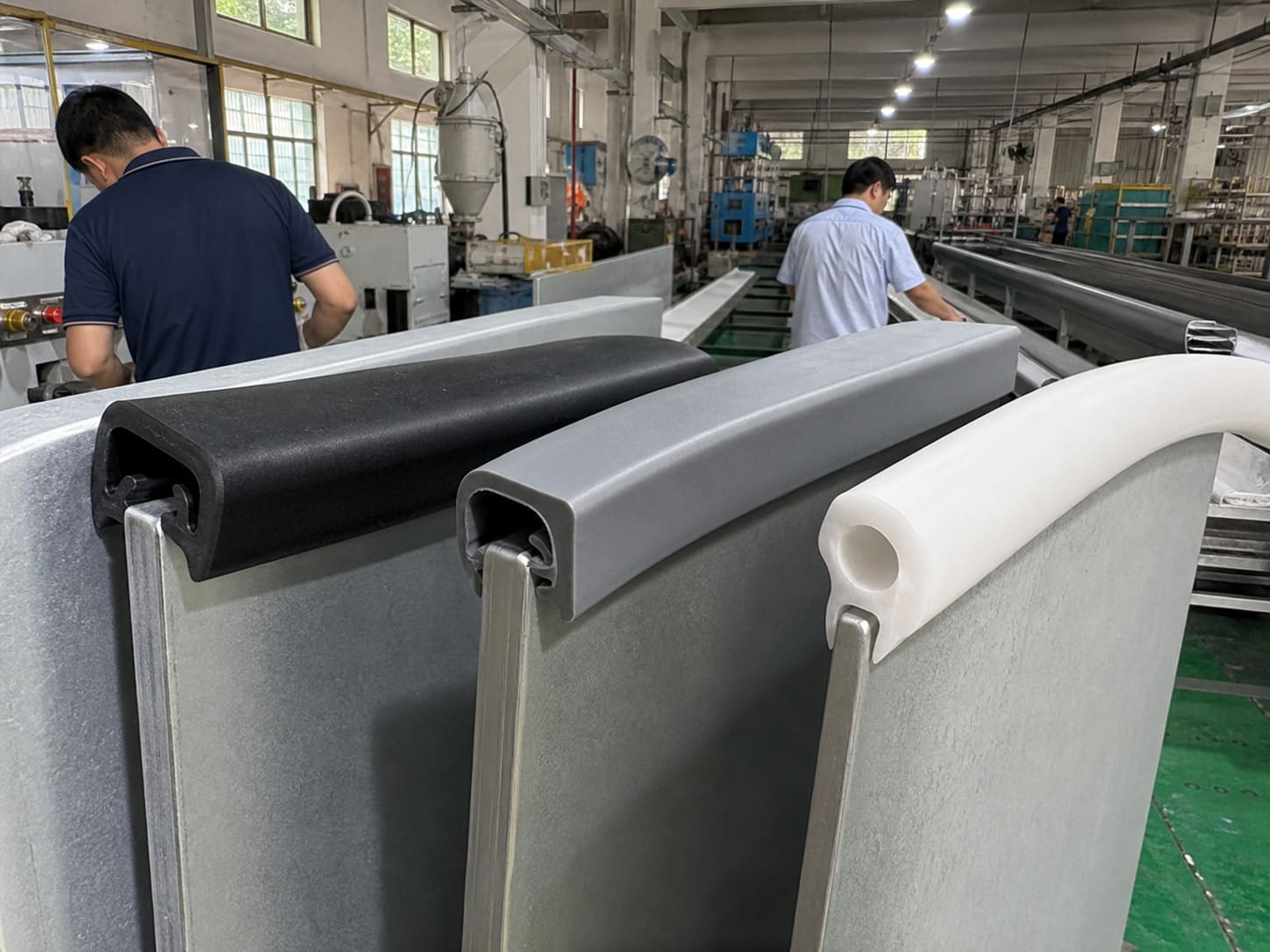

Custom Silicone Edge Trim Engineered for Reliable Edge Fit
Custom edge protection for industrial equipment, cabinets, sheet metal, and equipment housings. Pandasoft supports cross-section review, application-specific silicone selection, sample approval, and controlled mass production for B2B OEM and bulk projects.
- 7+ Years of Silicone Manufacturing Experience
- ISO 9001, IATF 16949 & ISO 14001 Certified
- Extrusion, DFM & Material Evaluation Support
- Qualified Trial Orders and Bulk Production
Browse by Edge Trim Profile
Explore custom silicone edge trim profiles for panel protection, sharp-edge sealing, wire harness routing, enclosure finishing, and OEM assemblies. Choose from U-channel edge trim, T-slot edge trim, P-profile trim, bulb edge seal, solid edge trim, and application-specific silicone edge protection strips.

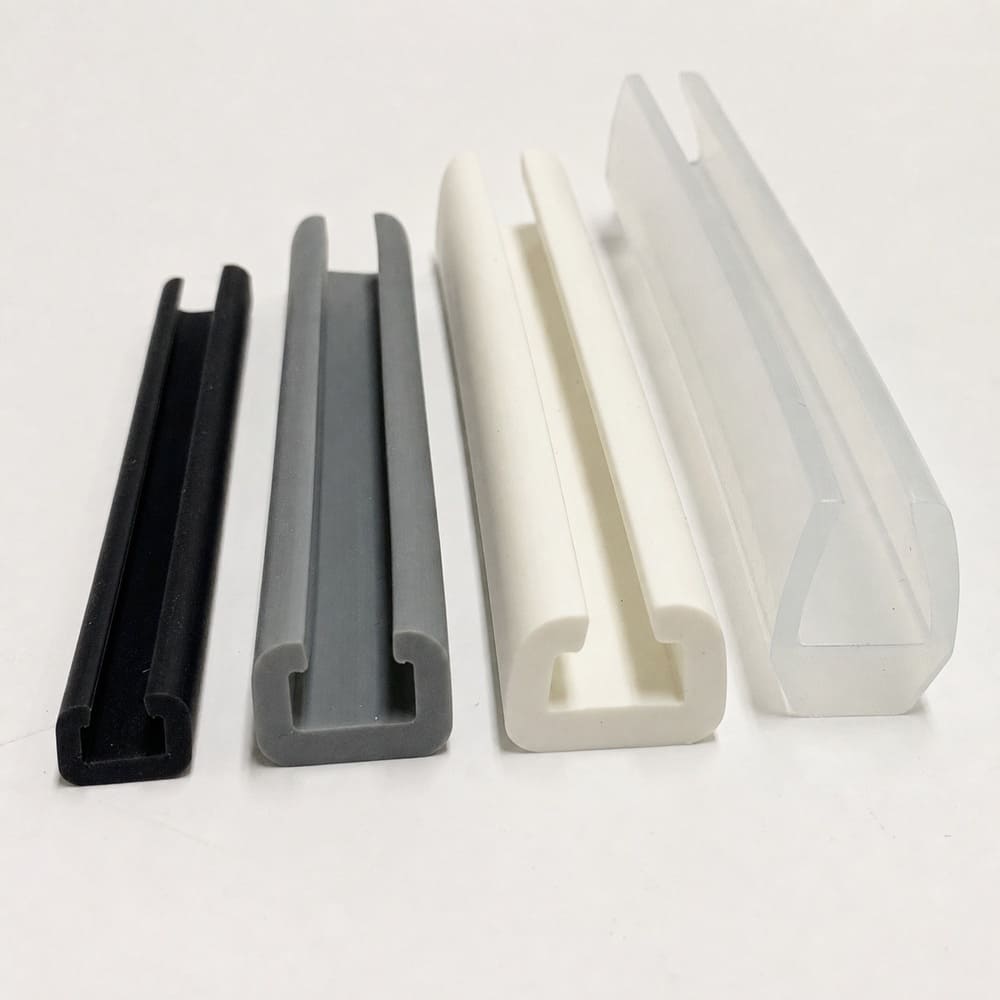

U-Channel Silicone Edge Trim
A U-shaped profile for covering exposed edges on sheet metal, cabinets, and industrial equipment where consistent channel fit is required.
LEARN MORE

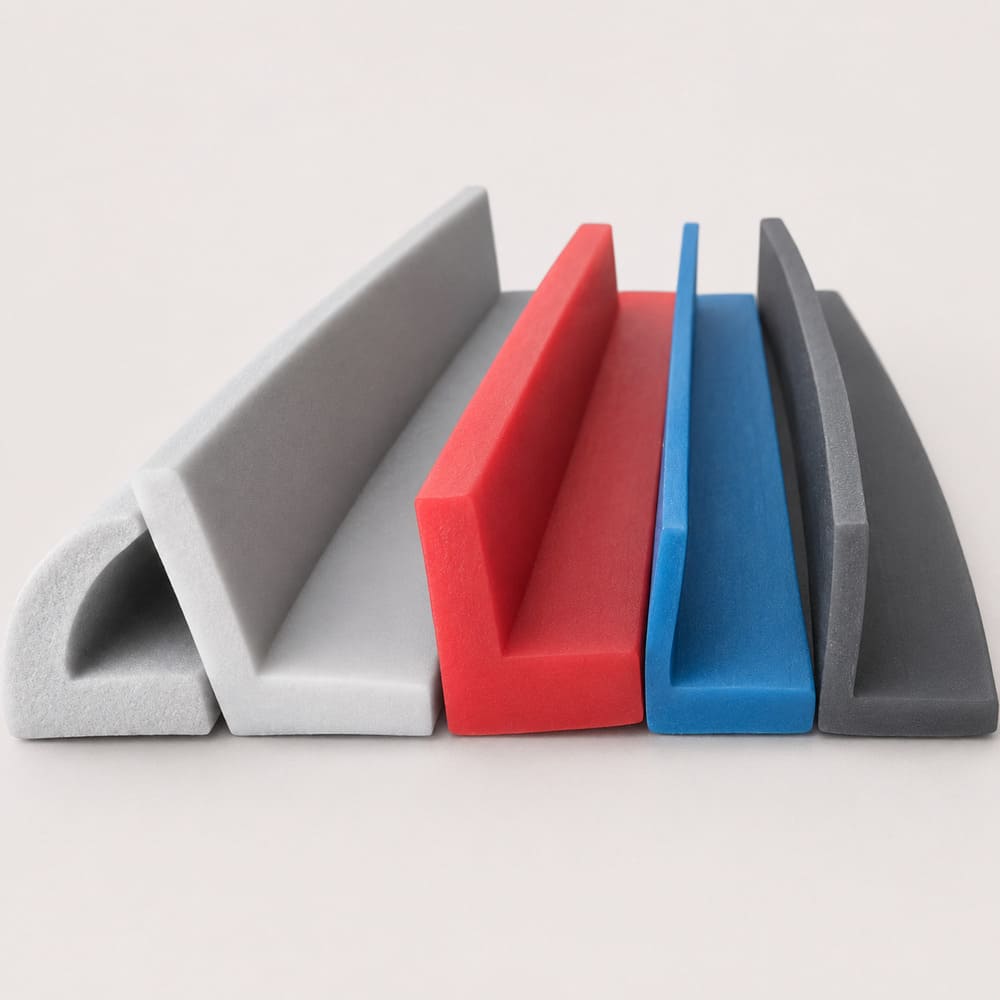

L-Profile Silicone Edge Trim
An asymmetric profile for protecting one side of an edge or corner on equipment housings, panels, and assembly surfaces.
LEARN MORE

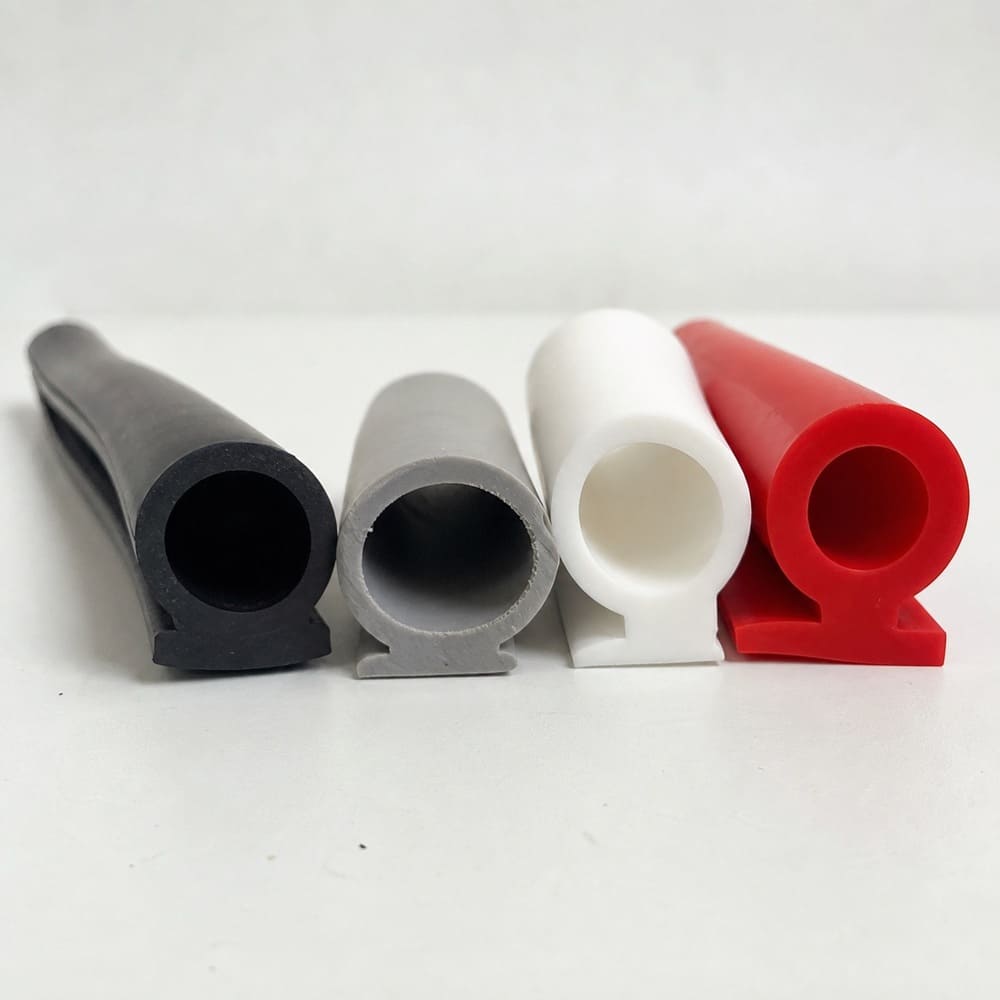

P-Profile Silicone Edge Trim
A profile that combines edge coverage with a rounded contact section for projects needing added cushioning around equipment edges and interfaces.
LEARN MORE

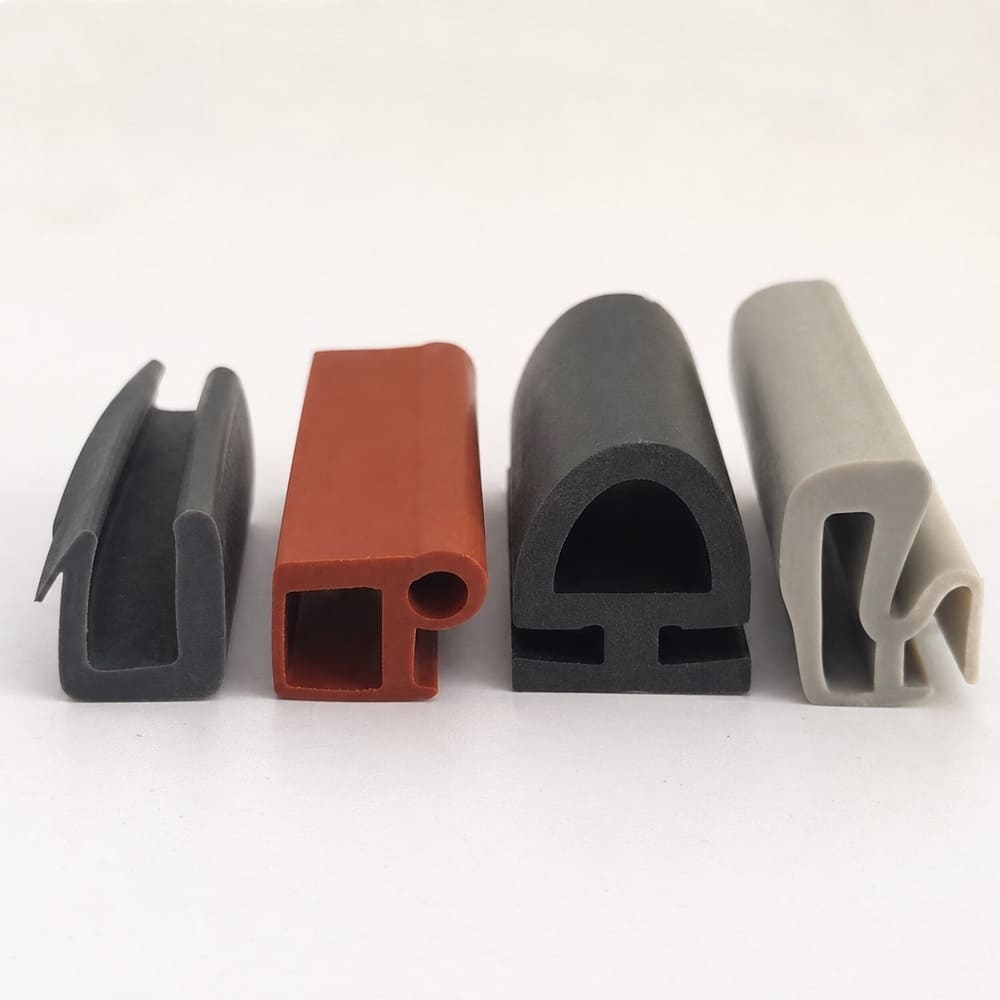

Custom Cross-Section Silicone Edge Trim
A drawing-based silicone extrusion for non-standard edge geometries, specialized equipment housings, and OEM assemblies with unique fit requirements.
LEARN MORESilicone Edge Trim Selection Guide
Choose the right silicone edge trim in 7 quick steps. The correct trim depends on how it's used, what edge it grips, and whether it needs to seal. Work through the steps below and you'll walk away with a complete, quote-ready specification.
-
Step 1
Start With Function
Protection Only, or Protection + SealingThis decision shapes the entire profile. Choose a plain U-channel trim if you only need to protect exposed edges and prevent sharp-edge injury or abrasion. Choose a profile with a sealing lip or bulb if your door, hatch, or enclosure also needs to keep out dust and moisture.
Get this right first -- every other spec depends on it. -
Step 2
Match the Clamping Range to Your Edge Thickness
Edge trim grips by clamping onto a panel or flange, so the clamping range must match your actual edge thickness. Too wide and it won't hold; too narrow and it won't fit or will over-stress the trim.
Measure your edge preciselyProfiles that look identical often come in several clamping ranges -
Step 3
Choose the Metal Core
Wire Core vs. Segmented Steel CoreSilicone is soft, so an internal metal core provides the gripping force. Choose based on whether your application prioritizes holding force or the ability to follow bends.
Continuous Wire CoreGrips more tightly. Best for straight runs where maximum holding force is the priority. Resists tight bends.
Segmented Steel CoreFlexes around complex curves and corners with slightly less grip. Ideal for curved panels and compound profiles.
-
Step 4
Confirm the Bending Radius
How tightly the trim can wrap a corner without lifting or wrinkling depends on the profile size and core type. If your application has tight corners or compound curves, verify the minimum bending radius up front so the trim seats cleanly.
Tight corners or compound curves require upfront bending radius verification -
Step 5
Select Your Hardness
Durometer / Shore ASofter silicone compresses well for better sealing contact; harder silicone resists impact and deformation. Silicone edge trim commonly runs around 60 Shore A ±5.
Sealing ProfilesChoose softer material. Target 30-40% compression. Never exceed 50%.
Impact ProtectionA firmer grade resists deformation and absorbs mechanical impact effectively.
Typical hardness: 60 Shore A ±5 -
Step 6
Match Temperature Range and Compliance Grade
Silicone's wide operating window and compliance options are its core value. Silicone typically performs from approx. -60°C to 220°C -- well beyond EPDM or PVC. For food, medical, or hygienic environments, choose the appropriate certified grade.
-70°C to 300°C operating rangeFDA 21 CFR 177.2600 / USP Class VI available -
Step 7
Specify Color, Surface Finish, and Installation Method
Color can serve identification or appearance -- white/translucent is common in food settings for visual contamination detection. The surface can be smooth or textured.
Self-Gripping InstallationPresses on with no adhesive required. The metal core provides clamping force directly.
Adhesive-Backed InstallationButyl or hot-melt adhesive backing for smooth edges or high-hold applications. Confirm with us -- silicone's low surface energy makes bonding demanding.
Not sure where to start?
Tell us your edge thickness, whether you need sealing, your corner radius, and your operating environment -- and Pandasoft will recommend the exact profile, clamping range, core, hardness, and grade for you.
- Edge thickness measurement
- Sealing requirement (yes/no)
- Corner radius / bending needs
- Operating environment & temperature
Engineering Support Backed by
a Scalable Silicone Factory
Pandasoft is a factory-direct B2B OEM and ODM silicone products manufacturer supporting custom development, qualified trial orders, and bulk production.
Factory at a Glance
- Experience
- 7+ Years in silicone manufacturing
- Production Space
- 16,000+ sqm facility
- Workforce
- 110+ Workers and support staff
- Production Lines
- 9 Assembly lines
- Monthly Capacity
- 500K - 1.2M pcs factory-wide
Certifications & Compliance
Quality System
Material & Compliance
Relevant Capabilities

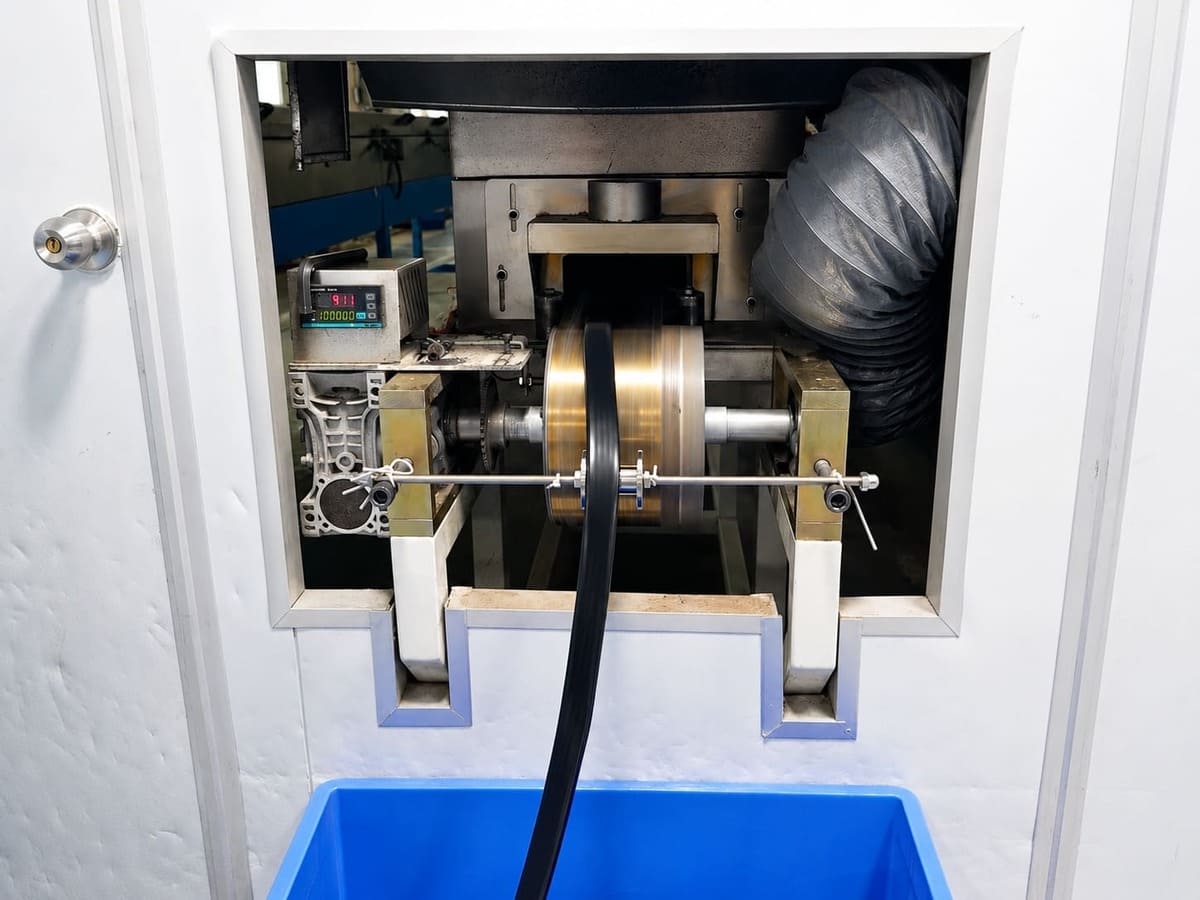

- Silicone extrusion
- DFM & CPK reports
- Polymer material evaluation
- 2D & 3D CAD support
- CNC & EDM mold processing
- Pantone color matching
Production-line and monthly-capacity figures represent Pandasoft's overall factory capabilities and are not dedicated to any single product category.

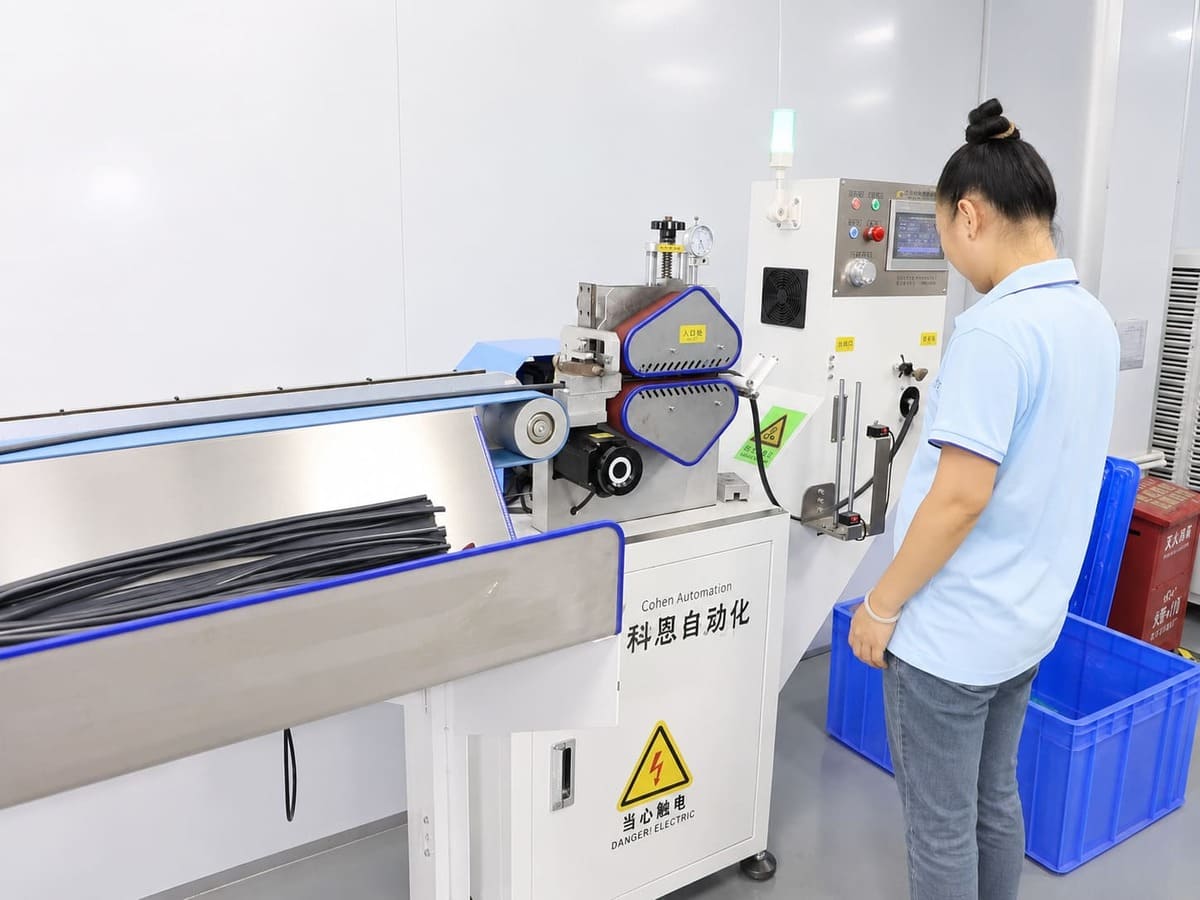

Quality Testing for
Custom Industrial Silicone Parts
Every custom industrial silicone order follows controlled quality checks, covering raw material testing, dimensional inspection, hardness testing, mechanical performance tests, in-process inspection, final inspection, and compliance support for industrial applications.
Dimension Inspection

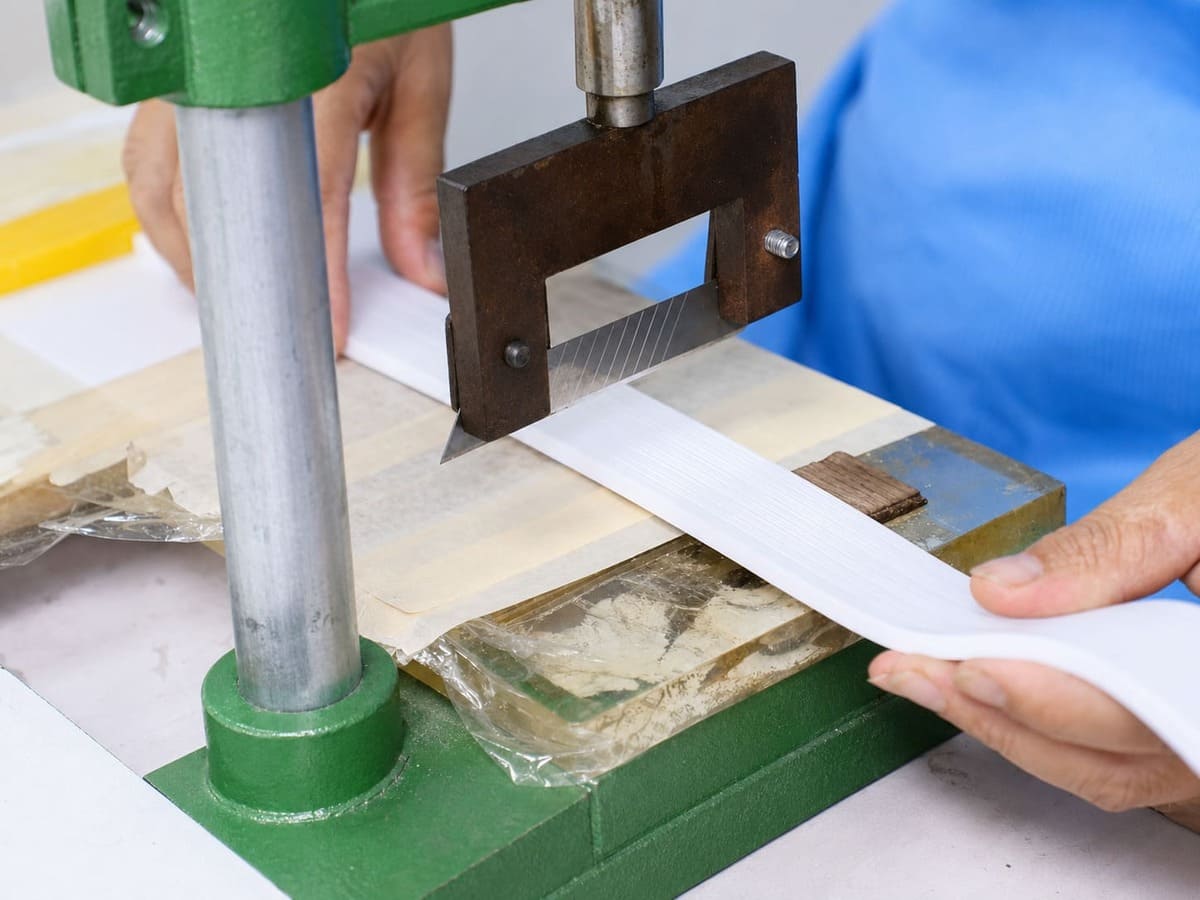

Shore A Hardness Testing
Tensile Strength Testing
Tear Strength Testing
Compression Set Testing
Heat Aging Testing
Color Difference Testing
Visual Defect Inspection
Lock the Approved Standard
Before Mass Production
Pandasoft uses defined inspection gates to carry the agreed sample and project requirements into mass production.

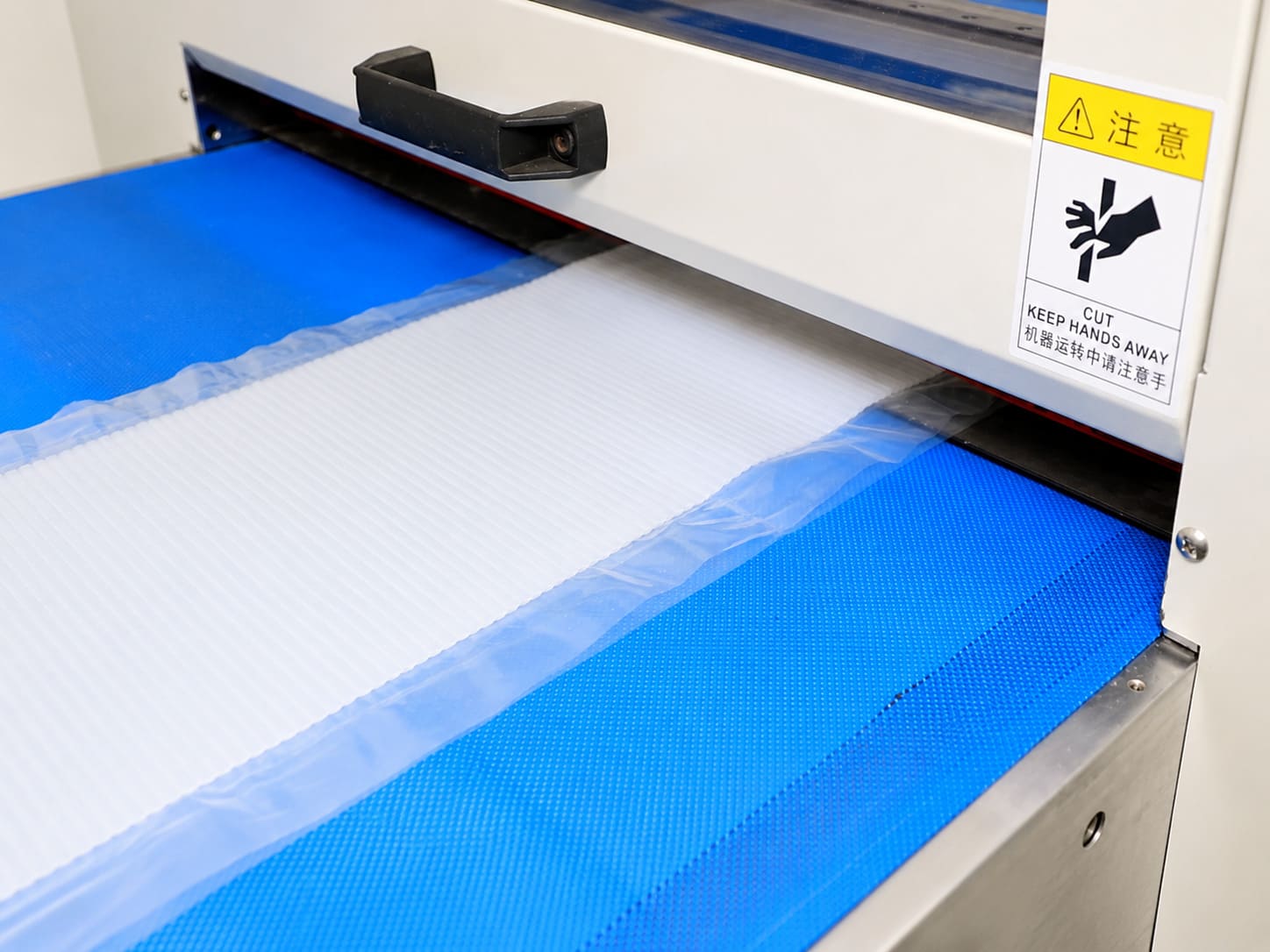

Quality Gate One
Material Entry Control
Raw-material testing and IQC help confirm that incoming materials meet the defined project requirements before production.

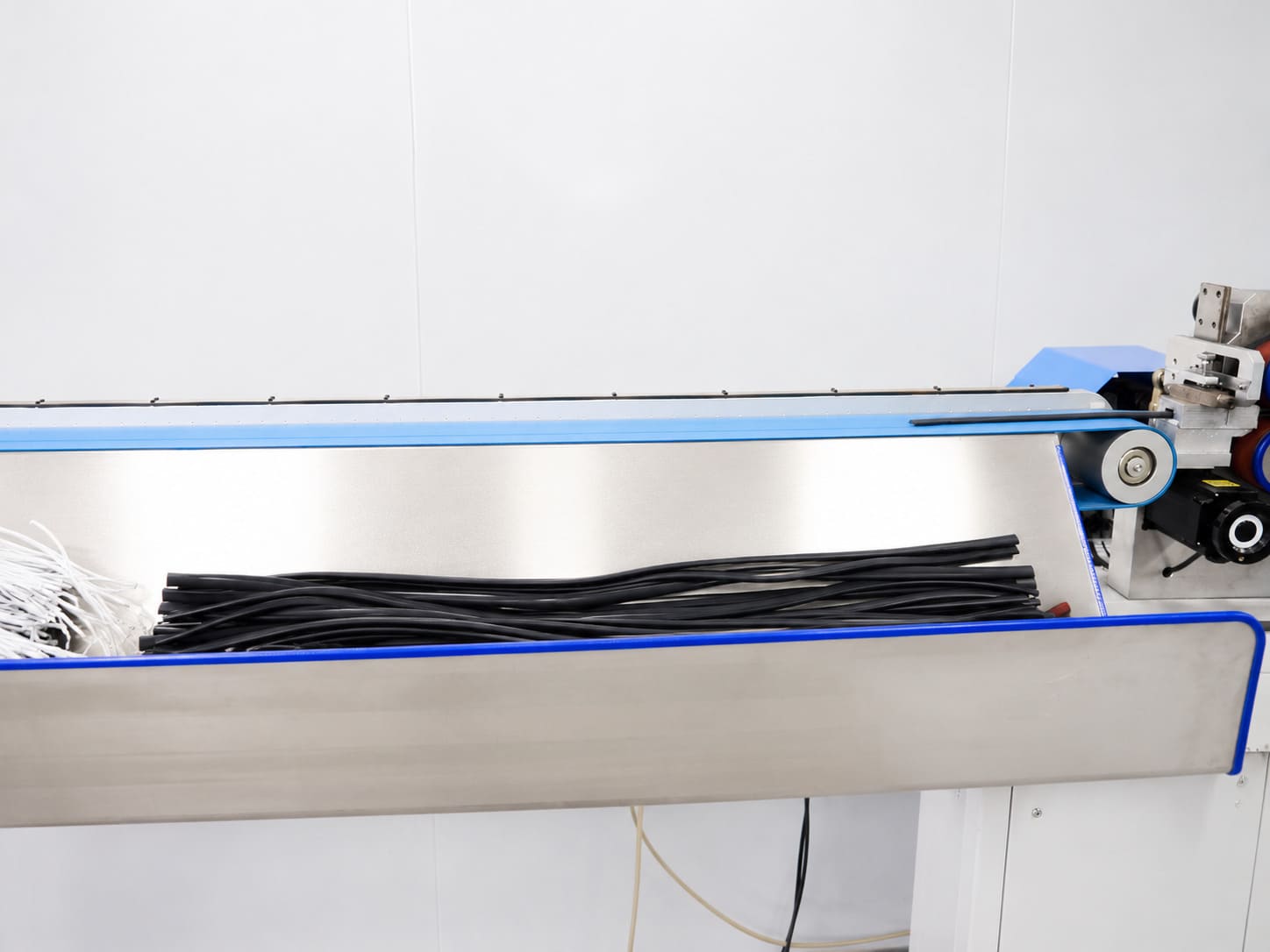

Quality Gate Two
Sample and First-Article Approval
A signed sample establishes the agreed reference. First-article inspection confirms the production setup before full batch production proceeds.

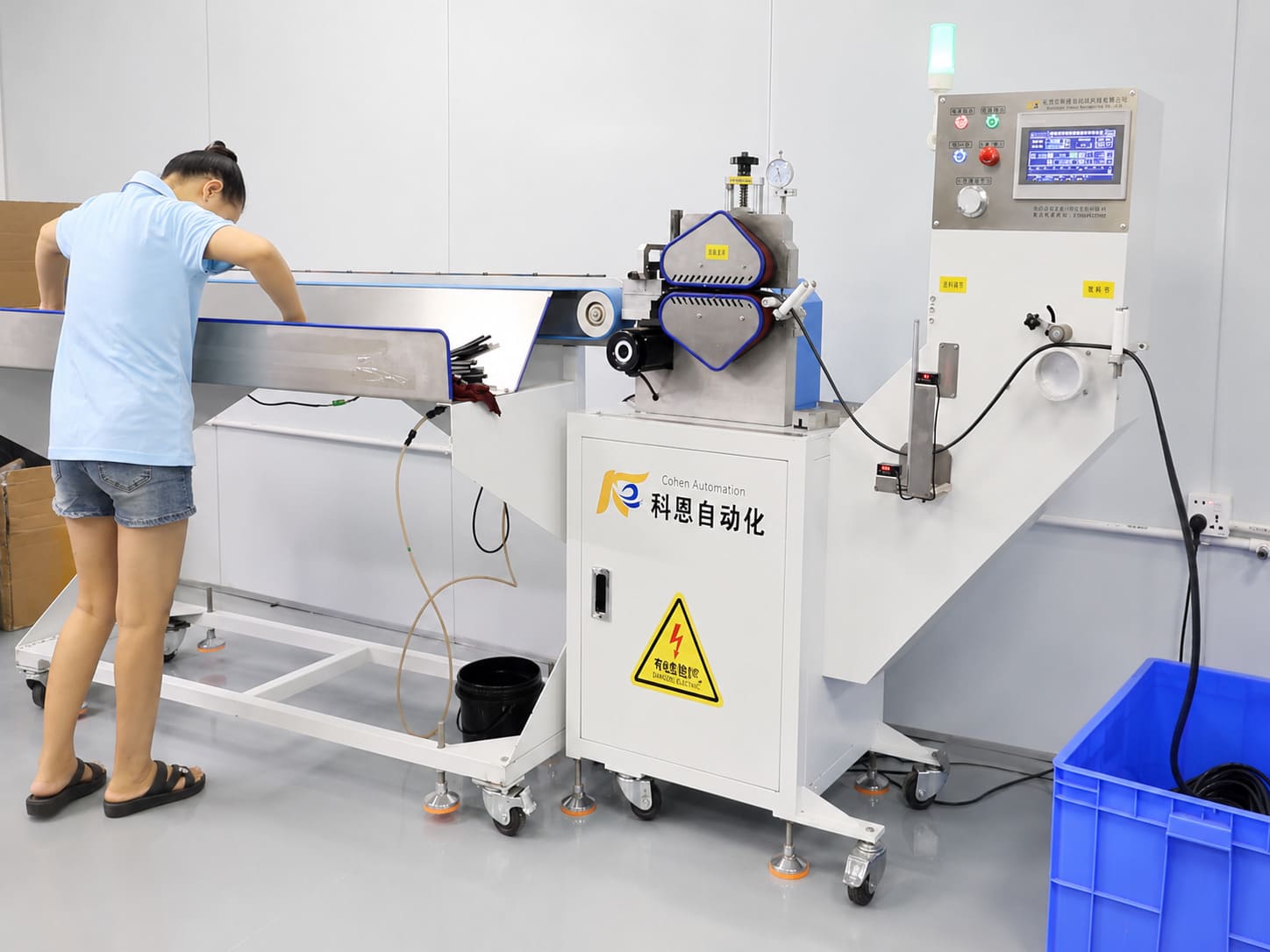

Quality Gate Three
In-Process Control
IPQC and mass-production inspection monitor the agreed production requirements during manufacturing. AOI may be applied when suitable for the project.

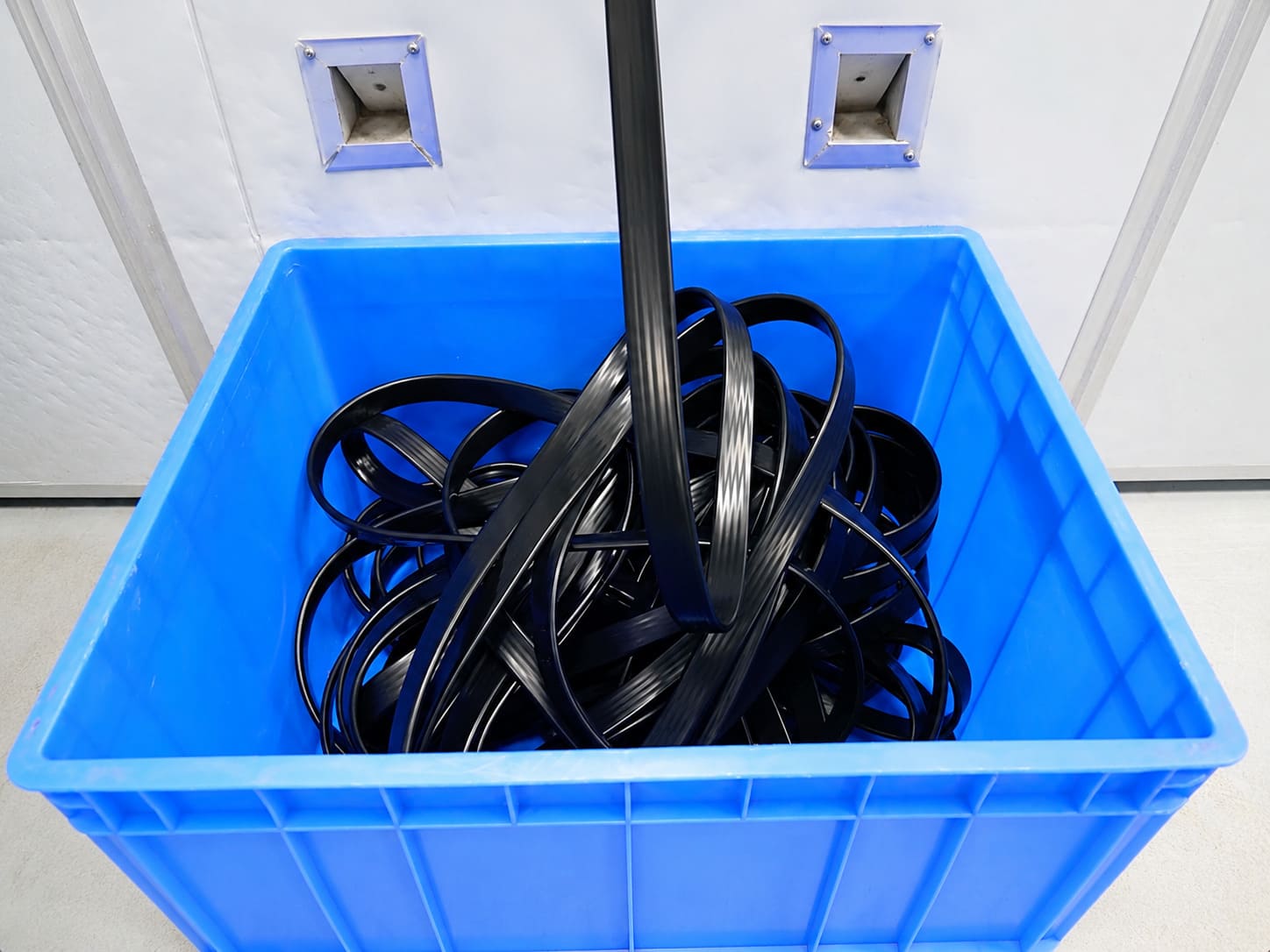

Quality Gate Four
Final Release
Final inspection, sales random inspection, and AQL 2.5 / 4.0 release criteria provide the final quality checkpoint before shipment.
The goal is to prevent an approved sample from becoming a different product during mass production.
What Sets Pandasoft
Silicone Edge Trim Apart
Not all silicone edge trim is equal. Here's where a generic or poorly matched supplier lets you down -- and how Pandasoft prevents it.
| What Matters |
Generic / Poorly Matched Supplier
|
The Pandasoft Way
|
|---|---|---|
|
Clamping Range Fit
|
Offers stock sizes only, without checking your actual panel thickness -- trim ends up too loose and falls off, or too tight to fit |
We have you caliper-measure your edge thickness, then match the exact clamping range or customize the opening for a first-time fit |
|
Grip & Retention
|
Soft silicone with weak bite, no core or adhesive -- the trim slips, lifts, and falls off |
Embedded wire or segmented steel core, plus butyl or hot-melt adhesive backing, for a hold that stays put |
|
Cornering
|
One core type only -- buckles and lifts around tight bends |
Wire core or segmented steel core matched to your bend radius, so it seats cleanly even on compound curves |
|
Protection + Sealing
|
Plain U-channel only -- can't deliver, or can't get right, a sealing lip or bulb |
Custom lip/bulb profiles built to your drawing, with compression tuned to the ideal 30-40% |
|
Cut & End Quality
|
Hand-cut ends get crimped, frayed, and deformed; segmented cores crush if cut in the wrong spot |
Precision saw fabrication for clean, square ends that don't pinch the profile -- delivered cut-to-length |
|
Verifiable Compliance
|
Claims "food grade" but can't back it up |
FDA 21 CFR 177.2600 / USP Class VI grades with clear, documented certification
FDA 21 CFR 177.2600
USP Class VI
|
ISO 9001:2015 & IATF 16949 Certified Factory
Every claim above is backed by documented process, not a sales pitch.
A Clear Project Route With Defined Approval Gates
Submit Project Requirements
Send the profile drawing, protected-edge information, critical dimensions, application, material requirements, color, compliance needs, and expected quantity.
Engineering Review
Pandasoft evaluates the cross-section, material direction, tolerance requirements, available files, tooling route, and project feasibility.
Tooling Development When Required
15-20 DaysNew mold development generally takes 15-20 days when a new custom mold is required.
Sample Delivery and Approval
6-8 Days ExpressSamples are delivered for evaluation and signed approval. Express delivery generally takes 6-8 days.
The sample preparation schedule is confirmed separately after engineering review.
Mass Production
2-4 WeeksMass production generally takes 2-4 weeks after sample approval, depending on the confirmed project requirements.
Final Inspection and Shipment
The batch proceeds through final inspection and the agreed release requirements before shipment.
MOQ Policy
- Existing-mold projects: generally from 500 pcs.
- New custom-mold projects: generally 500-1,000 pcs, depending on part size, structure, material, and mold requirements.
- Qualified trial orders are supported for B2B buyers.
The final MOQ and order unit for Custom Silicone Edge Trim are confirmed after project review.
Packaging
Custom packaging MOQ starts from 1,000 pcs when required.
Payment Terms
After order confirmation
Before shipment
Standard payment term applies. Terms confirmed at order stage.
Frequently Asked Questions
Questions Before Starting a Custom Silicone Edge Trim Project.
What information should I send for an Edge Trim quotation?
Can you evaluate a project if my drawing is incomplete?
How do you determine whether an existing mold or new custom mold is required?
How do you select the silicone material and hardness?
What is the MOQ for Custom Silicone Edge Trim?
How long does a custom project take?
Can every Edge Trim project achieve a tolerance of ±0.05 mm?
Do you support REACH, RoHS, and flame-retardant requirements?
How do you control consistency between samples and mass production?
Do you support trial orders?
